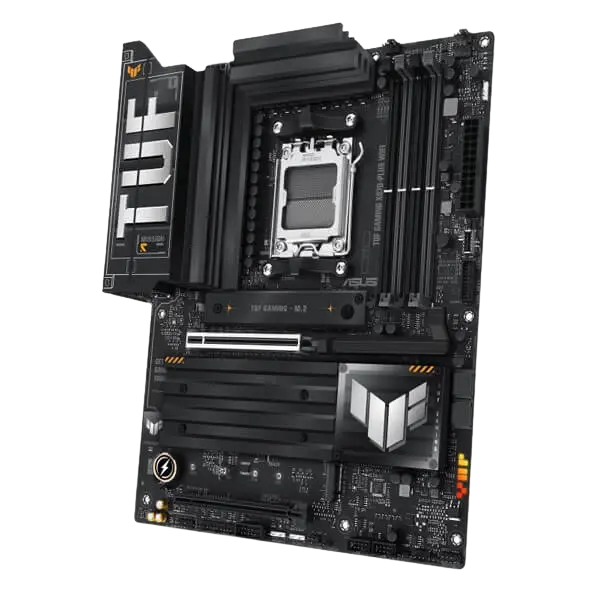

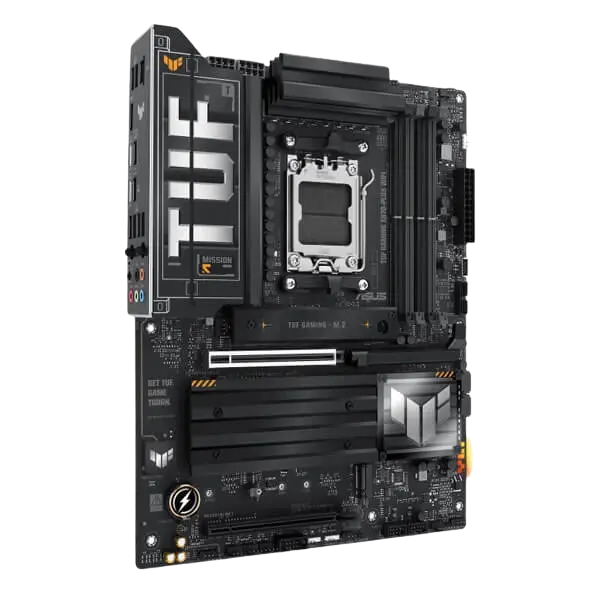

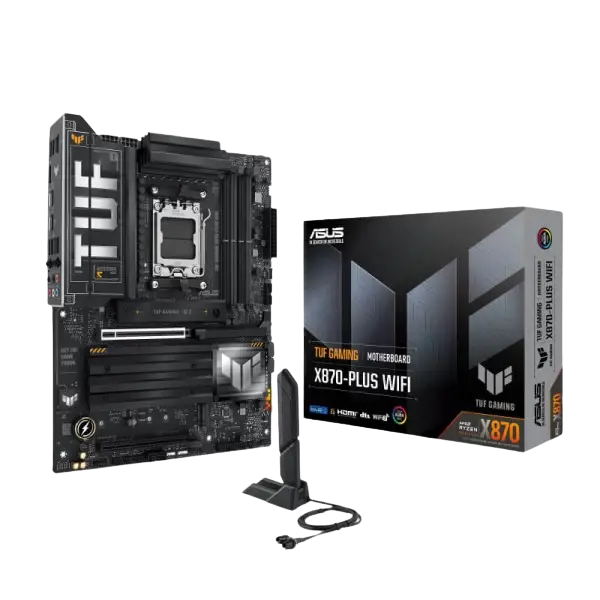

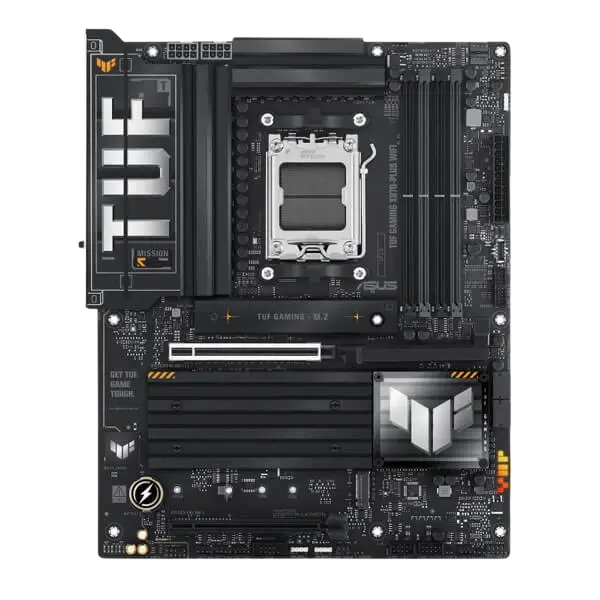

ASUS TUF GAMING X870-PLUS WIFI DDR5 MOTHERBOARD

ASUS TUF GAMING X870-PLUS WIFI DDR5 MOTHERBOARD

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Complete AI Solution

ASUS AI Solutions – including AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart overclocking, efficient cooling and new levels of ultrafast connectivity.

AI Overclocking

Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II

Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II

Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

DYNAMIC OC SWITCHER

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and

Precision Boost Overdrive

for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.​

CORE FLEX

Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

DDR5 DOMINANCE

For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

PCIe 5.0 for Graphics Card​

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

USB4

^®

40Gbps Type-C

^®

Port

Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C

^®

This motherboard features a USB 20Gbps Type-C

^®

front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging.

PCIe Slot Q-Release

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

Realtek 7.1 Channel Audio

ALC1220P

This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING

When only the fastest will do, TUF Gaming X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking

¹

capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe

^®

5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an TUF Gaming X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.​
