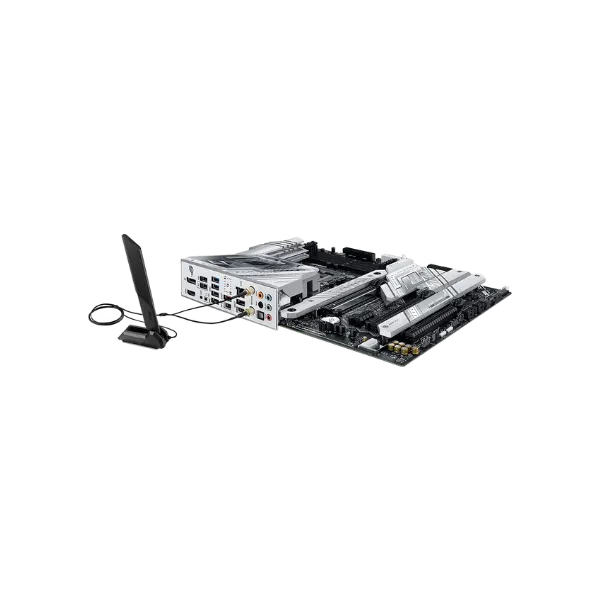

ASUS ROG STRIX Z790-A GAMING WIFI D4 Motherboard

(Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory support, four M.2 slots, PCIe® 5.0 x16 SafeSlot with Q-Release, WiFi 6E, USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting)

About this item

  • Supports Intel 13th & 12th Gen Processors
  • Two-Way AI Noise Cancelation
  • AI Cooling II/span>
  • Bluetooth v5.3
  • Wi-Fi 6E
[dsalv]

37,665.00

Incl Tax

Availability: In stock

Buy Now

Availability: In stock

Buy Now
Product Page Icons

 [wcsp_cross_sell]

MPN: ITGO21761 SKU : ASUS ROG-STRIX-Z790A-GAMING WIFI D4 Category :

Asus

Authorized Dealer

ASUS ROG STRIX Z790-A GAMING WIFI D4 Motherboard

Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 13th Gen Core processors. PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board’s fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

LEADING CONNECTIVITY

The ROG Strix Z790-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about ASUS WiFi 6E

2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

UNDENIABLY ROG STRIX

The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board’s high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.​

Brand

ASUS

Compaitability

Intel

CPU Socket Type

LGA 1700

CPU Type Support

12th Gen Intel Core / Pentium Gold / Celeron Processors, 13th Gen Intel Core Processors

Chipset

Intel Z790

Number of Memory Slots

4 x DIMM

Maximum Memory Supported

128GB

Memory Type Supported

DDR4

Channel Supported

Dual Channel

Expansion Slots

1 x PCIe 5.0 x16 slots, 2 x PCIe 4.0 x16 slots (support x4/x4 mode)

Storage Supported

4 x M.2 slots, 4 x SATA 6Gb/s ports

Ethernet Lan Chipset

1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wifi Type

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Wi-Fi 6E

Bluetooth Type

Bluetooth v5.3

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

I/O (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

I/O (Rear)

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

OS Supported

Windows 10 64-bit, Windows 11 64-bit

Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ), ATX Form Factor

Warranty

3 Years
