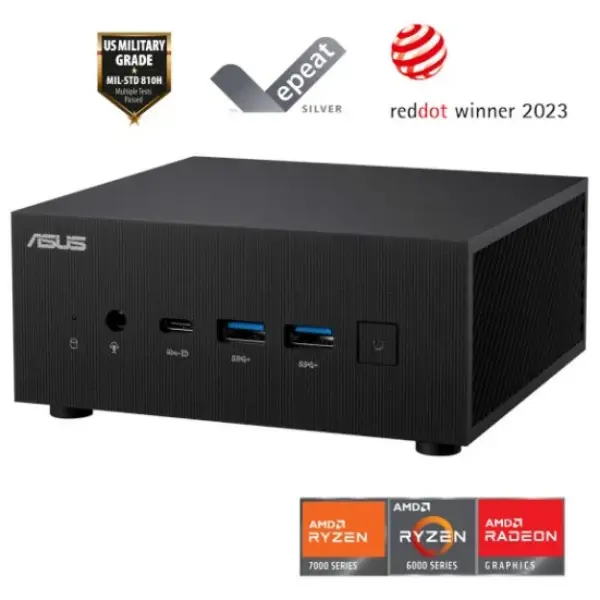

ASUS ExpertCenter PN53 Ultra-compact Mini PC with AMD Ryzen 7 7730U Processor (16GB Ram | 256 GB Nvme SSD | Windows 11 | Prebuilt Mini PC)
ASUS ExpertCenter PN53 Ultra-compact Mini PC with AMD Ryzen 7 7730U Processor (8 Cores, 16 Threads, 4.5GHz, 20MB Cache, AMD Radeon Graphics) with Dual DDR4 RAM Slots, Dual USB 4 Type-C, 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.2
- Powered by the latest AMD Ryzen™ 7000U Series Processor with Radeon™ graphics
- Quad-4K displays support via including configurable port
- Support 6 USB ports, including two Type C ports, on-board HDMI and configurable port
- Multi-storage design, support up to up to 1x M.2 PCIe® Gen3x4 SSD and 1x HDD
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
- Configurable Ports support DP1.4/VGA/COM/LAN options
- 24/7 reliability — Extensively tested to ensure long-term dependability
Specifications
| Model Name | ASUS ExpertCenter PN53-S1(Barebone) |
| CPU | AMD Ryzen™ 7 7730U Processor, 15W TDP |
| RAM Support | 16GB DDR4-3200 SO-DIMM x 2 |
| Storage Support | 256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD+ 1TB 2.5″ SATA HDD |
| Graphics | Integrated |
| Wireless Data Network | Wi-Fi 6E (Gig+), Bluetooth® 5.4 (Barebone SKU) |
| LAN | 10/100/1000/2500 Mbps,2.5G Ethernet |
| Audio | NA |
| Front(Side) I/O Ports | 1 x USB 3.2 Gen2 Type-C (with DP1.4, 5V/3A, 10Gbps) 2 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) 1 x Kensington Lock slot(side) |
| Back I/O Ports | 1 x USB 3.2 Gen2 Type-C (with DP1.4 output) 2 x USB 3.2 Gen2 Type-A 1 x HDMI 2.1 (Up to 4K@60Hz) 1 x Configurable Port 1 x 2.5G RJ45 LAN 1 x DC-in |
| Power Supply | 19Vdc, 4.74A, 90W Power Adapter |
| Dimensions (W x D x H) | 115 x 115 x 49 mm |
| Weight | 0.55 kg(barebone) |
| Color | Black |
| Accessories | AC Adapter Driver DVD (non OS SKU only) Power Cord Screw Pack User Manual Warranty Card Keyboard & Mouse (optional) VESA Mount (optional) |
| Warranty | 3 Years |
