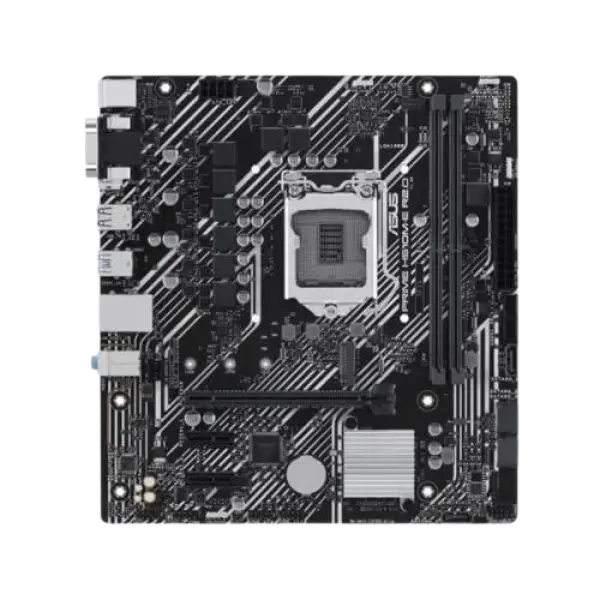

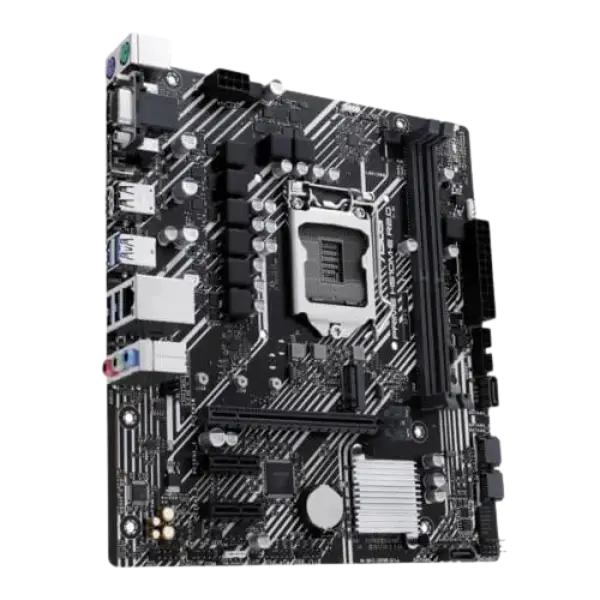

Asus Prime H510M-E R2.0 DDR4 Motherboard
-
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
-
- Comprehensive cooling: PCH heatsink and Fan Xpert
-
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
-
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips,
-
- easily synced with Aura Sync-capable hardware
-
- 5X Protection III: Multiple hardware safeguards for all-round protection
COOLING
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Brand |
ASUS |
Compaitability |
Intel |
Chipset |
Intel H510 |
Number of Memory Slots |
2 x DIMM |
Maximum Memory Supported |
64GB |
Memory Type Supported |
DDR4 |
Channel Supported |
Dual Channel |
Ethernet Lan Chipset |
1 x Realtek 1Gb Ethernet |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
INTERNAL I/O CONNECTORS |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
Form Factor |
micro-ATX Form Factor |
Operating System |
Windows® 10 64-bit |
Warranty |
3 Years |
