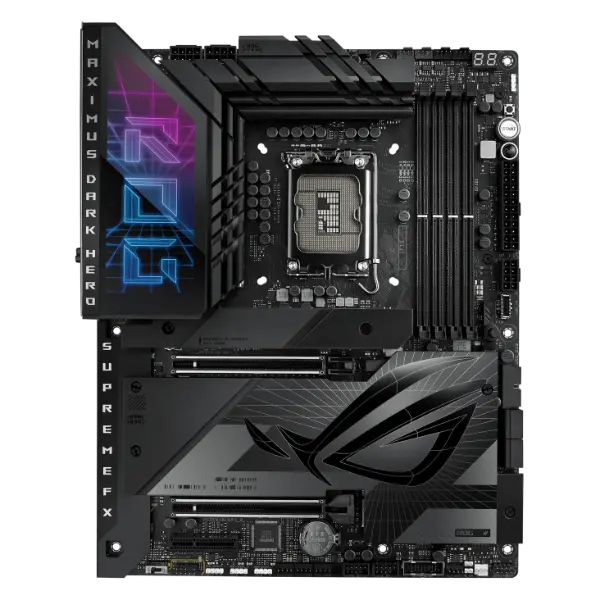

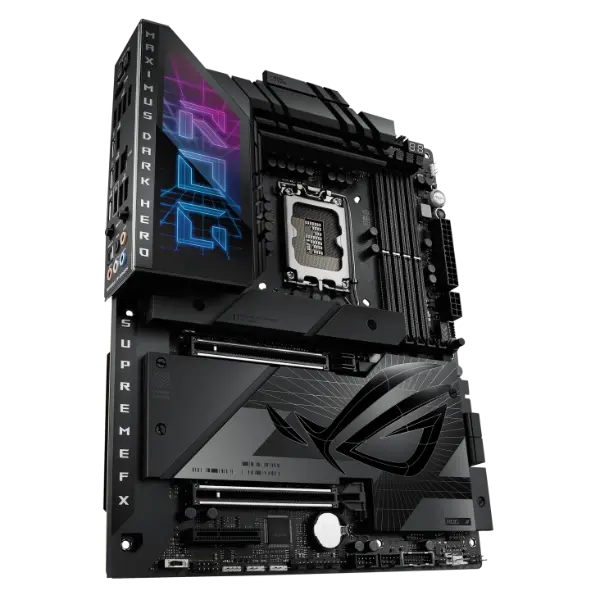

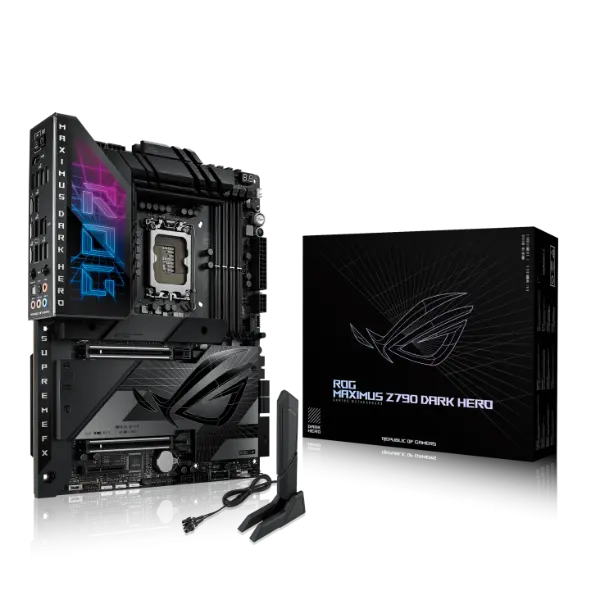

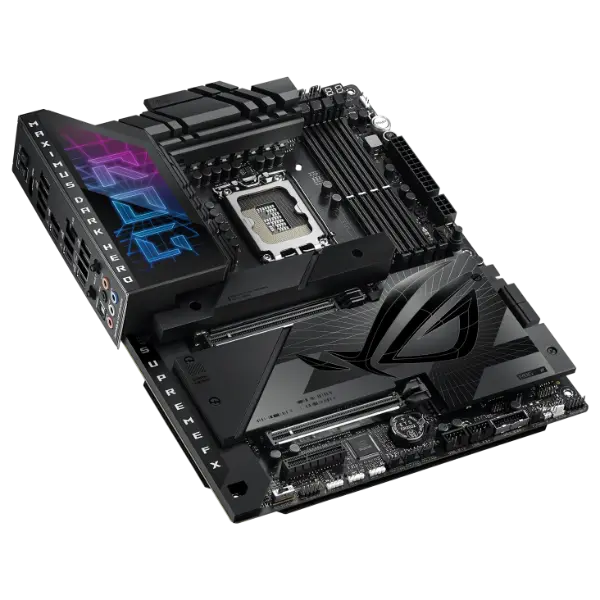

ASUS ROG MAXIMUS Z790 DARK HERO DDR5 Motherboard
The ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7, and an ample PCIe 5.0 slot for unmatched performance. It offers full compatibility with 14th-generation Intel® Core™ processors. Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalised touch of style to your gaming setup.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn’t ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z790 Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
WIFI 7
The next-gen WiFi 7* chipset introduces an all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4x ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial Iot.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
GROW YOUR GAMING WORLD WITH AURA SYNC
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronised across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Brand |
ASUS |
Compaitability |
Intel |
CPU Type Support |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipset |
Intel® Z790 Chipset |
Number of Memory Slots |
4 x DIMM |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |
2 x PCIe 5.0 x16 slots |
Storage Supported |
supports 5 x M.2 slots and 4 x SATA 6Gb/s ports |
Ethernet Cable Support |
yes |
Ethernet LAN Chipset |
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
Audio |
ROG Supremefx 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 db SNR stereo playback output and 110 db SNR recording input – Supports up to 32-bit/384 kHz playback Audio Features – Supremefx Shielding Technology – ESS® ES9218 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
Special Features |
Extreme OC Kit – FlexKey button – Retry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s) Front Panel USB 20G with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60w, please install the power cable to the 8-pin PCIe power connector or else only 27w will be supported. |
OS Supported |
Windows 10 64-bit, Windows 11 64-bit |
Warranty |
3 Years |
