MasterLiquid 360 Core II
Innovative design
Dual chamber pump
Optimum tubing length
Revamped fans
Updated CPU compatibility
Easy installation
Included Cryo-Fuze thermal paste

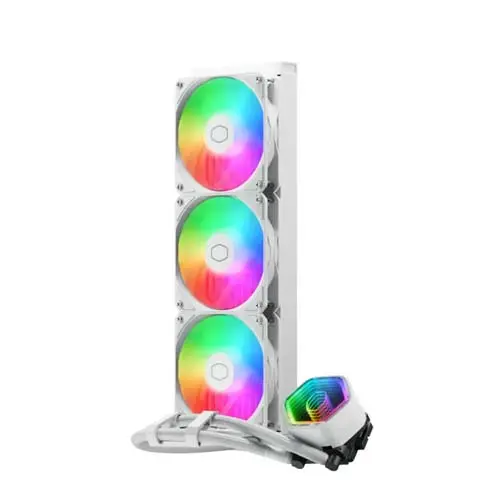

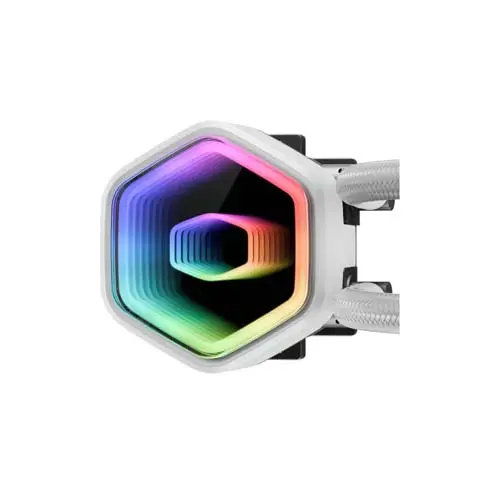

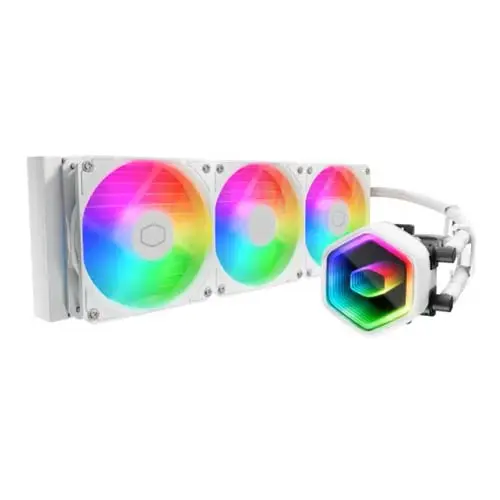

Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid 360 Core II. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid 360 Core II
Specification
Product Name | MasterLiquid 360 Core II White |
Product Number | MLW-D36M-A18PA-RW |
Exterior Color | White |
CPU Socket | Intel LGA 1851 / 1700 /1200 /1151 / 1150 /1155 /1156 SocketAMD AM5 / AM4 Socket |
Waterblock Dimension | 83 x 76.2 x 52.3 mm |
Radiator Material | Aluminum |
Radiator Dimensions | 394 x 119.2 x 27.2 mm(15.5 x 4.7 x 1.1 inch) |
Tube Length | 400 mm (15.75 inch) |
Pump Dimension | 83 x 76.2 x 52.3 mm(3.3 x 3 x 2.1 inch) |
Pump Profile | Addressable RGB |
Pump Speed | 3100 ± 300 RPM |
Pump MTTF | >50,000 Hours |
Pump Noise Level | 25 dB(A) |
Pump Connector | 3-Pin |
Pump Rated Voltage | 12 VDC |
Pump Power Consumption | 3.6W |
Fan Dimensions (L x W x H) | 120 x 120 x 25 mm(4.7 x 4.7 x 1 inch) |
Fan Quantity | 3 PCS |
Fan LED Type | Addressable RGB |
Fan Speed | 650-1750 RPM ± 10% |
Fan Airflow | 120 m3/h (70.5 CFM) |
Fan Noise Level | 30 dB(A) |
Fan Pressure | 2 mmH₂O (Max) |
Fan Bearing Type | Sleeve Bearing |
Fan MTTF | >160,000 Hours |
Fan Connector | 7-Pin (PWM+ARGB) |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.23A |
Fan Safety Current | 0.45A |
Power Consumption | 2.76W |
Warranty | 5 Years |
