COOLER MASTER MasterLiquid Atmos II Pixel LED ARGB CPU Liquid Cooler ( White )

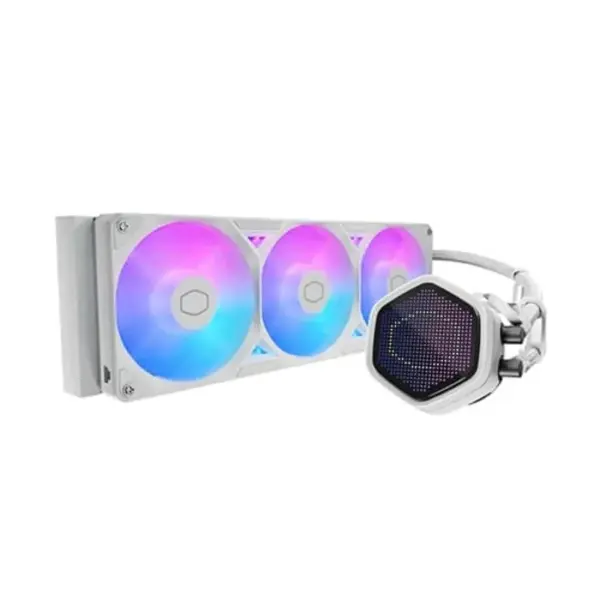

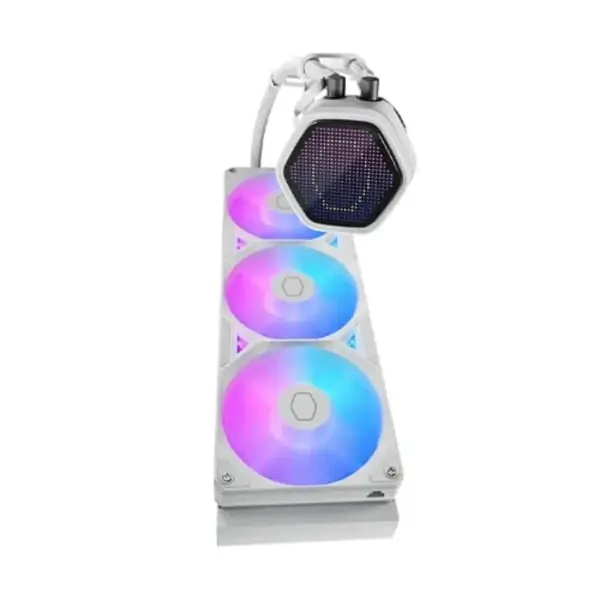

Cooler Master MasterLiquid Atmos II PIXEL LED
- Pixel panel for enhanced personalization
- SickleFlow Edge ARGB fans
- Ultra-low profile pump design
- Quick and easy installation
Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Tough. Reliable. Built to Endure.
Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions.
PRE-INSTALLED SICKLEFLOW EDGE ARGB FAN
High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics.
ULTRA-LOW PROFILE PUMP DESIGN
The flat design allows installation in cases of different sizes while maintaining strong performance.
QUICK AND EASY INSTALLATION
A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.
Offset Mounting Brackets for LGA 1851
Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851, which precisely dissipate 4°C of heat from the center of the CPU.
Specification
| Product Name | MasterLiquid Atmos II Pixel LED |
| Product Number | MLX-D36M-A25SZ-PW |
| Exterior Color | White |
| CPU Socket | Intel®LGA1700,LGA1851,LGA1200,LGA1156,LGA1155,LGA1151,LGA1150,AM5,AM4 |
| Waterblock Dimension | 83 x 76.2 x 52.3 mm |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch) |
| Tube Length | 400 mm |
| Pump Dimension | 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch) |
| Pump Profile | Addressable Gen2 RGB |
| Pump Speed | 3400 ± 300 RPM |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 7.2 W |
| Fan Dimensions (L x W x H) | 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch) |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable RGB |
| Fan Speed | 650 ~ 1750 RPM ±10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) (Max) |
| Fan Noise Level | 38.5 dB(A) |
| Fan Pressure | 3.61 mmH2O |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan MTTF | >40,000 Hours |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.5 A |
| Fan Safety Current | 0.8 A |
| Power Consumption | 6 W |
| Warranty | 5 Years |
