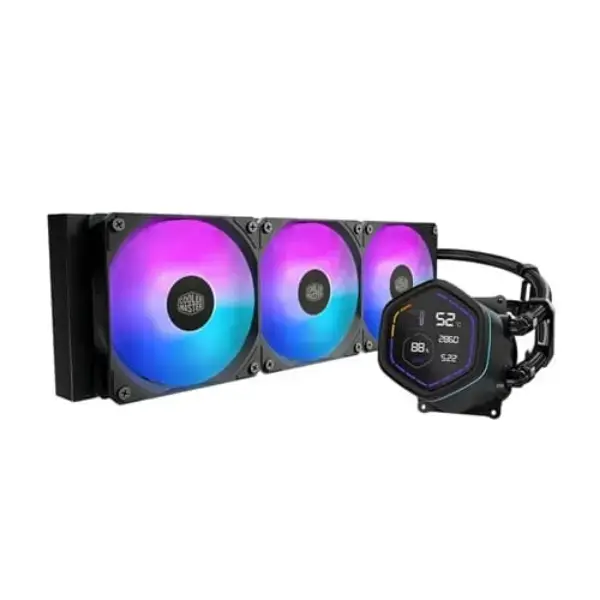

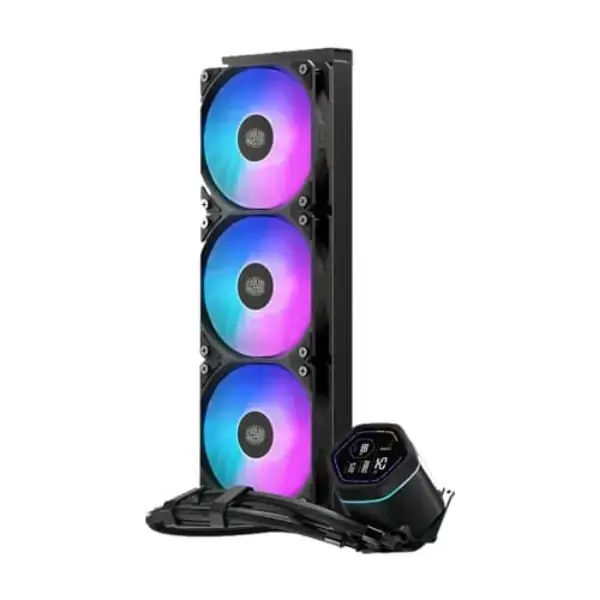

Cooler Master MASTERLIQUID Core NEX Digital 360 ARGB BLACK CPU Liquid Cooler
MASTERLIQUID CORE NEX DIGITAL SERIES
- Dual Chamber Pump
- Innovative, Smart Design
- Easy Installation
- Universal Socket Support
- Optimum Tubing Length
Experience next-level cooling with the MasterLiquid Core Nex Digital Series. Built for PC builders, gamers, and professionals, it delivers reliable cooling performance with quiet efficiency and a bold hexagonal digital display that merges form and function. The integrated digital panel provides real-time system insights, allowing you to monitor CPU usage, temperatures, fan and pump speeds through a clean, modern interface. With MasterCTRL software, you can easily customize and control your display setting. Combining dependable technology with sleek aesthetics, the MasterLiquid Core Nex Digital Series offers cooling that’s smart, stylish, and made for everyone.
INNOVATIVE, SMART DESIGN
Featuring a digital pump cover with real-time system stats and a bold hexagonal outer ring for instant CPU usage at a glance. Customize your display with our MasterCTRL software, which lets you easily adjust data sources. Whether it’s fans, pumps, CPU, or GPU, everything is under your control.
Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.
Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.
Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless
Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets
Specification
| Product Name | MasterLiquid Core Nex Digital |
| Product Number | MLX-D36M-A18PA-R1 |
| Exterior Color | Black |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 AMD® AM5 / AM4 |
| Waterblock Dimension | 83 x 76.2 x 52.3 mm |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch) |
| Tube Length | 400 mm |
| Pump Dimension | 83.6 x 78.5 x 62.9 mm (3.3 x 3.1 x 2.5 inch) |
| Pump Profile | Addressable RGB |
| Pump Speed | 2800 ±10% RPM |
| Pump MTTF | >35,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 7.2 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable RGB |
| Fan Speed | 650 ~ 1750 RPM ±10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) (Max) |
| Fan Noise Level | 27.2 dBA (Max) |
| Fan Pressure | 1.86 mmH₂O (Max) |
| Fan Bearing Type | Rifle Bearing |
| Fan MTTF | >40,000 Hours |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26 A |
| Fan Safety Current | 0.37 A |
| Power Consumption | 3.12W |
| Warranty | 5 Years |
