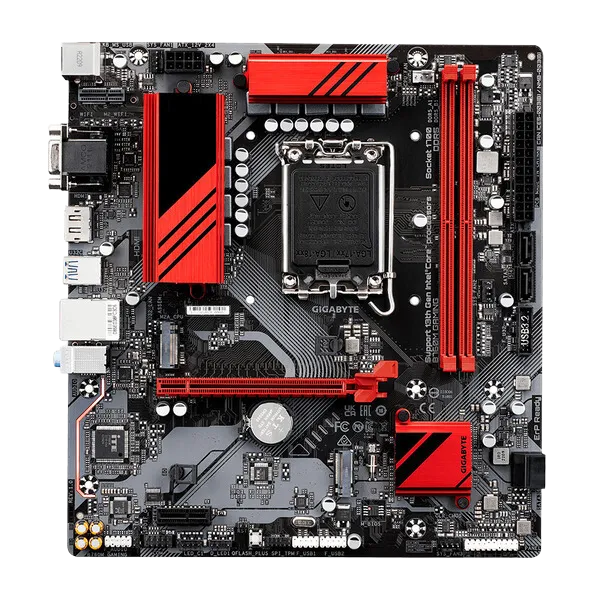

Gigabyte B760M Gaming DDR5 Motherboard
Hybrid Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.
Dual PCIe 4.0 x4 M.2
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
First adopter on 2.5GbE LAN onboard
2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
Brand |
Gigabyte |
Form Factor |
24.4cm x 22.5cm, Micro ATX |
CPU Type Support |
LGA1700, Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
Compaitability |
Intel |
Chipset |
Intel B760 Express Chipset |
Maximum Memory Supported |
96 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
Storage Supported |
4 x SATA 6Gb/s connectors |
USB Ports |
1 x USB Type-C® port on the back panel, 2 x USB 2.0/1.1 ports on the back panel, 5 x USB 3.2 Gen 1 ports |
HDMI |
1 x HDMI |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
Back Panel Connectors |

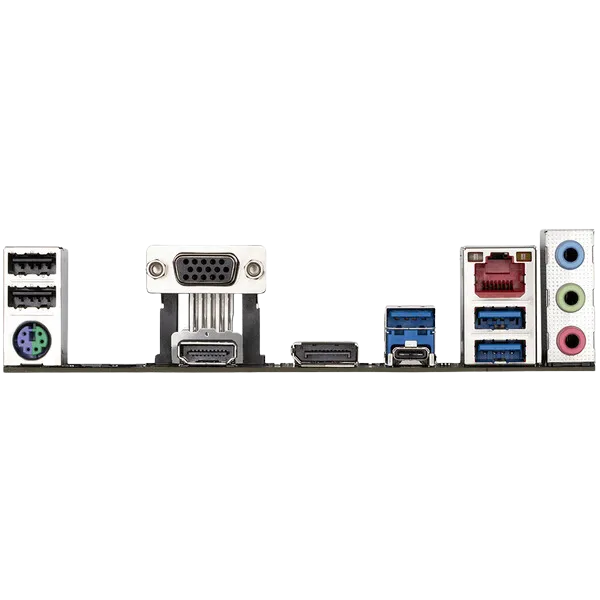

2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
I/O Controller |
iTE® I/O Controller Chip |
BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
OS Supported |
Windows 10 64-bit, Windows 11 64-bit |
Warranty |
3 Years |
