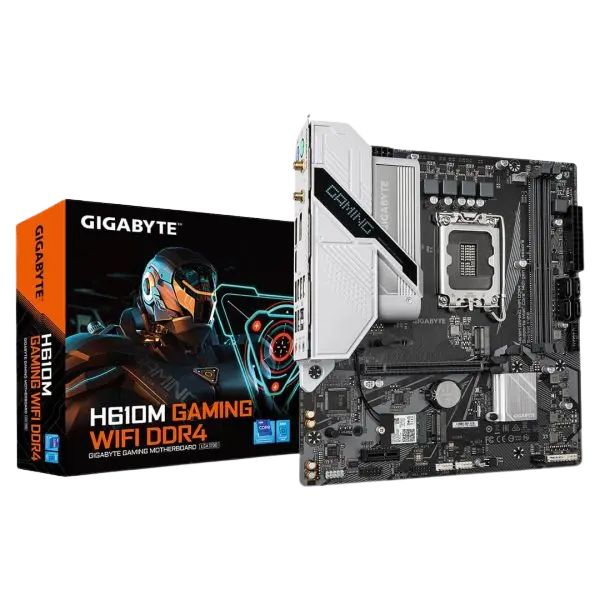

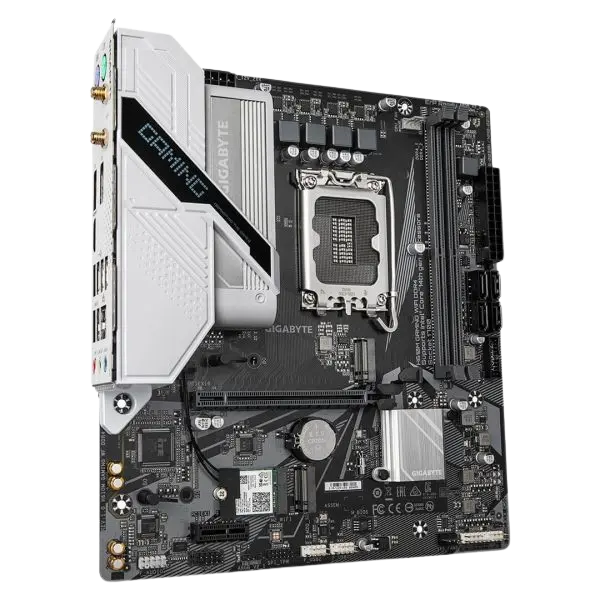

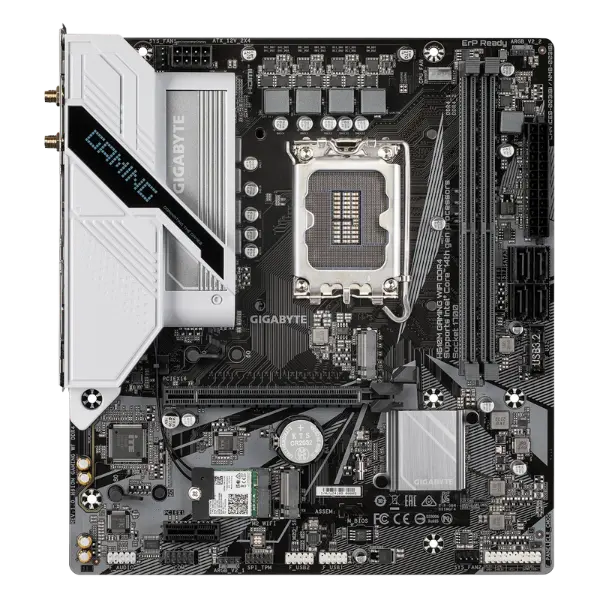

Gigabyte H610M Gaming WIFI DDR4 Motherboard
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components.
• 6+1+1 Phases digital PWM + Low RDS(on) MOSFETs
• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
Single 32GB Support
GIGABYTE H610 motherboard populates 2 memory DIMMs per channel with 32GB support per DIMM, and total memory capacity is 64GB. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Smart Fan 6
ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.
-
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to
-
- 24W (12V x 2A) with Over-Current Protection.
-
- Precision Control: Multiple temperature/fan speed control points for precise fan curve.
-
- Dual Curve Mode: Slope/Stair dual mode for different user scenario.
-
- Fan Stop: Fan can stop completely below users’ specified temperature point.
Smart Fan 6 BIOS UI
-
- Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
-
- Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
-
- Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
-
- EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
-
- Fan Curve Profile : Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.
Brand |
Gigabyte |
Compaitability |
Intel |
CPU Socket Type |
LGA1700 |
Chipset |
Intel H610 Express Chipset |
Number of Memory Slots |
2 x DDR4 DIMM sockets supporting up to 64 GB |
Channel Supported |
Dual Channel |
I/O Controller |
iTE® I/O Controller Chip |
Maximum Memory Supported |
64GB |
Memory Type Supported |
DDR4 |
Storage Supported |
4 x SATA 6Gb/s connectors |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 2 x addressable RGB Gen2 LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |

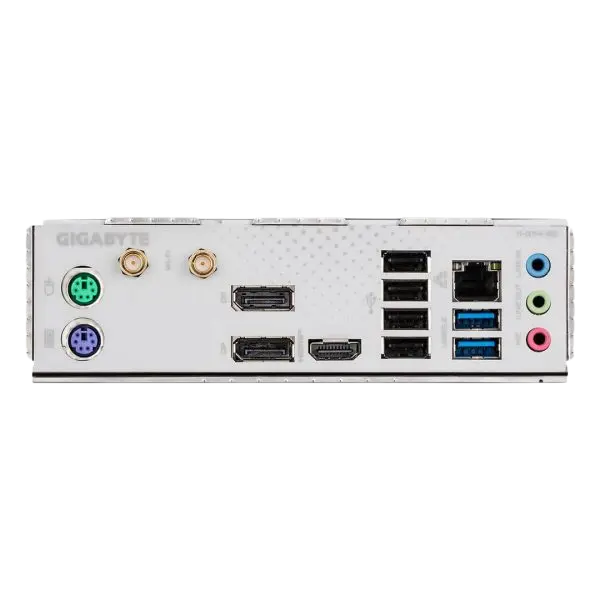

Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Warranty |
3 Years |
