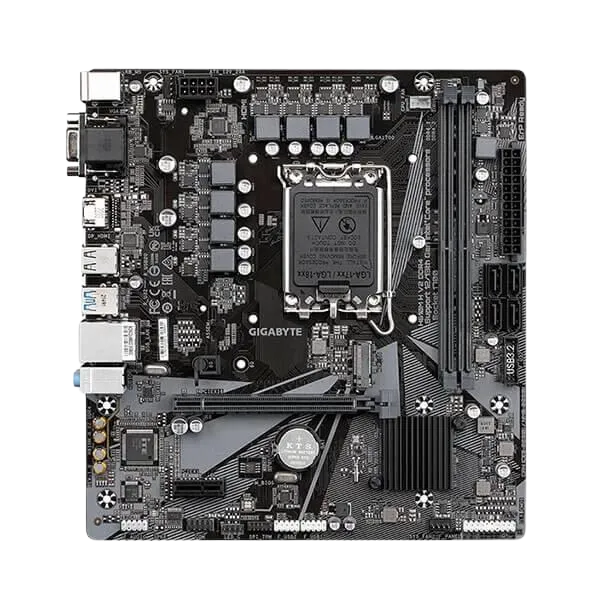

Gigabyte H610M H V2 DDR4 Motherboard
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Brand |
Gigabyte |
Form Factor |
Micro ATX Form Factor |
CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU |
Compaitability |
Intel |
Number of Memory Slots |
2 (DDR4) |
Chipset |
INTEL |
Maximum Memory Supported |
64GB |
Memory Type Supported |
DDR4 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
Storage Supported |
4 x SATA 6Gb/s |
USB Ports |
4 x USB 2.0/1.1 ports, 4 x USB 2.0/1.1 ports on the back panel, 4 x USB 3.2 Gen 1 ports |
I/O Controller |
iTE® I/O Controller Chip |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

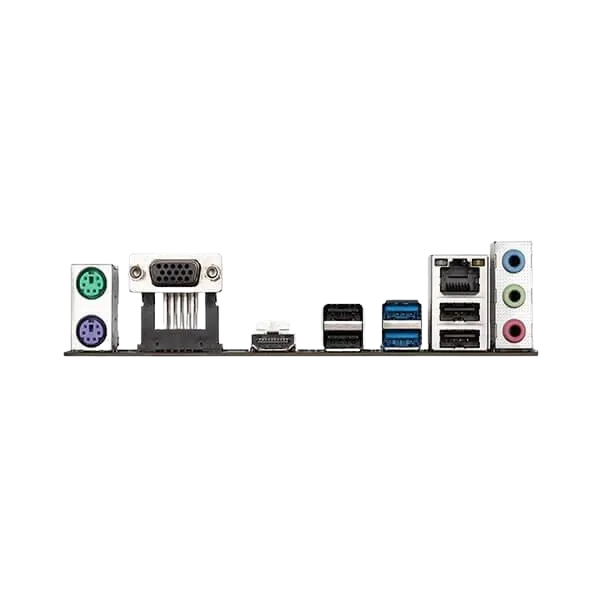

Back Panel Connectors |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
OS Supported |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
Warranty |
3 Years |
