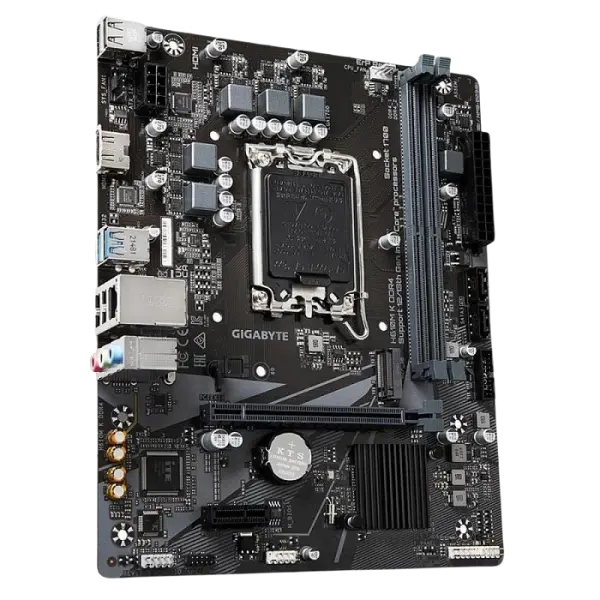

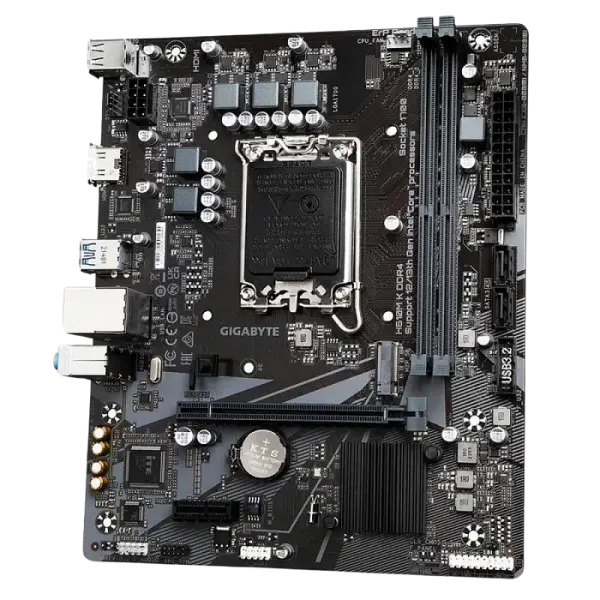

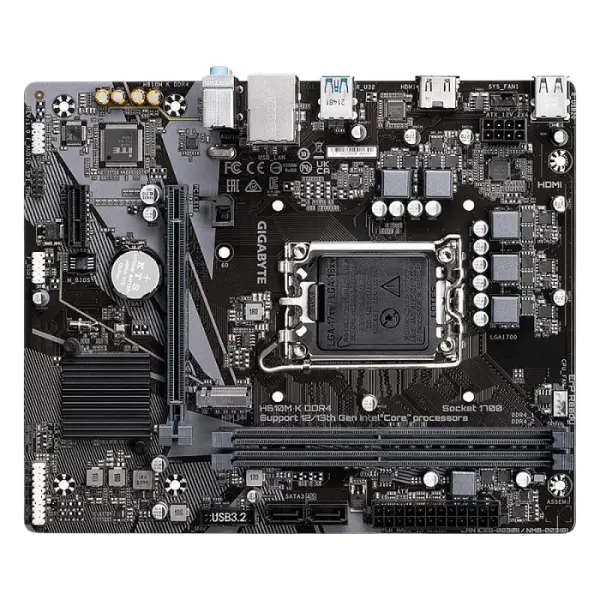

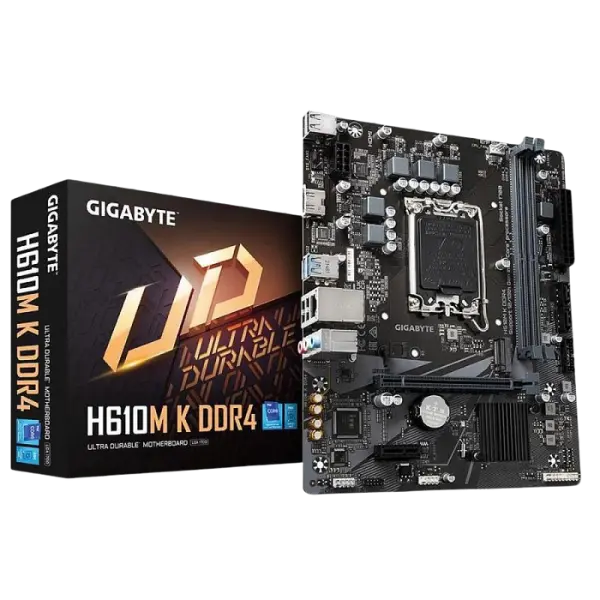

Gigabyte H610M K DDR4 Motherboard
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
|
Brand |
Gigabyte |
|
Compaitability |
Intel |
|
CPU Socket Type |
LGA1700 |
|
CPU Type Support |
14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
|
Chipset |
Intel H610 Express Chipset |
|
Number of Memory Slots |
2 x DDR4 DIMM sockets supporting up to 64 GB |
|
Channel Supported |
Dual Channel |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
|
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
Back Panel Connectors |
1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
Maximum Memory Supported |
64 GB |
|
Memory Type Supported |
DDR4 |
|
Expansion Slots |
1 x PCI Express x16 slot |
|
Storage Supported |
2 x SATA 6Gb/s connectors |
|
HDMI |
1 x HDMI |
|
Form Factor |
Micro ATX |
|
Warranty |
3 Years |
