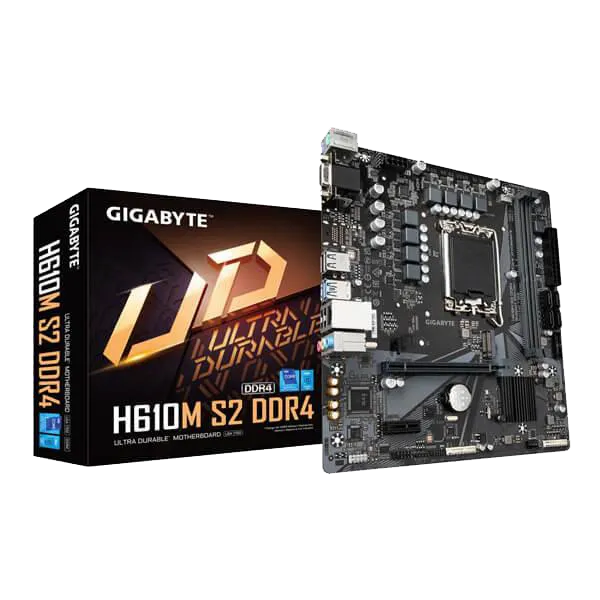

Gigabyte H610M S2 DDR4 Motherboard
Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading.
6+1+1 Phases Low RDS(on) MOSFETs
Solid capacitors improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.
Exclusive Realtek 8118 Gaming LAN
High-Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.
Solid Pin Power Connectors
H610 motherboards feature solid-plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
-
- Larger contact area for electricity
-
- More metal quantity to sustain higher power and generated heat
-
- Ultra durable and longer lifespan
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Brand |
Gigabyte |
Compaitability |
Intel |
Series |
VIGOR Series |
CPU Socket Type |
LGA1700 |
Chipset |
Intel H610 |
Number of Memory Slots |
2 x DDR4 DIMM |
Maximum Memory Supported |
32GB |
Memory Type Supported |
DDR4 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express x1 slot, 1 x PCI Express x16 slot, running at x16 |
Storage Supported |
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors |
USB Ports |
4 x USB 2.0/1.1 ports available through the internal USB headers, 4 x USB 2.0/1.1 ports on the back panel, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
HDMI |
1 x HDMI |
I/O (Internal) |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
I/O (Rear) |
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
OS Supported |
Windows 10 64-bit, Windows 11 64-bit |
Form Factor |
23.0cm x 21.5cm, micro-ATX Form Factor |
Warranty |
3 Years |
