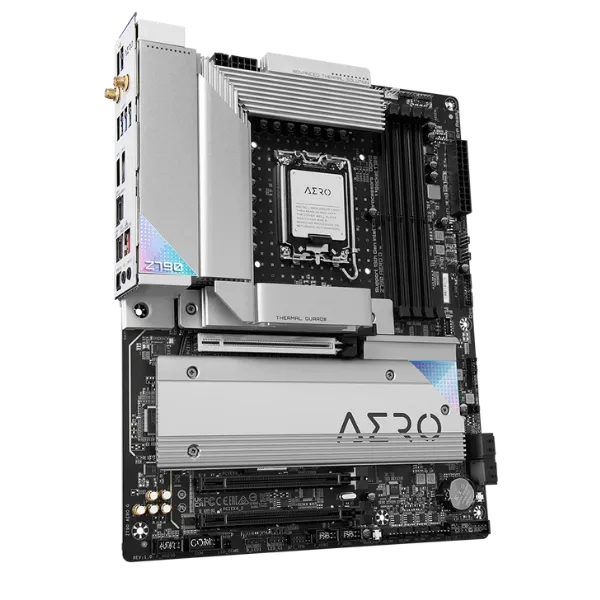

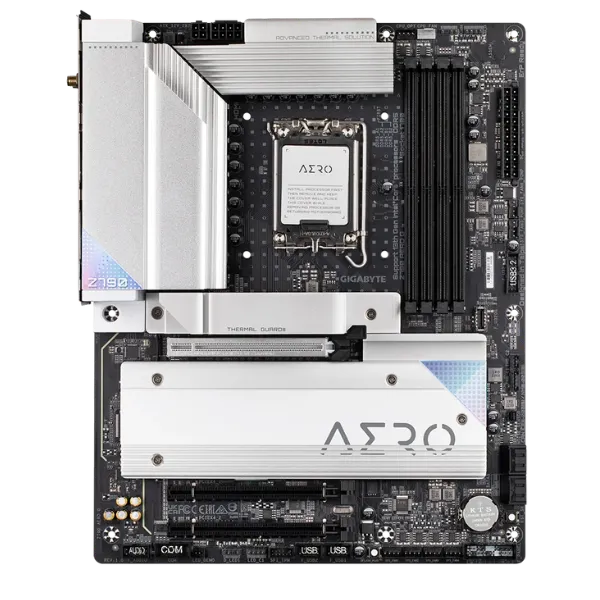

AERO SERIES
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
VISIONLINK
Simplify Your Connections.Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C® cable.

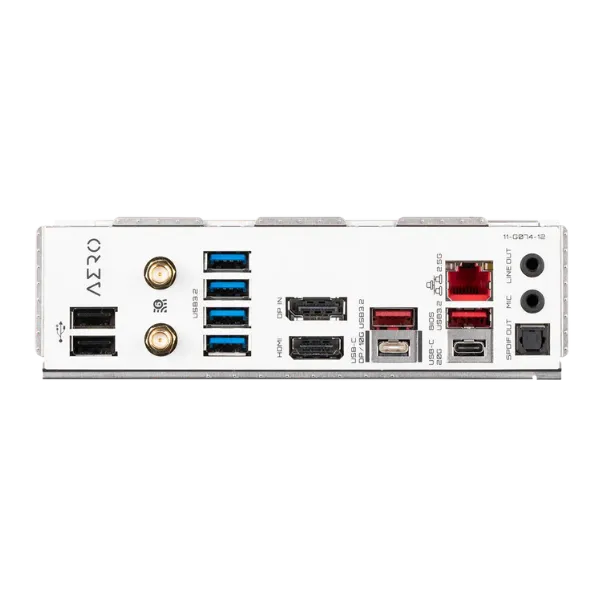

CONNECTIVITY
Intel® 2.5GbE LAN
: Intel® 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers.
Wi-Fi 6E
: Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.
SuperSpeed USB 20Gbps
: USB 3.2 Gen 2×2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.
PCIe 5.0 Design
Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.
PCIe 5.0 M.2 Storage
Equipped with a full-speed PCIe 5.0 M.2 slot.
A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.
PCIe x4 M.2
All PCIe x4 M.2 slots provide NVMe® SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.
Aesthetic Cooling Design.
GIGABYTE’s advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
Brand |
Gigabyte |
Chipset |
Intel® Z790 Express Chipset |
I/O Controller |
iTE® I/O Controller Chip |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
Number of Memory Slots |
4 x DIMM |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express 3.0 |
Storage Supported |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 4 x SATA 6Gb/s connectors |
HDMI |
1 x HDMI |
