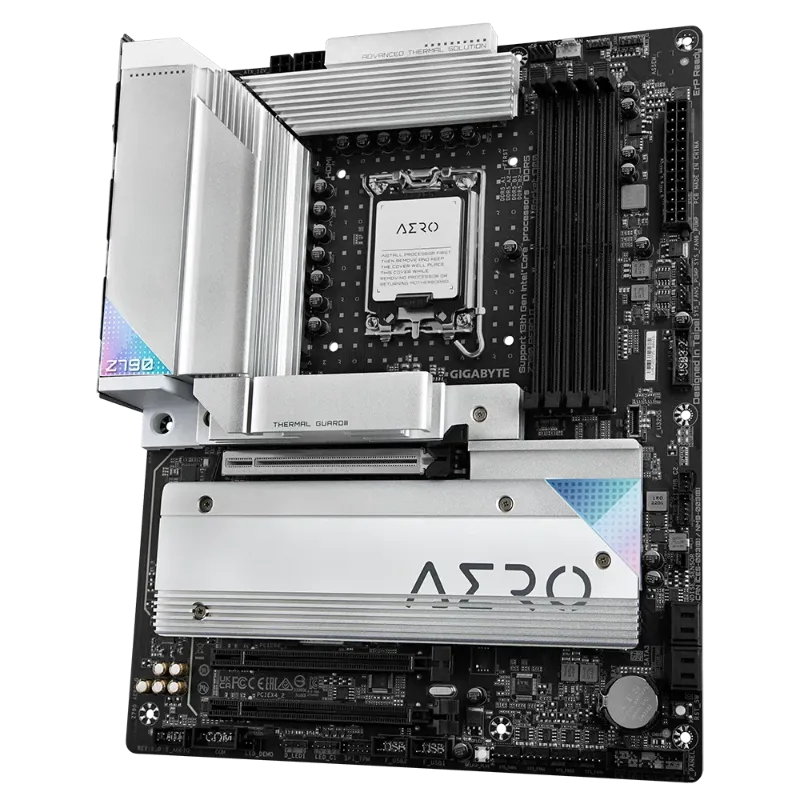

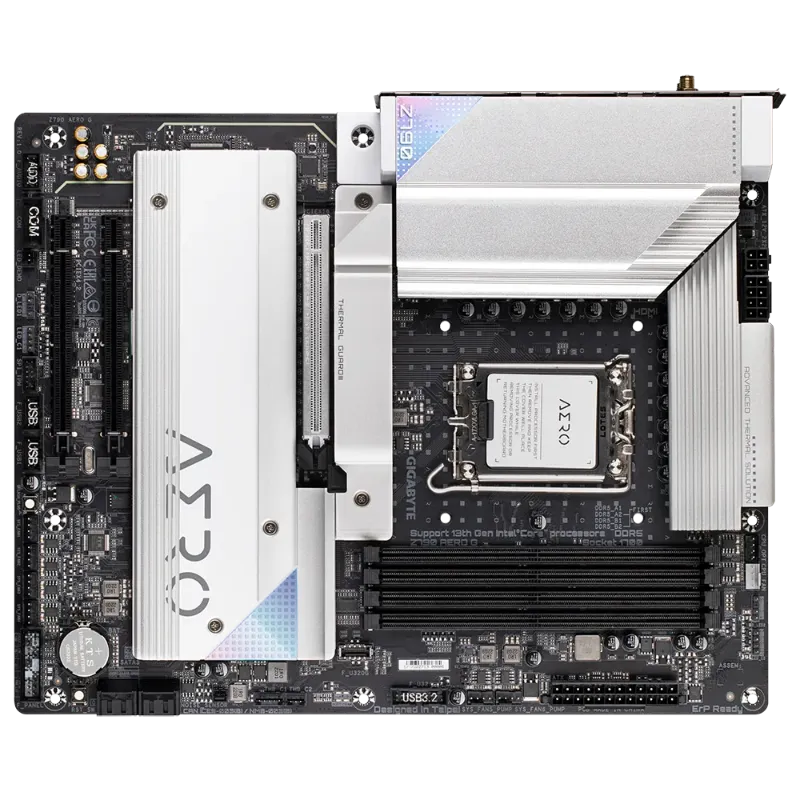

Gigabyte Z790 AERO G (rev. 1.0) DDR5 Motherboard
VISIONLINK
Simplify Your Connections
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C® cable.
DisplayPort™ Alternate Mode with USB Power Delivery.
VisionLINK comes with data transfer capabilities, DisplayPort Alternate Mode for video, and 60W of power for device charging.
One Port For All
Video, Data Transfer, Charging
Bring graphics performance to your pen display
Through the DisplayPort™ In and VisionLINK connections, the performance of the discrete graphics card is delivered to the pen display.
CONNECTIVITY
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.
PERFORMANCE
Whether you’re editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.
Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.
ULTRA FAST STORAGE
Equipped with a full-speed PCIe 5.0 M.2 slot.
A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.
All PCIe x4 M.2 slots provide NVMe® SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.
STAY COOL
Aesthetic Cooling Design
GIGABYTE’s advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
M.2 Thermal Guard III
The new M.2 Thermal Guard III provides a more optimized thermal solution specifically for PCIe 5.0 M.2 SSD support. It prevents thermal throttling under high transfer or heavy workloads.
SMART FAN 6GIGABYTE
Smart Fan 6 features simple management to ensure your system stays cool and quiet under varying workloads.
Brand |
Gigabyte |
Form Factor |
ATX |
Compaitability |
Intel |
CPU Type Support |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU |
Chipset |
Intel® Z790 Express Chipset |
Number of Memory Slots |
4 x DDR5 DIMM |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express 4.0 |
Storage Supported |
1 x M.2 connector, 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB), 4 x SATA 6Gb/s connectors |
Ethernet Lan Chipset |
Realtek® ALC1220-VB CODEC |
USB Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A), 2 x USB Type-C |
HDMI |
1 x HDMI |
LED Lighting |
RGB |
Audio |
Realtek® ALC1220-VB CODEC High Definition Audio Support for S/PDIF Out 2/4/5.1/7.1-channel |
I/O (Internal) |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |

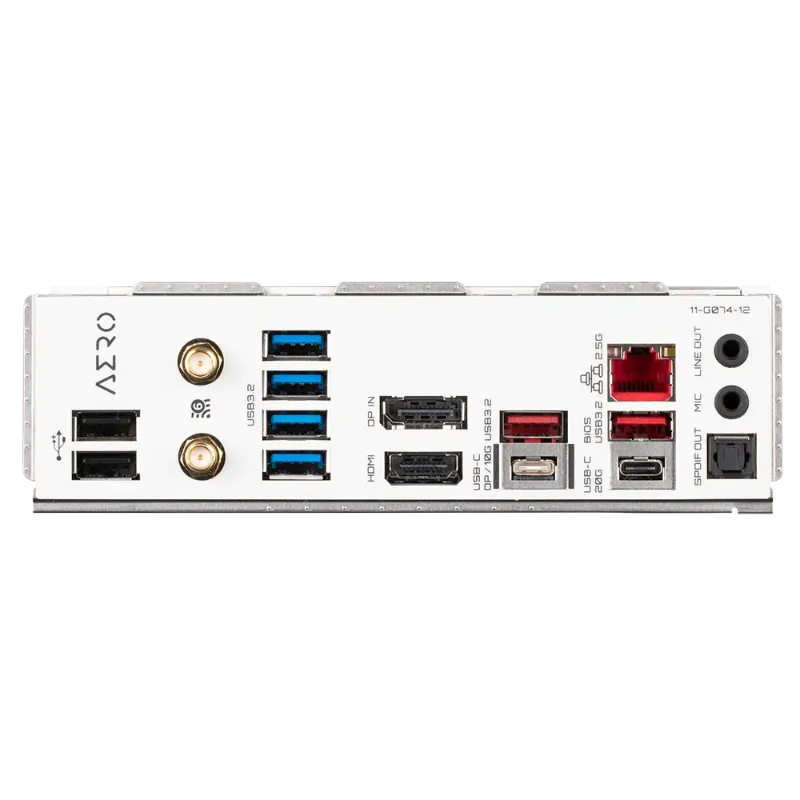

Back Panel Connectors |
2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
I/O Controller |
iTE® I/O Controller Chip |
