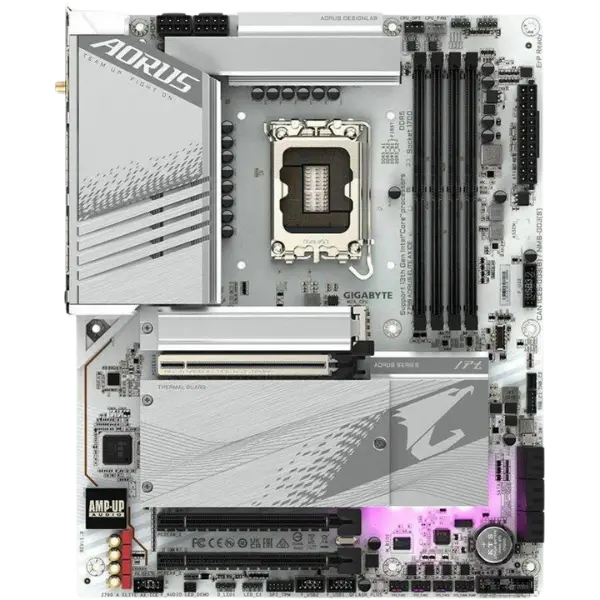

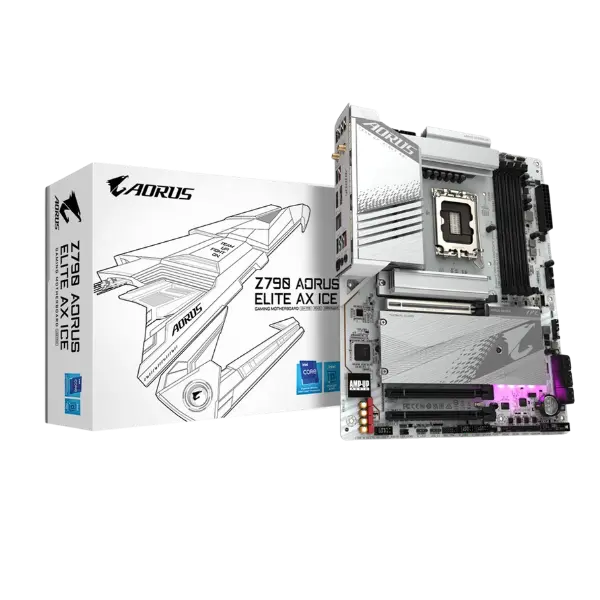

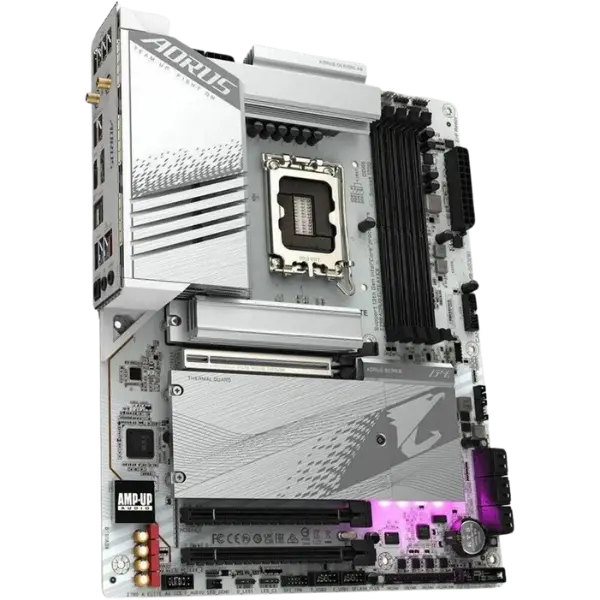

Gigabyte Z790 AORUS ELITE AX ICE DDR5 Motherboard
THE SINGULARITY OF POWER
AORUS Z790 series gaming motherboards fully optimize the performance within the latest Intel® 13th generation processors with our most capable digital power design ever. Before you would notice, the heat generated from the beastly power consumption is already dealt with by the full metal thermal solution. Not to mention the lightning-fast track to the next-gen PCIe 5.0 and the top-tier compatibility of DDR5 memory. Be crowned the king of gaming.
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Overall Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fas
Get everythingUD
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.
Connectivity versatile
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
|
Brand |
Gigabyte |
|
Compaitability |
Intel |
|
CPU Socket Type |
LGA1700 |
|
CPU Type Support |
14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
|
Chipset |
Intel® Z790 Express Chipset |
|
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 192 GB |
|
Channel Supported |
Dual Channel |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|

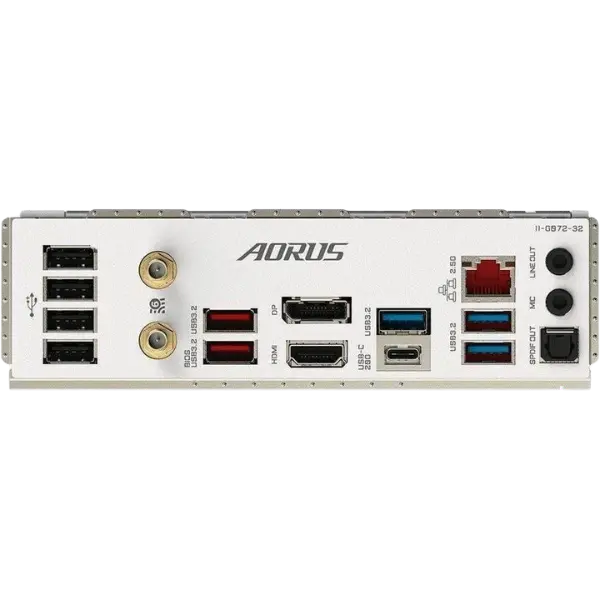

Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) jk 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
Maximum Memory Supported |
192 GB |
|
Memory Type Supported |
DDR5 |
|
Expansion Slots |
1 x PCI Express x16 slot |
|
Storage Supported |
4 x SATA 6Gb/s |
|
HDMI |
1 x HDMI |
|
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bi |
|
Form Factor |
ATX |
|
Warranty |
3 Years |
