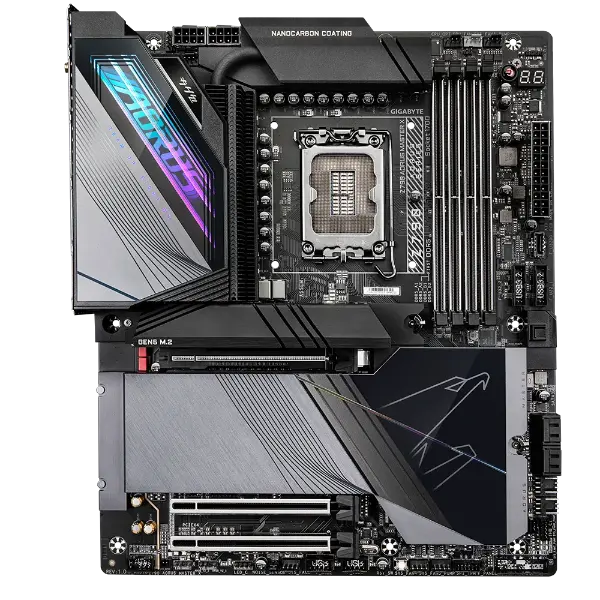

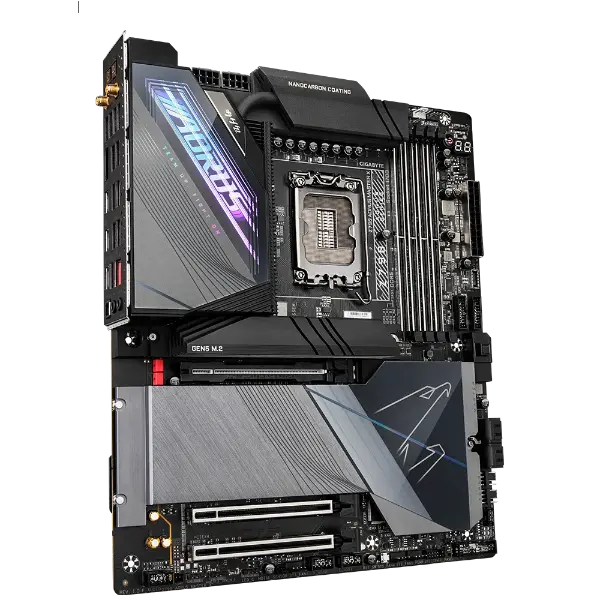

Gigabyte Z790 AORUS MASTER X DDR5 Motherboard
Gen Designed for 14th Gen
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
Xceed in DDR5
performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
The Z790 AORUS MASTER X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads
Xpress your cool
Every Z790 AORUS MASTER X motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast
Brand |
Gigabyte |
Compaitability |
Intel |
CPU Socket Type |
LGA1700 |
CPU Type Support |
14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
Chipset |
Intel® Z790 Express Chipset |
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 192 GB |
Channel Supported |
Dual Channel |
Internal I/O Connectors |
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |

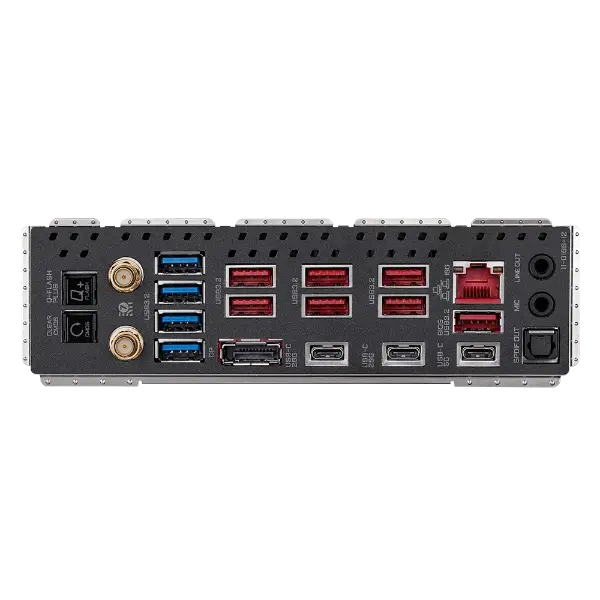

Back Panel Connectors |
1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
I/O Controller |
iTE® I/O Controller Chip |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Expansion Slots |
1 x PCI Express x16 slot |
Storage Supported |
4 x SATA 6Gb/s |
HDMI |
1 x HDMI |
Form Factor |
E-ATX |
Operating System |
Support for Windows 11 64-bit |
Warranty |
3 Years |
