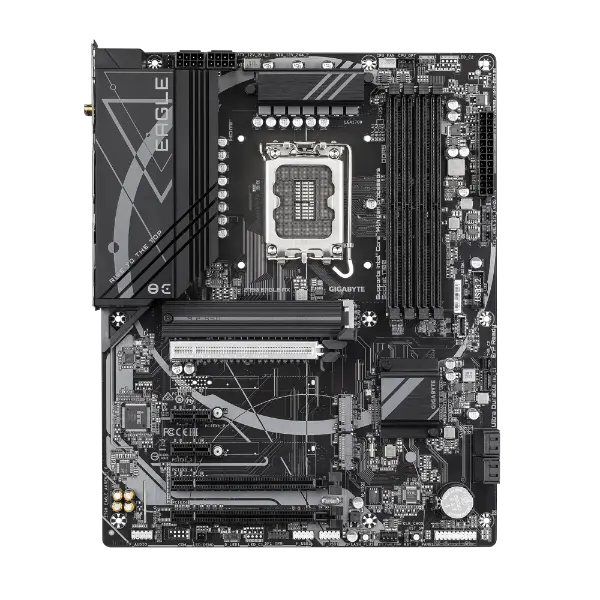

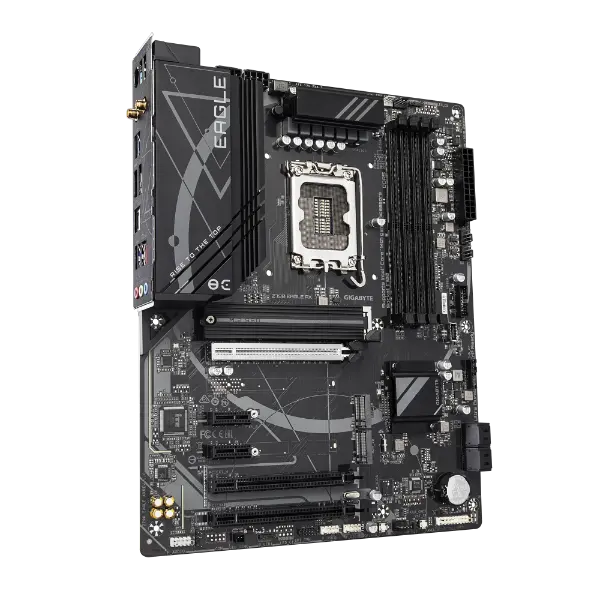

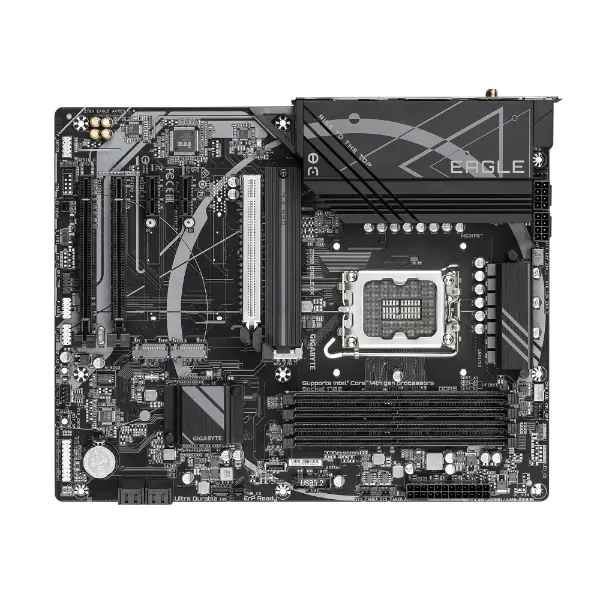

GIGABYTE Z790 EAGLE AX DDR5 Motherboard
-
- Supports Intel® Core™ 14th/ 13th /12th processors
-
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
-
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
-
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
-
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
-
- EZ-Latch：PCIe 5.0×16 Slot with Quick Release Design
-
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
-
- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
-
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
-
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Brand |
Gigabyte |
Compaitability |
Intel |
CPU Socket Type |
LGA1700 |
CPU Type Support |
14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
Chipset |
Intel® Z790 Express Chipset |
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 192 GB |
Channel Supported |
Dual Channel |
I/O Controller |
iTE® I/O Controller Chip |
Maximum Memory Supported |
192GB |
Memory Type Supported |
DDR5 |
Expansion Slots |
1 x PCI Express x16 slot |
Storage Supported |
4 x SATA 6Gb/s connectors |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
HDMI |
1 x HDMI |
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Warranty |
3 Years |
