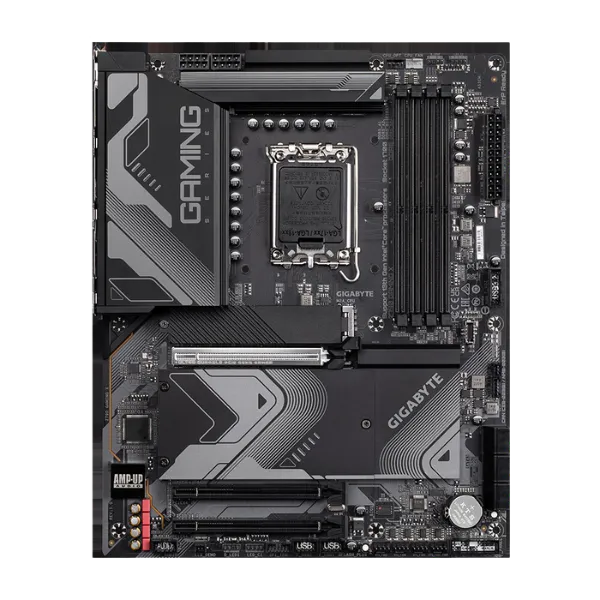

Gigabyte Z790 GAMING X DDR5 Motherboard
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Form Factor |
12 in. x 9.6 in. (30.5 cm x 24.4 cm), ATX |
Chipset |
Intel® Z790 Express Chipset |
Number of Memory Slots |
4 x DIMM |
Memory Type Supported |
DDR5 |
Expansion Slots |
1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4, 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 |
Storage Supported |
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), 6 x SATA 6Gb/s connectors |
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
I/O Controller |
iTE® I/O Controller Chip |
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support : 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
OS Supported |
Windows 10 64-bit, Windows 11 64-bit |
BIOS |
1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
Back Panel Connectors |

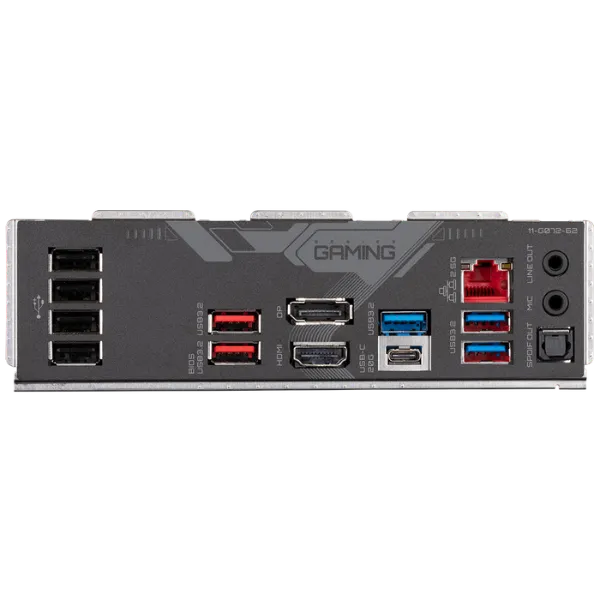

4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x DisplayPort 1 x HDMI 2.0 port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
Warranty |
3 Years |
