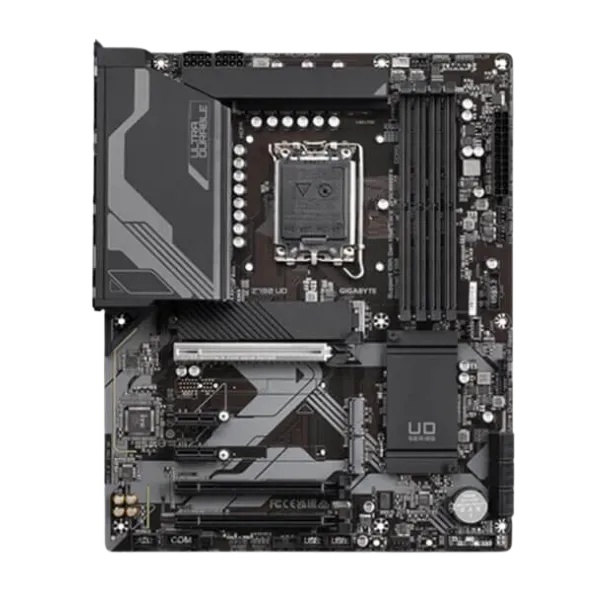

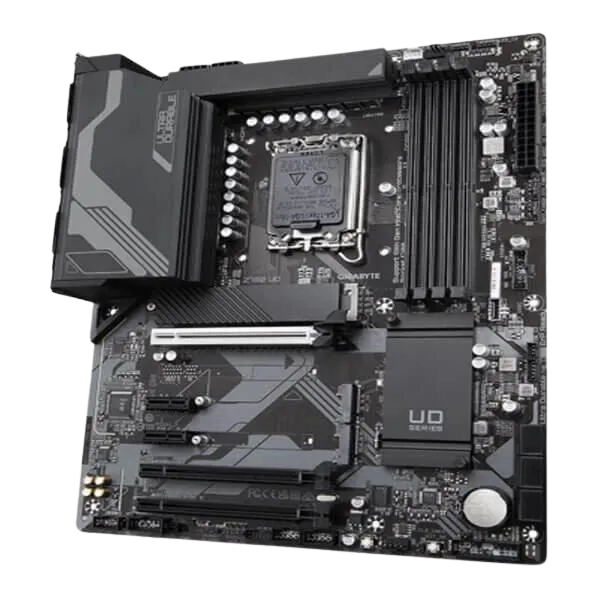

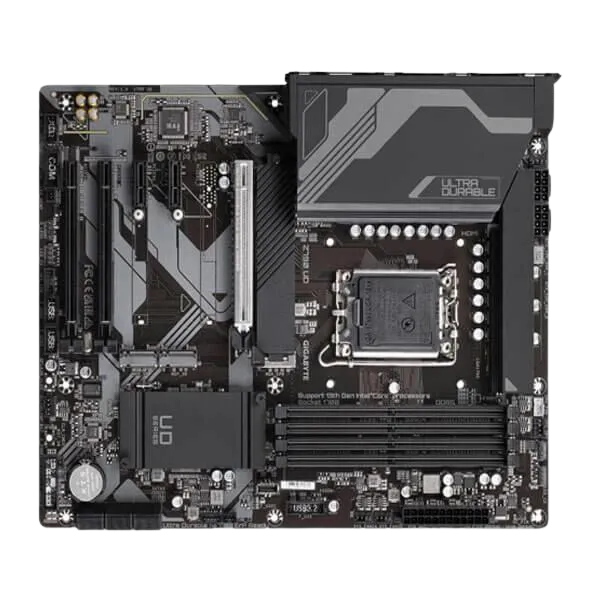

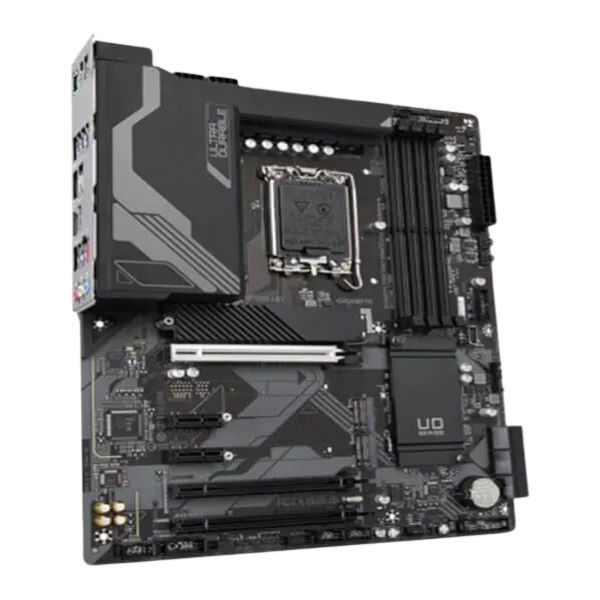

GIGABYTE Z790 UD DDR5 Motherboard
Brand |
Gigabyte |
Chipset |
Intel® Z790 Express Chipset |
I/O Controller |
iTE® I/O Controller Chip |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
Number of Memory Slots |
4 x DIMM |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express 3.0 |
Storage Supported |
1 x M.2 connector, 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode), 6 x SATA 6Gb/s connectors |
CPU Supported |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
HDMI |
1 x HDMI |
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Warranty |
3 Years |
