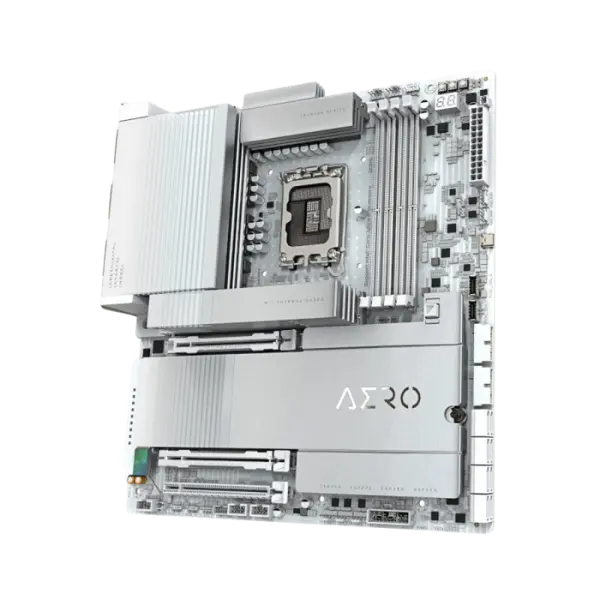

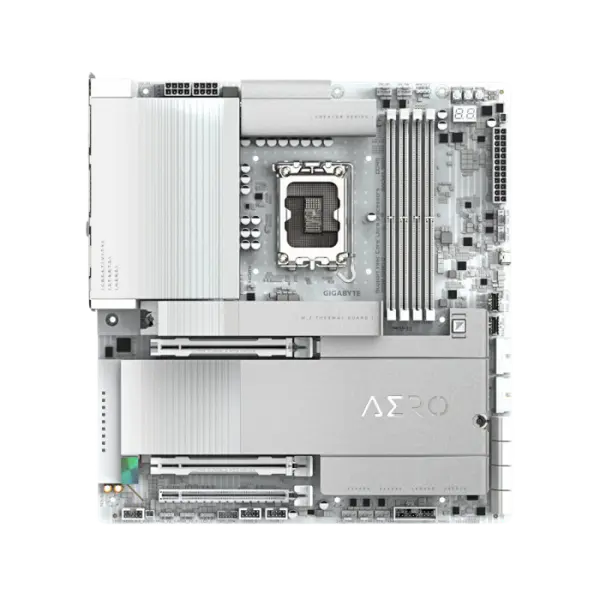

GIGABYTE Z890 AERO D DDR5 Motherboard
CREATIVITY STARTS HERE
AERO series motherboards present an innovative design for content creators to handle demanding creative tasks like 3D rendering and long-form video editing.
VisionLink/ TB
Simplify Your Connections.
Connected to GIGABYTE VisionLINK/ TB port, you can transfer data, video and power charging via a single USB Type-C® cable.
VisionLINK TB, Your Thunderbolt™ 5
GIGABYTE VisionLINK TB is based on Thunderbolt™ 5, delivers 80Gb/s high-bandwidth speeds, data, video, 60W power, and USB4™ compliance devices with the simplicity of just one cable to make your work better than ever.
Dual THUNDERBOLT™ 5
The latest Thunderbolt™ 5 delivers incredible display and data transfer experience for content creators and gamers.
Dual PCIe x 16 slots for Multi-GPU
Dual PCIe 5.0 x16 slots (run x16, x8) to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.
4X M.2 Slots Fast Storage
With four onboard PCIe 5.0/ 4.0 M.2 slots, Z890 AERO D is perfect for creators, enthusiasts, AI operation to RAID multiple NVMe devices for demanding workloads
Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
Dual 10G LAN
The Dual 10G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Immerse in ESSential Audio
Deliver you a highly immersive listening experience with strong technical specifications.
ESSential USB DAC
ESS 9260 immerses you into your favorite games or any sounding scenario like never before.
• ESS SABRE reference DAC (ESS 9260)
• Hyperstream Dynamic Range (SNR 125dB)
• High-Res music (32bit, 192KHz PCM)
• Super low THD+N (THD+N -112db)
Infinite Memory Performance
AERO motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Brand |
Gigabyte |
Compaitability |
Intel |
CPU Socket Type |
LGA1851 |
Chipset |
Intel® Z890 Express Chipset |
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 256 GB |
Channel Supported |
Dual Channel |
I/O Controller |
iTE® I/O Controller Chip |
Maximum Memory Supported |
256 GB |
Memory Type Supported |
DDR5 |
Storage Supported |
4 x SATA 6Gb/s connectors |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header |

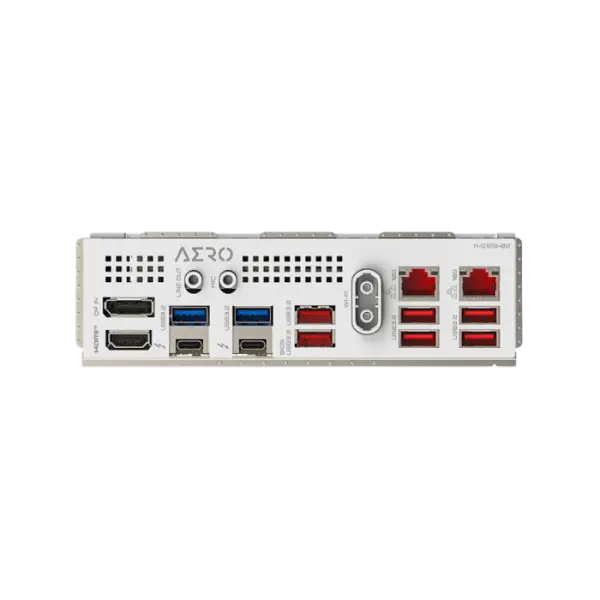

Back Panel Connectors |
1 x DisplayPort In port 1 x HDMI port (Note) 2 x audio jacks 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports) 2 x USB 3.2 Gen 1 ports 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x RJ-45 ports |
Operating System |
Support for Windows 11 64-bit (version 24H2 or later) |
Warranty |
3 Years |
