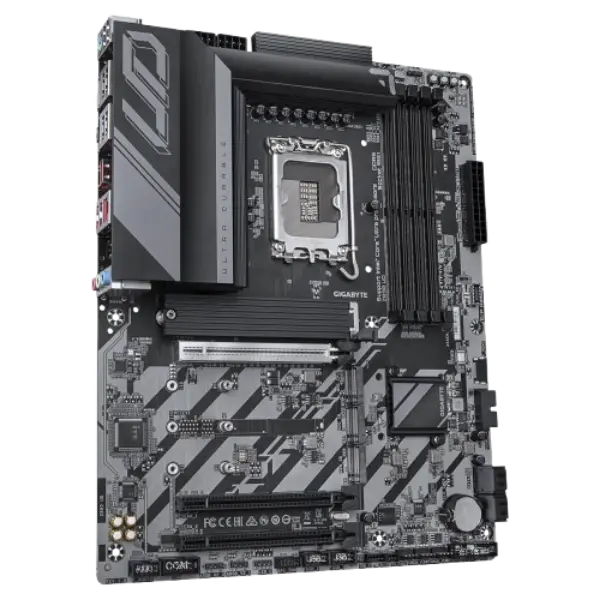

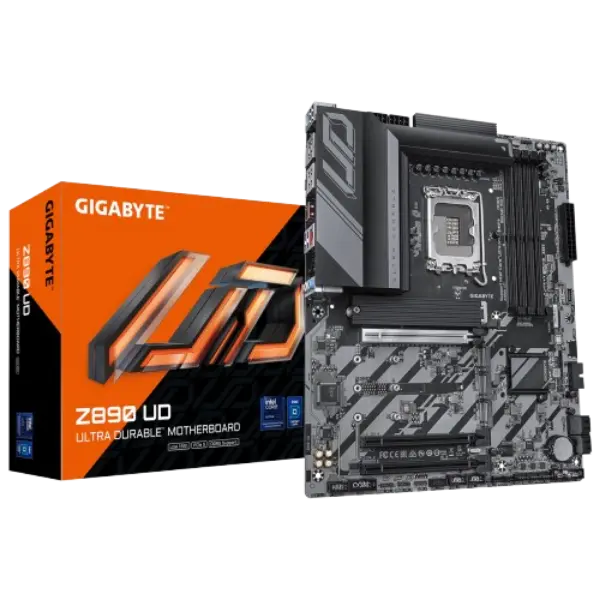

Gigabyte Z890 UD DDR5 Motherboard
With its focus on reliability, robust cooling solutions, and
Ultra Durable components
, the Z890 UD DDR5 is ideal for users seeking a high-performance, no-compromise motherboard for gaming, content creation, or general computing.
Intel Z790 chipset
, offering advanced connectivity, memory support, and storage options, while maintaining a focus on performance, reliability, and ease of use. Positioned as a more accessible, no-frills solution for users seeking solid performance and future-proofing, the Z890 UD combines essential features with great value.
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital Twin VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Brand |
Gigabyte |
Compaitability |
Intel |
CPU Socket Type |
LGA1851 |
Chipset |
Intel® Z890 Express Chipset |
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 256 GB |
Channel Supported |
Dual Channel |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
Back Panel Connectors |
4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 3 x audio jacks |
I/O Controller |
iTE® I/O Controller Chip |
Maximum Memory Supported |
256 GB |
Memory Type Supported |
DDR5 |
Expansion Slots |
1 x PCI Express x16 slot, supporting PCIe 5.0, 2 x PCI Express x16 slots, supporting PCIe 4.0 |
Storage Supported |
4 x SATA 6Gb/s connectors |
Operating system |
Support for Windows 11 64-bit |
Form Factor |
ATX |
Warranty |
3 Years |
