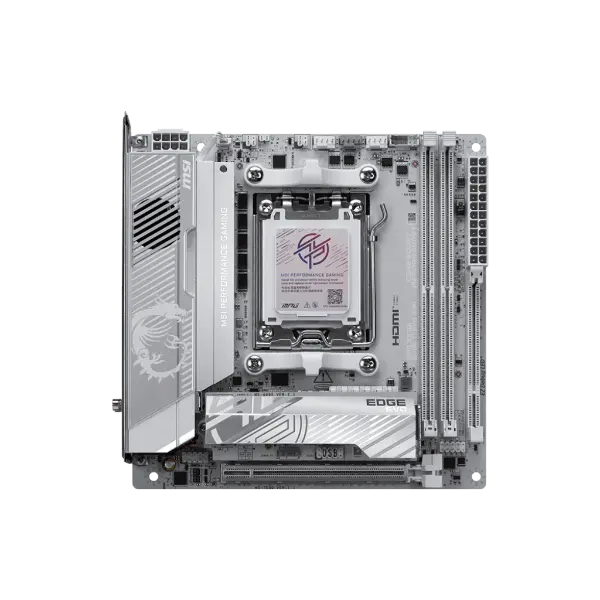

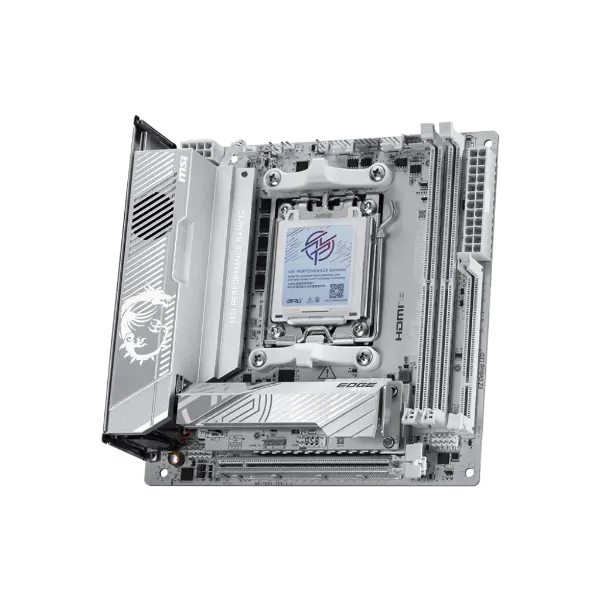

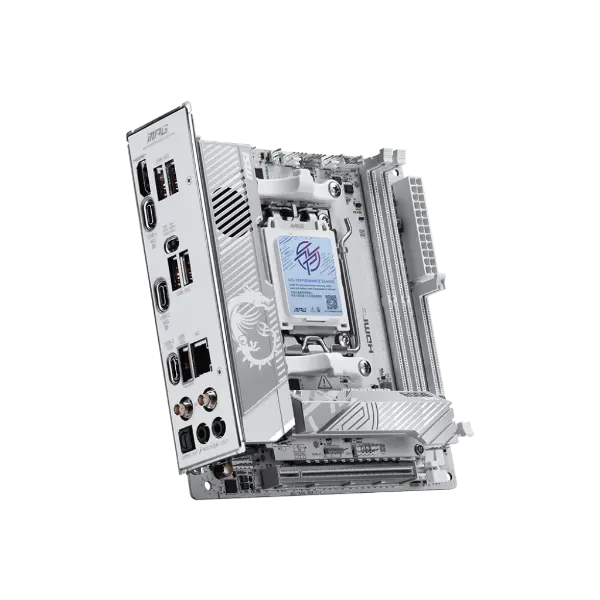

MSI MPG X870I EDGE TI EVO WIFI DDR5 Motherboard
MSI MPG X870I EDGE TI EVO WIFI is covered with a silver-white colour scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.
MSI’s premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG’s commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Key Features
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step in DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Triple M.2 Connectors
Onboard 3x M.2 connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
5G Network Solution
Featuring a premium 5G LAN to deliver a better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high-quality audio processor for the most immersive gaming experience
| Processor | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X870 Chipset |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Expansion Slot | 1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot Supports the installation of MSI 5-in-1 XPANDER card only. |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz* 2x Type-C DisplayPort |
| Storage | 1x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G (Qty) M.2_1 slot (From CPU) Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) Supports up to PCIe 4.0 x4 Supports 2260/2280 storage devices Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) Supports up to PCIe 4.0 x4 Supports 2260/2280 storage devices Supports single sided M.2 SSD only |
| LAN | 1x Realtek® 8126 5G LAN |
| USB | 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output |
| Internal connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x PUMP_SYS Fan 1x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |

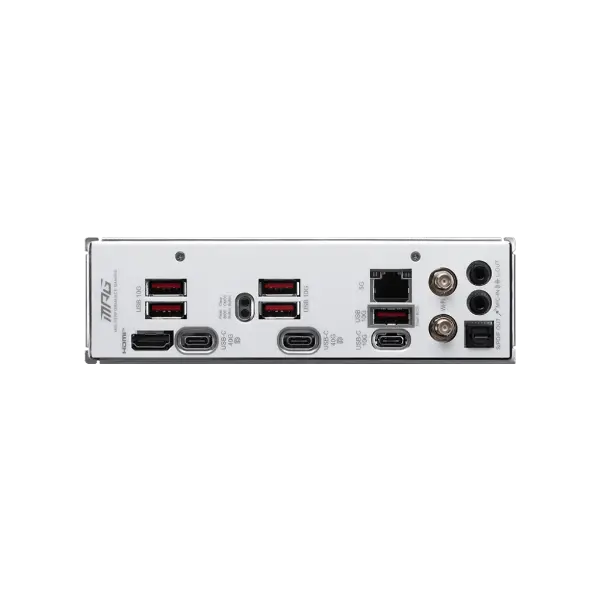

| Back panel ports | USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out |
| Dimensions | Mini-ITX 170mmx170mm |
| LED FEATURE | 4x EZ Debug LED |
| Operating System | Support for Windows® 11 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
