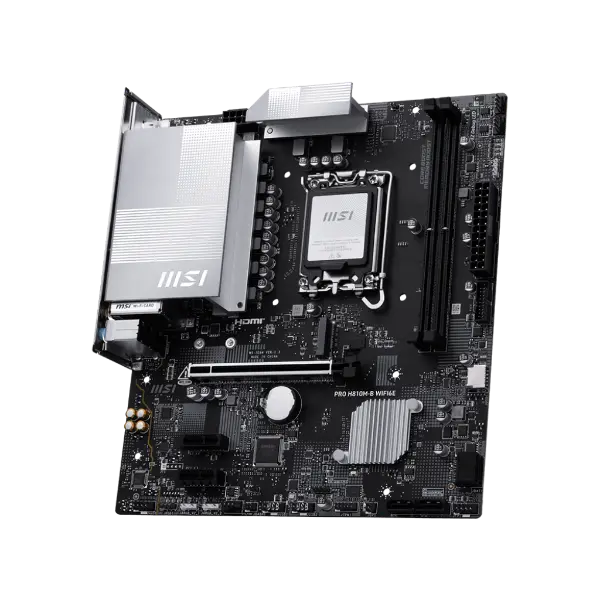

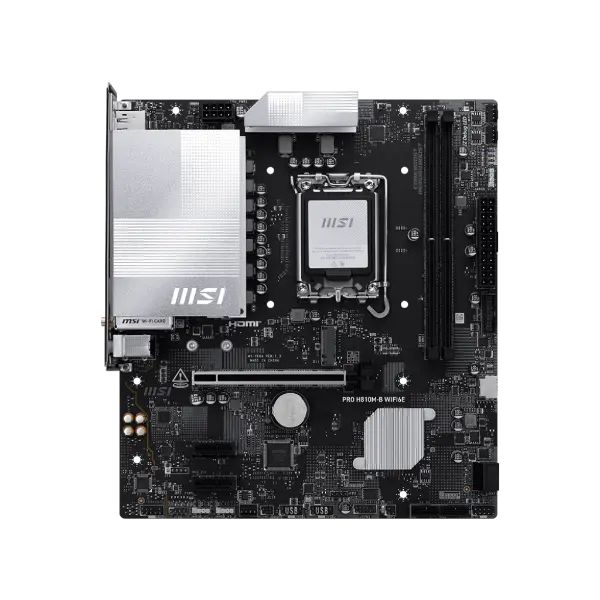

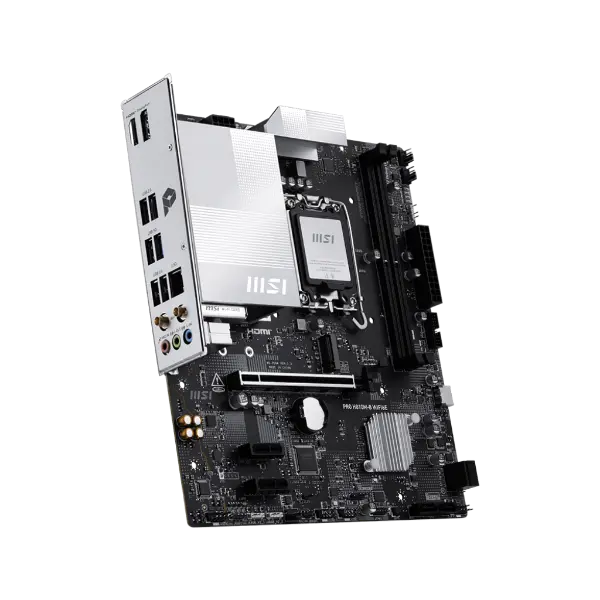

MSI PRO H810M-B WIFI6E DDR5 Motherboard
The MSI PRO H810M-B WIFI6E offers a simple design with a harmonious silver colour scheme that perfectly matches both white and black PC builds. It is engineered with Wi-Fi 6E, 2.5G LAN, and PCIe 5.0, ready for the Intel® Core™ Ultra processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users with an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist them with multitasking and increasing efficiency.
Key Features
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With a premium layout and a fully digital power design to support more cores and provide better performance.
| Processor | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Chipset | Intel® H810 Chipset |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 6400 MT/s 1DPC 2R Max speed up to 6400 MT/s |
| Expansion Slot | 1x PCI-E x16 slot (Qty) 2x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Storage | 1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) Intel® H610 Chipset4x SATA 6Gb/s ports1x M.2 slot (Key M) (M2_1 slot) Supports up to PCIe 3.0 x 4 Supports 2242/ 2260/ 2280 storage devices |
| LAN | Realtek® 8125 2.5Gbps LAN |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |

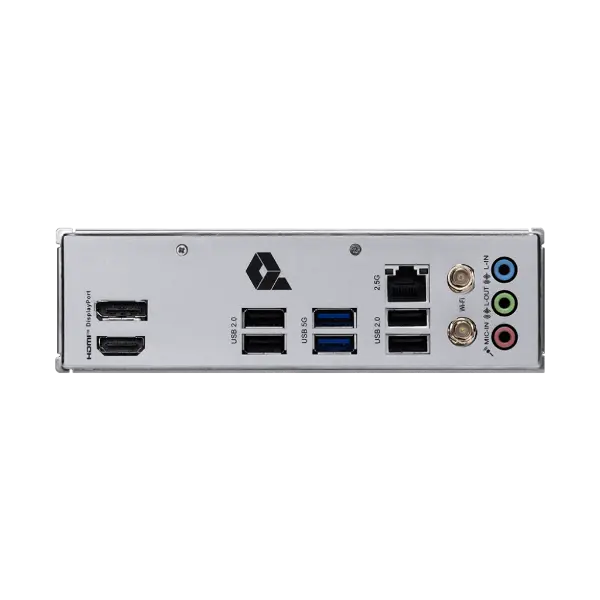

| Back panel ports | DisplayPort USB 2.0 USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMITM USB 2.0 |
| Dimensions | mATX 220mmx243.84mm |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Operating System | Support for Windows® 11 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
