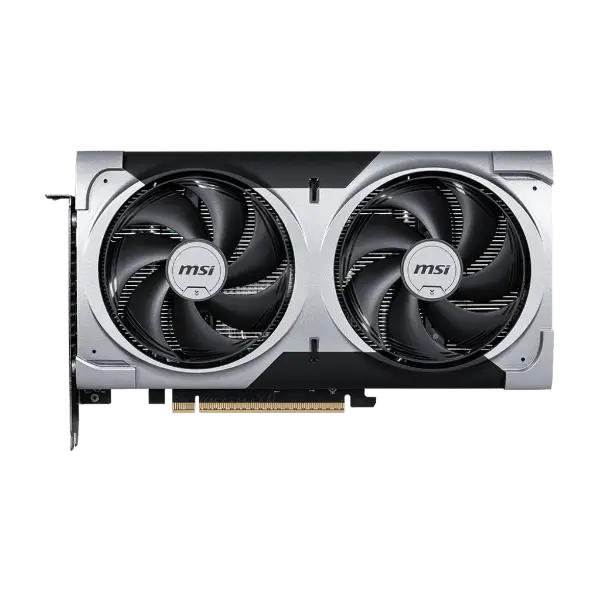

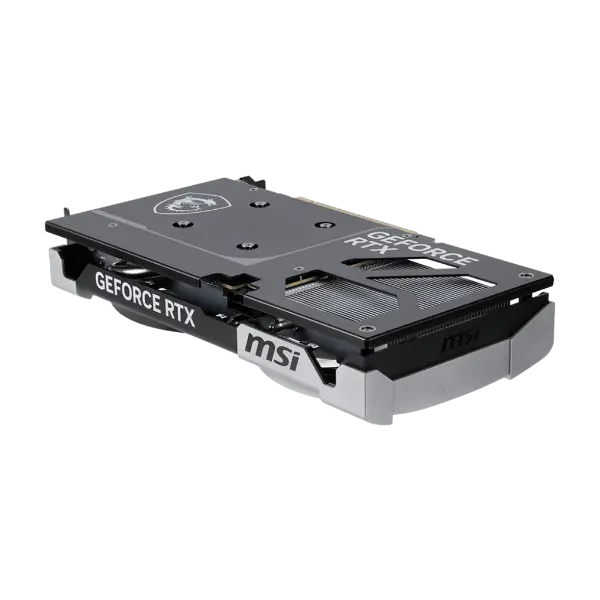

MSI RTX 5060 Ti 16GB VENTUS 2X OC PLUS GDDR7 Graphics Card
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
Features:
Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

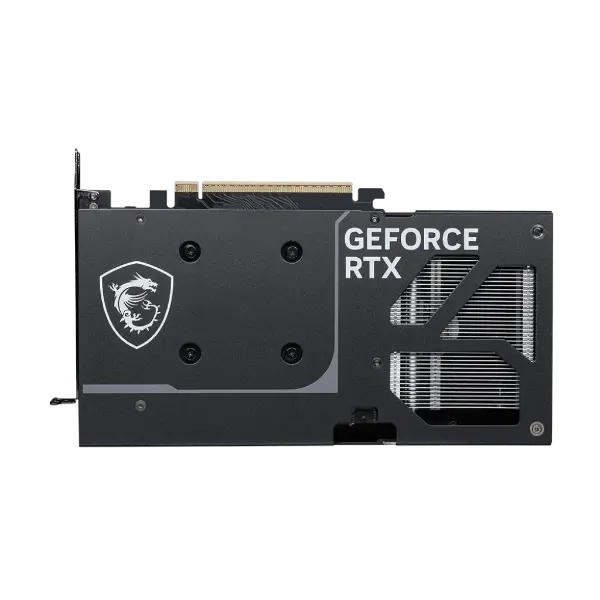

Metal Backplate
A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low, eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
| Specifications | |
| MARKETING NAME | GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS |
| MODEL NAME | G506T-16V2CP |
| GRAPHICS PROCESSING UNIT | NVIDIA GeForce RTX 5060 Ti |
| INTERFACE | PCI Express Gen 5 |
| CORE CLOCKS | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| MEMORY SPEED | 28 Gbps |
| MEMORY | 16GB GDDR7 |
| MEMORY BUS | 128-bit |

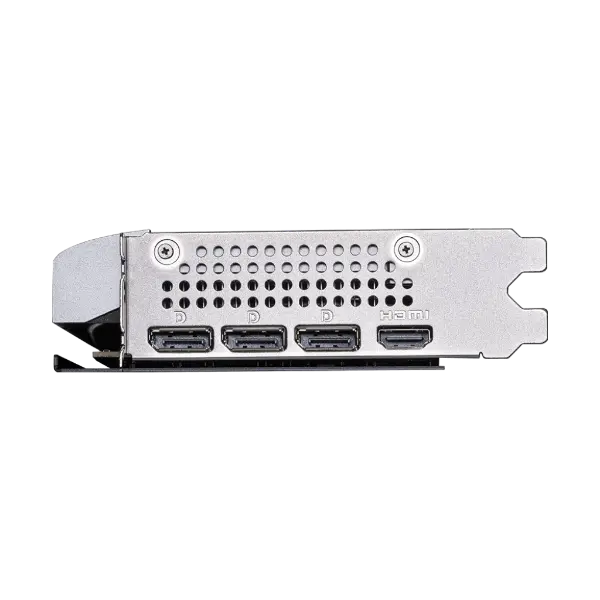

| OUTPUT | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 180W |
| POWER CONNECTORS | 8-pin x1 |
| RECOMMENDED PSU | 600W |
| CARD DIMENSION (MM) | 227 x 126 x 41 mm |
| WEIGHT (CARD / PACKAGE) | 600 g / 862 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
| Note* | Price, Feature and Specifications Are Subject to Change Without Notice. |
