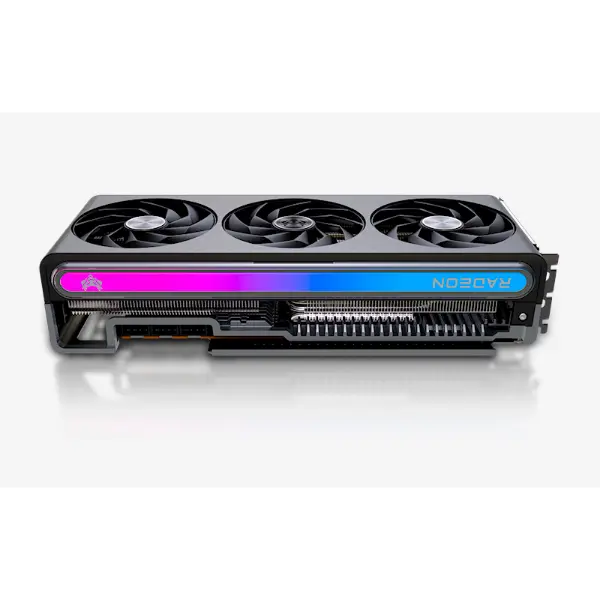

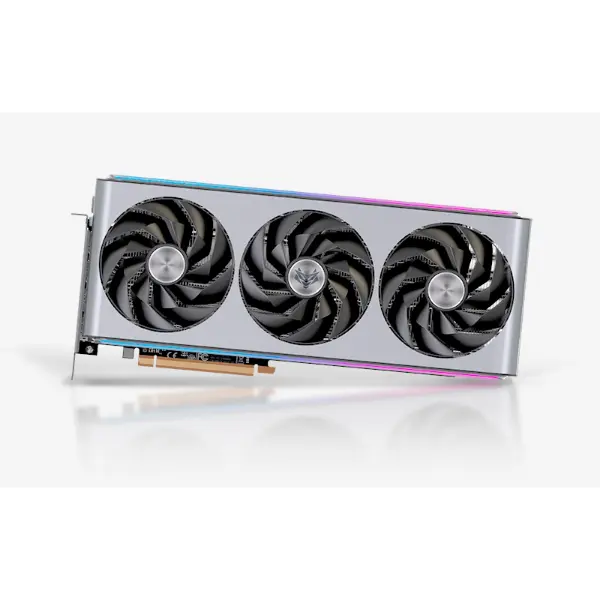

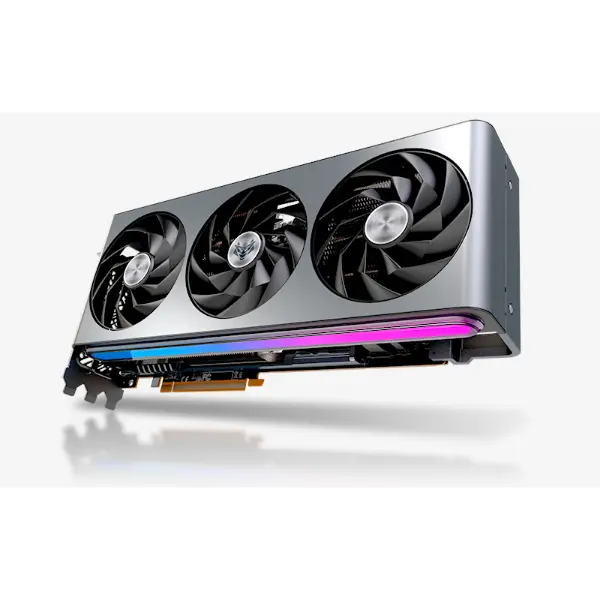

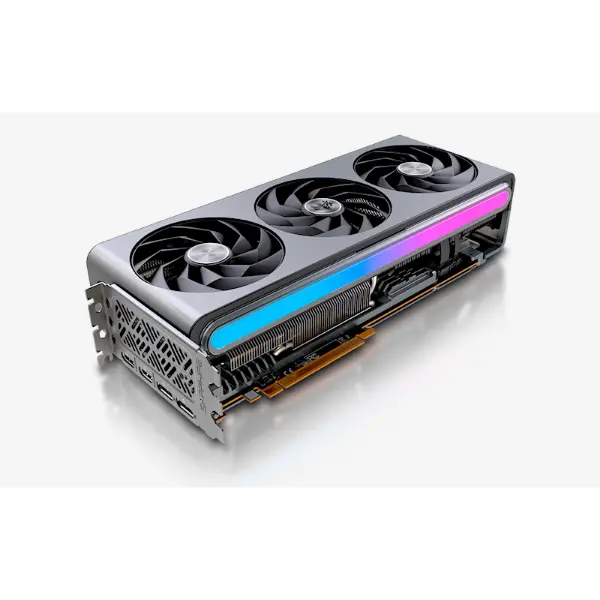

Sapphire NITRO+ AMD Radeon™ RX 7900 XTX Vapor-X 24GB Graphics Card
VAPOR-X Cooling is BACK with the launch of the SAPPHIRE NITRO+ AMD Radeon™ RX 7900 Series Vapor-X Graphics Cards.
Vapor-X Cooling
The Vapor Chamber is mounted in contact with the surface of the main chip and memory. Since the entire area transfers heat at the same rate, the Vapor-X module has been engineered to operate more efficiently than a copper heat sink at carrying away heat. Upon gaining heat, the heat source is pushed to the Vaporization Wicks to begin the heat dissipation process. Due to extreme low pressure, working fluid and pure water are easily vaporized, and transferred through the vacuum until reaching the Condensing Wick which is adjacent to the cooled surface. From here, it turns back to a liquid state whereby the liquid is then absorbed into the Transportation Wick by capillary action and moved back towards the Vaporization Wick. A recycled liquid system occurs when the heat source reheats the liquid and it becomes re-vaporized by the Vaporization Wick to restart the Vapor-X Cooling process.
Die Casted Aluminum-Magnesium Alloy Frame & Frontplate Heatsink
The Die Casted Aluminum-Magnesium Alloy Frame enveloping the sides of the PCB help to strengthen the structural stiffness of the shroud to create a strong, scratch resistant and high quality finish that elevates the aesthetic and strength of the graphics card. Overlaying the entire PCB, the die casted Frontplate Heatsink cools the VRM, Memory and Chokes resulting in superior heat dissipation for top-notch airflow and cooling performance.
Digital Power Design
SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency.
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

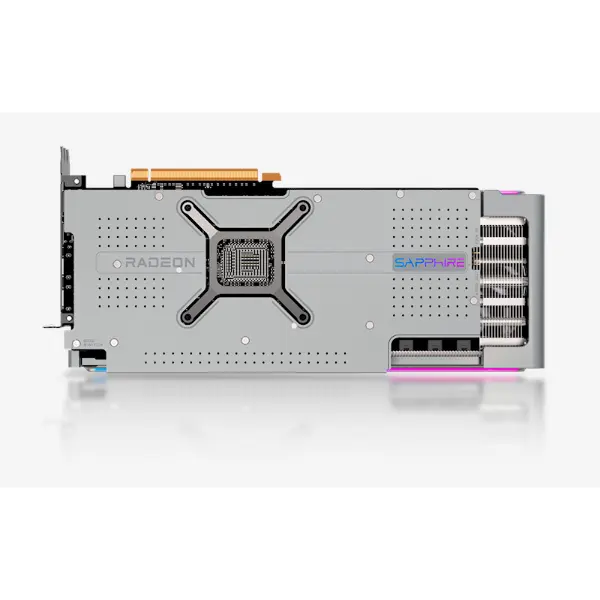

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Dedicated VRM Cooling
Dedicated VRM cooling module to create optimal heat dissipation for peak airflow and cooling performance.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Assistive System Fan Control
When the temperature of the GPU increases, the graphics card fans speed up accordingly. To further help with cooling and heat dissipation, the Assistive System Fan Control feature in SAPPHIRE’s TriXX software controls the speed of a system fan to automatically increase at the same time as the graphics card fans, this assists in expelling the heated air from the entire system faster.
OC BIOS
This BIOS has been engineered to the maximum TGP setting for maximized gaming performance.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Dual BIOS
Choose between OC BIOS or Secondary mode to enhance your gaming experience.
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Dual ARGB Light Bar
With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs.
| GPU | AMD Radeon™ RX 7900 XTX Graphics Card 5nm GPU AMD RDNA™ 3 Architecture |
| Stream Processors | 6144 |
| Engine Clock | Boost Clock: Up to 2680 MHz Game Clock: Up to 2510 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Compute Units | 96 CU (with RT+AI Accelerators) |
| Infinity Cache | 96MB |
| Memory Size/Bus | 24GB/384 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Display | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 |
| Interface | PCI-Express 4.0 x16 |
| Recommended Power Supply | 450W |
| Output | 2x HDMI 2x DisplayPort |
| Power Input | 1 x 8-pin power input |
| Game Index | 4K |
| Accessories Bundled | Graphics Card Supporter ARGB Extension Cable |
| Cooler Type | 3 Fans Vapor-X Cooling |
| Form Factor | 3.5 slot, ATX Dimension: 320(L)X 135.75(W)X 71.6 (H)mm |
| Power Consumption | 420W Total Board Power |
| Supported OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| Note** | **Prices, Specifications & Features are subject to change wit |
