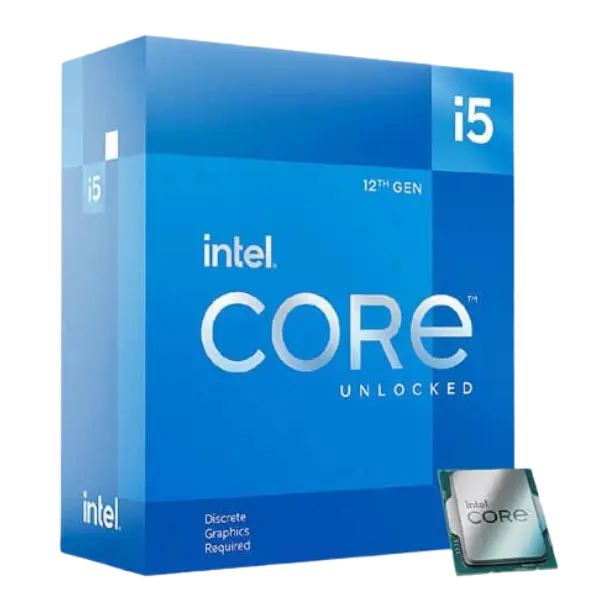

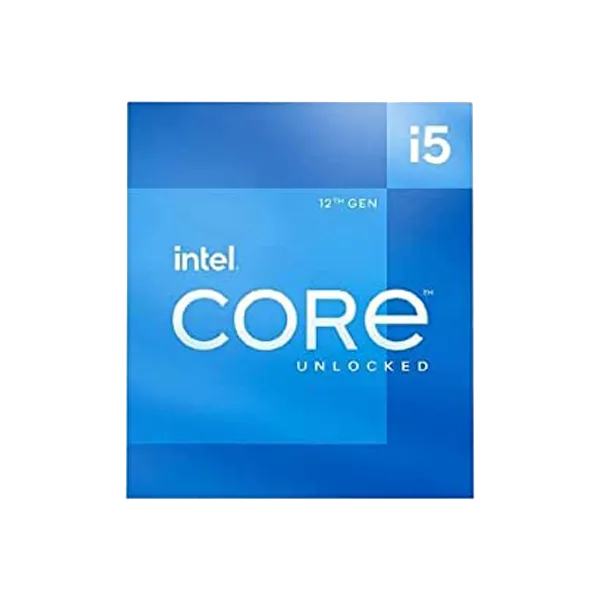

Intel i5-12600KF Processor
Built using a Hybrid Core architecture with the Intel seven process, this 12th generation desktop processor’s ten cores combine the performance of four Efficient-cores and 6 3.7 GHz Performance-cores.
The low-voltage Efficient-cores handle background tasks for multitasking while the Performance-cores provide speed for applications and games.
The built-in Intel Thread Director ensures that the 2 work seamlessly together by dynamically and intelligently assigning workloads to the correct core at the right time to maximize performance.
Additionally, Intel Core i5-12600KF has a 4.9 GHz Performance-core Turbo Boost 2.0 frequency with 20MB of cache for smooth and reliable performance.
The Intel Core i5-12600KF 3.7 GHz Ten-Core LGA 1700 Processor in your desktop computer will Power up your productivity, gaming, computing system, and content creation experiences.
this processor also includes support for up to PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask various demanding applications. You can overclock the processor for greater performance.
The Core i5-12600KF is not included integrated graphics, meaning that you will need to purchase a separate dedicated graphics card. The processor is compatible with the Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.
Specifications
Product Collection | 12th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Alder Lake |
Vertical Segment | Desktop |
Processor Number | i5-12600KF |
Lithography | Intel 7 |
Total Cores | 10 |
# of Performance-cores | 6 |
# of Efficient-cores | 4 |
Total Threads | 16 |
Max Turbo Frequency | 4.90 GHz |
P-core Max Turbo Frequency | 4.90 GHz |
E-core Max Turbo Frequency | 3.60 GHz |
P-core Base Frequency | 3.70 GHz |
E-core Base Frequency | 2.80 GHz |
Cache | 20 MB Intel® Smart Cache |
Total L2 Cache | 9.5 MB |
Processor Base Power | 125 W |
Maximum Turbo Power | 150 W |
Max Memory Size | 128 GB |
Memory Types | Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
DMI Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCIe Configurations | Up to 1×16+4, 2×8+4 |
Max # of PCIe Lanes | 20 |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020A |
Tjunction | 100 °C |
Package Size | 45.0 mm x 37.5 mm |
Max Operating Temperature | 100 °C |
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost | Yes |
Intel® Optane™ Memory Supported | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max 3.0 | No |
Intel® Turbo Boost 2.0 | Yes |
Intel® Hyper-Threading Technology | Yes |
Intel® 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® | Yes |
Thermal Monitoring Technologies | Yes |
Intel® VMD | Yes |
Intel® Standard Manageability (ISM) | Yes |
Intel® Secure Key | Yes |
Intel® Control-Flow Enforcement | Yes |
Intel® AES-NI | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit | Yes |
Intel® Boot Guard | Yes |
MBEC | Yes |
Intel® VT-x | Yes |
Intel® VT-d | Yes |
Intel® EPT | Yes |
