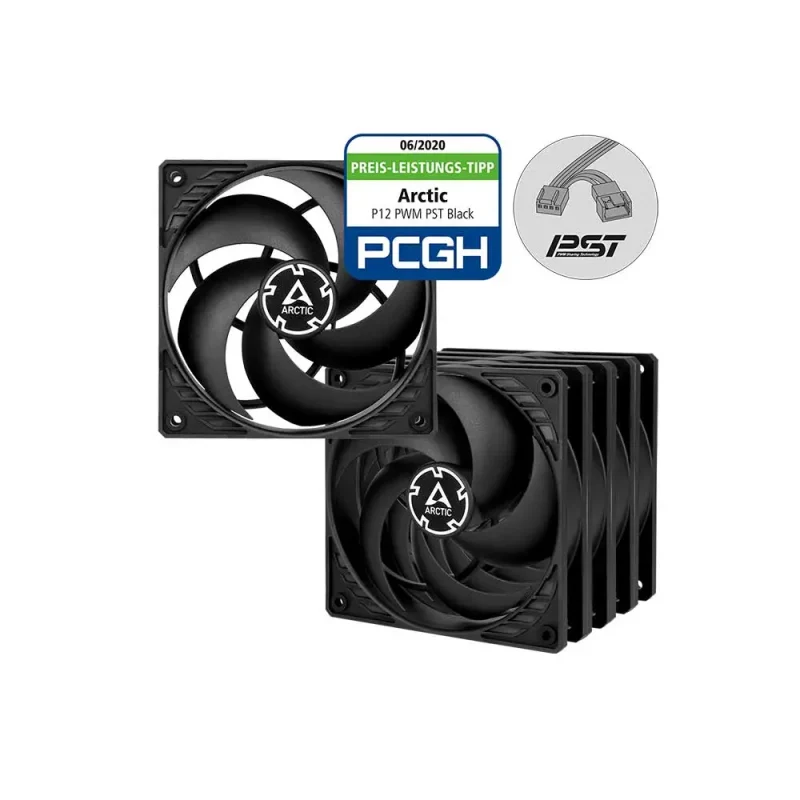

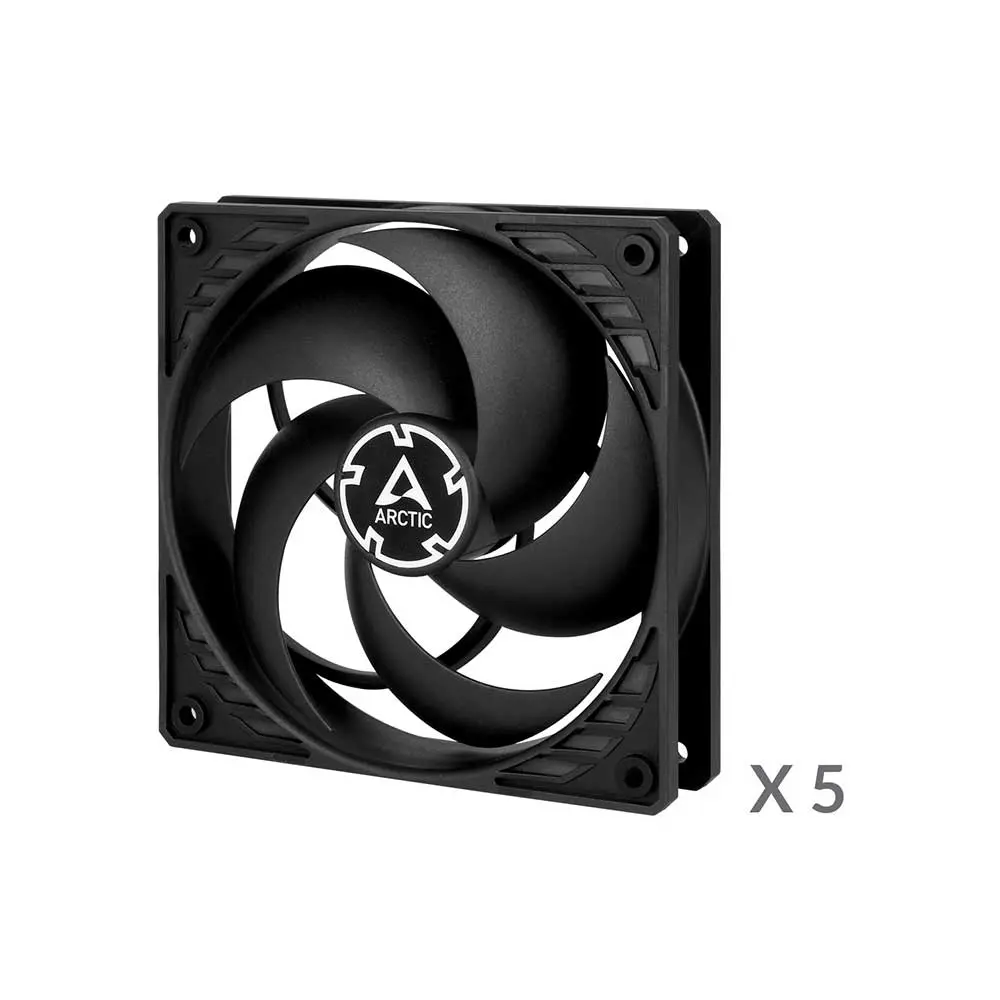

Arctic P12 Pwm Pst 120mm Cabinet Fan 5 Pack Black
During the development of the new
Arctic
P12 PWM PST 120mm, special emphasis was placed on a focused airstream and thus a high static pressure. The
fan
guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.
| General Specifications | |
| Performance | |
| Fan Speed | 200—1800 rpm PWM Controlled (0 rpm below 5 % PWM) |
| Airflow | 56.30 cfm | 95.70 m³/h |
| Static Pressure | 2.20 mmH2O |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Operating Ambient Temperature | 0—40 °C |
| Electric Characteristics | |
| Typical Voltage | 12V DC |
| Starting Voltage | 3.9V |
| Current | Voltage | 0.1 A | 12 V DC |
| Cable Length | 400mm |
| Size & Weight | |
| Length | 120mm |
| Width | 120mm |
| Height | 25mm |
| Weight | 145g |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
|
Brand |
Arctic |
|
Fan Size |
120 mm |
|
Warranty |
6 Years |
