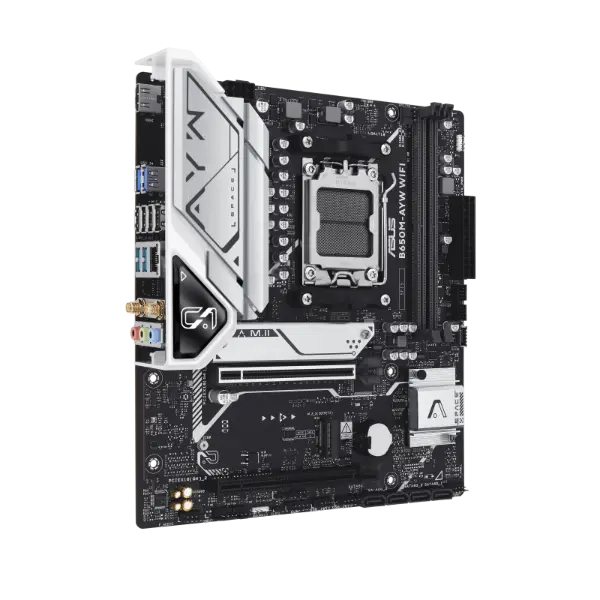

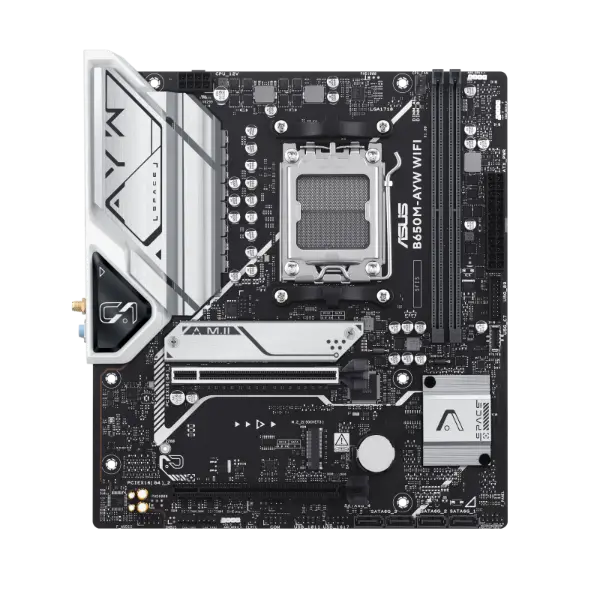

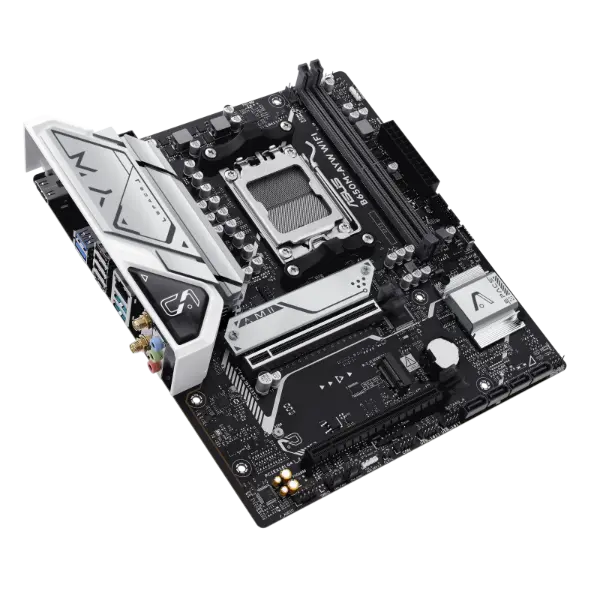

Asus B650M-AYW WIFI Motherboard
The ASUS B650M-AYW WiFi is a sleek micro-ATX motherboard built on the AMD B650 chipset and compatible with AM5 Socket Ryzen 7000/8000/9000-series processors. Designed for today and tomorrow, it brings future-ready features like DDR5 support (up to 96 GB, 8000+ MT/s OC) with EXPO™ and OptiMem II optimizations; dual M.2 slots (one PCIe 5.0 x4, one PCIe 4.0 x4) alongside SATA 6 Gb/s; and blazing-fast connectivity including Realtek 2.5 Gb Ethernet, Wi-Fi 6, USB 10 Gbps Type-A, and USB 5 Gbps Type-C®. It also boasts robust cooling (VRM, M.2, and chipset heatsinks with hybrid fan headers), Aura Sync RGB lighting, Two-Way AI Noise Cancellation, and the comprehensive control tools and protection typically found in ASUS boards—making it a versatile, high-performance choice for modern AMD builds.
Key Features
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
| Platform | AMD |
| Socket | AM5 |
| Cpu Type Support | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 8000+ |
| Max Memory Support | 96 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics Port | 1 x HDMI |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site. ** Specifications vary by CPU types. |
| Wireless Networking | WiFi 6 |

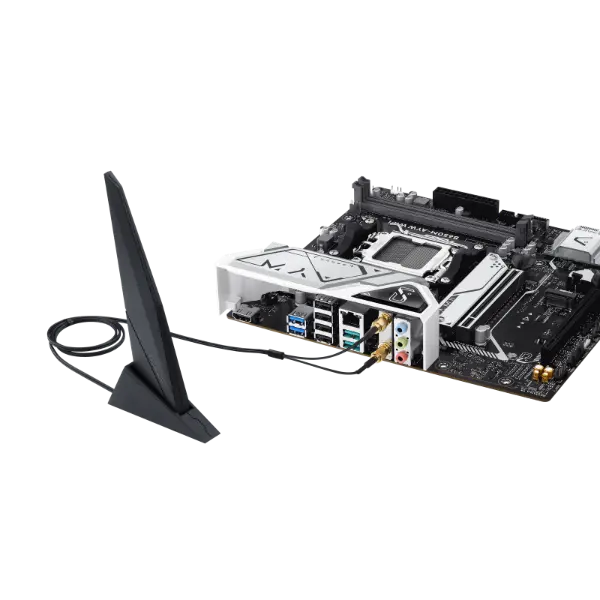

| Back Panel I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
