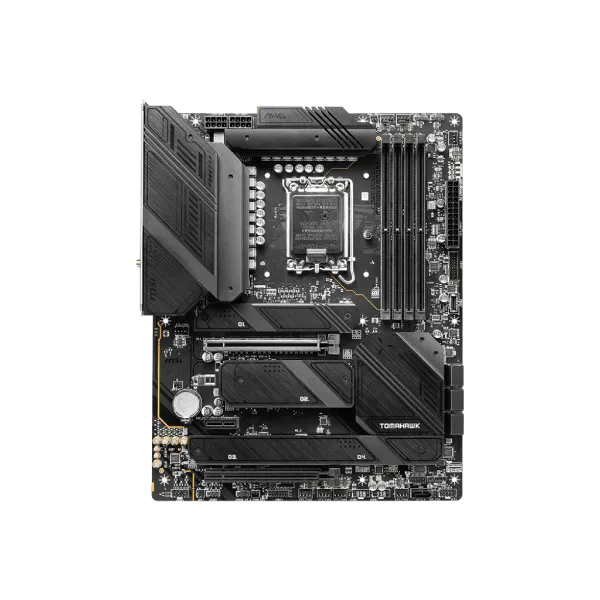

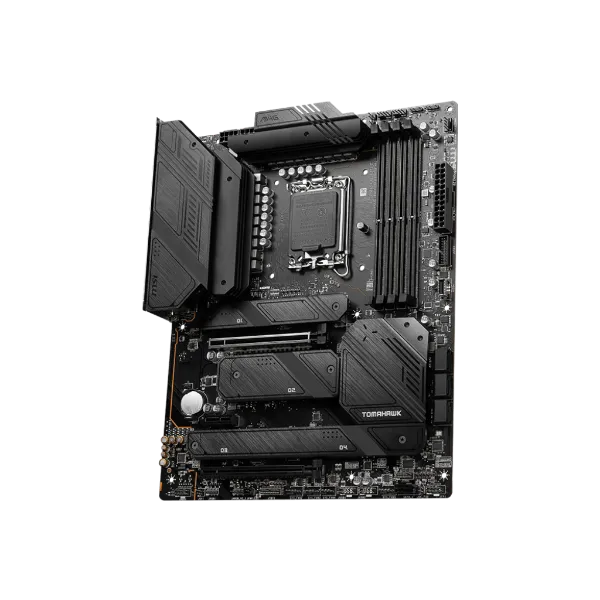

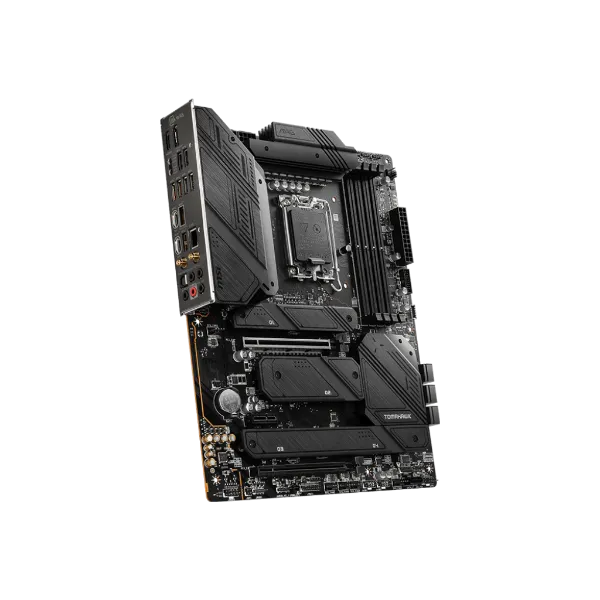

MSI MAG Z790 TOMAHAWK WIFI DDR5 MOTHERBOARD
HARDWARE
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
POWER SOLUTION
16 PHASES MIRRORED POWER ARANGEMENT WITH 90A SPS
Unleash and sustain the maximum performance with a premium VRM design built with a total of 16 Phases Mirrored Power Arrangement with 90A SPS. Combining dual power connectors and Power Stage, MAG Z790 Series are ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
PERFORMANCE
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
Brand |
MSI |
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
CPU Socket Type |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
CPU Type Support |
Windows 10 build 21H1 and Windows 11 |
Compaitability |
Intel |
Chipset |
Intel Z790 |
Number of Memory Slots |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
Maximum Memory Supported |
256 GB |
Memory Type Supported |
1R 7200MHz |
Channel Supported |
Dual Channel |
Expansion Slots |
2x PCIe x16 slots |
Storage Supported |
4 x M.2 slots |
USB Ports |
Type A |
Audio Type Supported |
7.1-Channel High Definition Audio |
HDMI |
1 x HDMI |
Form Factor |
Micro ATX |
LED Lighting |
RGB |
INTERNAL IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |

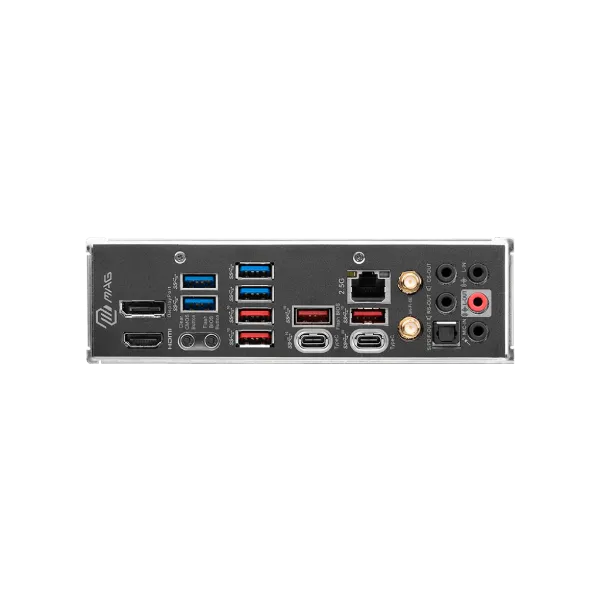

BACK PANEL PORTS |
DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2×2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT |
