ASUS PRIME B760M-A D4 mATX MOTHERBOARD

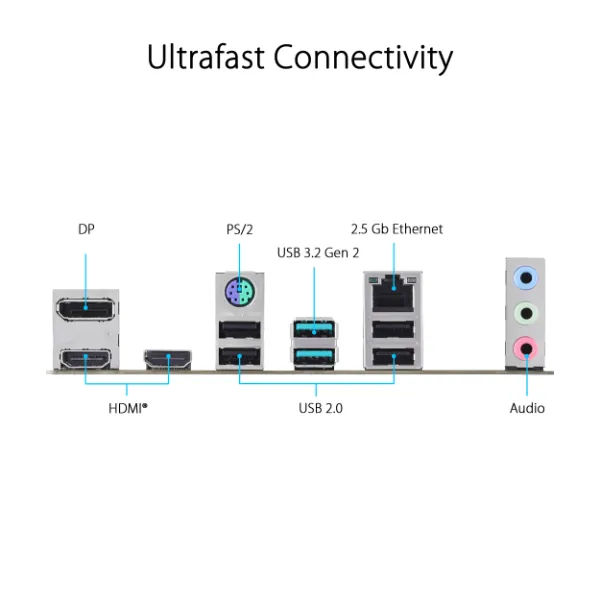

(Intel B760 LGA 1700 with PCIe 4.0, 2 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, 2 x HDMI, DP, USB 3.2 Gen 2×2 Type-C, front USB 3.2 Gen 2 Type-C, Aura Sync)

About this item

  • 1 x PCIe 3.0 x1
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports (INTERNAL)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A ) (BACK)
  • Intel® 13th & 12th Gen Processors
[dsalv]

Original price was: ₹21,439.00.Current price is: ₹15,314.00.

Incl Tax

Availability: Out of stock

Availability: Out of stock

Product Page Icons

 [wcsp_cross_sell]

MPN: ITGO29263 SKU : ASUS PRIME-B760M-A-D4 Category :

Asus

Authorized Dealer

ASUS PRIME B760M-A D4

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

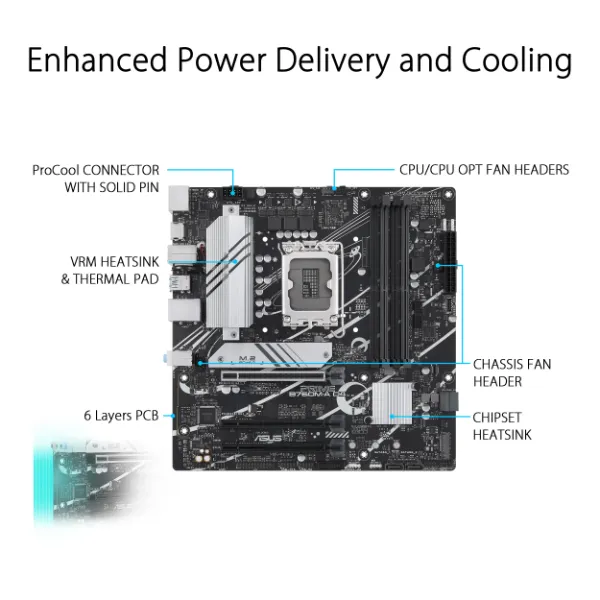

ProCool Connector

Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. ASUS PRIME B760M-A D4

Brand

ASUS

Compaitability

Intel

CPU Type Support

13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Chipset

Intel B760 Chipset

Number of Memory Slots

4 x DIMM

Maximum Memory Supported

128GB

Memory Type Supported

DDR4

Channel Supported

Dual Channel

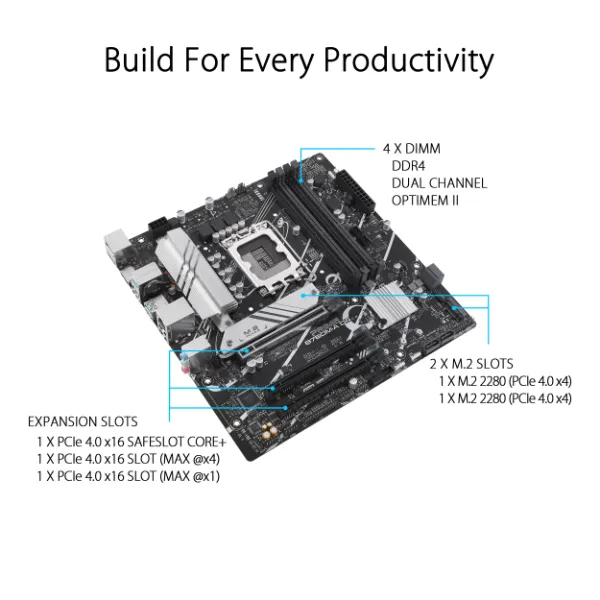

Expansion Slots

1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x1 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Supported

2 x M.2 slots and 4 x SATA 6Gb/s ports

I/O (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port

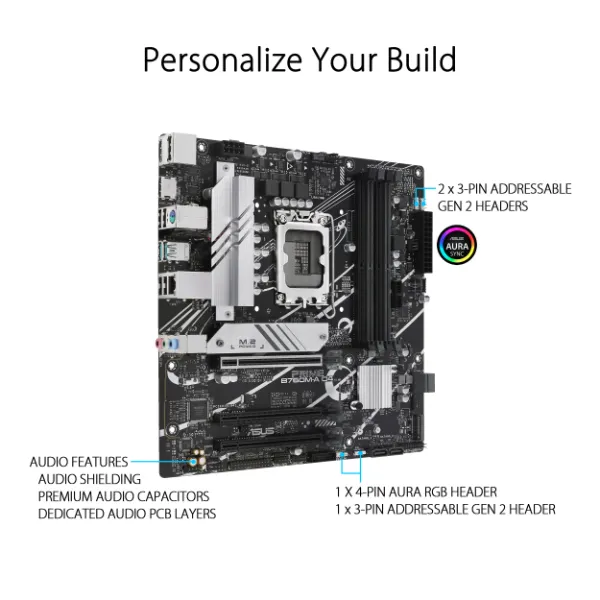

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

USB Ports

1 x USB 2.0 header supports 1 additional USB 2.0 port, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

HDMI

2 x HDMI

Form Factor

mATX Form Factor

LED Lighting

RGB

OS Supported

Windows 11, Windows 10 64-bit

Warranty

3 Years
