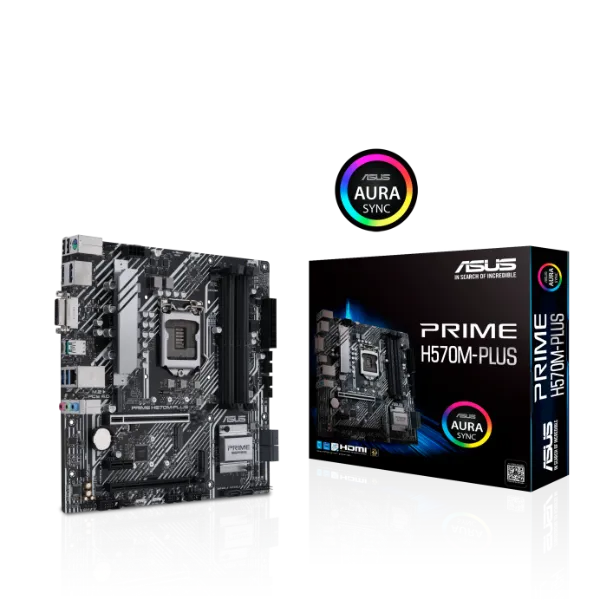

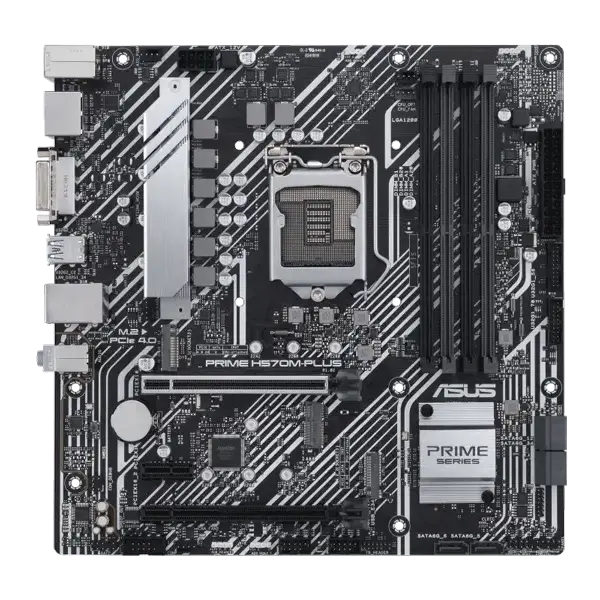

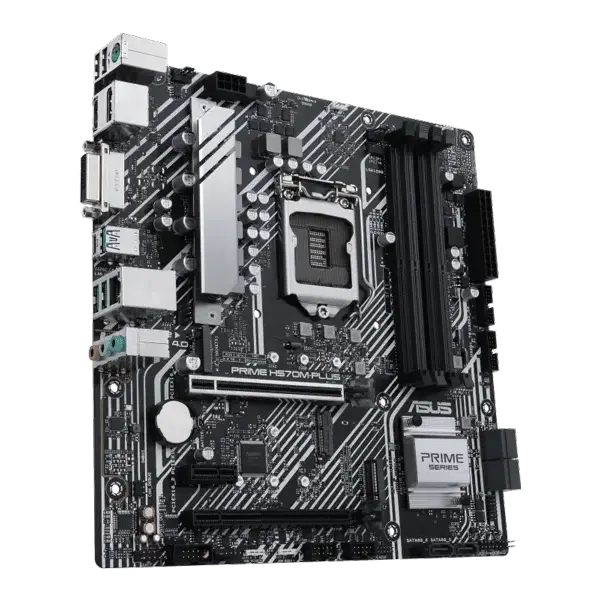

ASUS PRIME H570M-PLUS Micro ATX DDR4 Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10
th
and 11
th
Generation Intel
®
Core™ processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H570M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
-
- Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processors
-
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
-
- Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
-
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
Ultrafast connectivity: PCIe 4.0, Dual M.2, Intel 1 Gb
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
-
- Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt 4 header support
Brand |
ASUS |
Compaitability |
Intel |
Series |
Prime |
CPU Socket Type |
LGA 1200 |
CPU Type Support |
10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Celeron Processors, Intel Pentium Gold |
Chipset |
Intel H570 |
Onboard Video Chipset |
CPU with integrated graphic |
Number of Memory Slots |
4x288pin (DDR4) |
Maximum Memory Supported |
128 GB |
Memory Type Supported |
DDR4 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCI Express, 16 x PCI Express 3.0, 16 x PCI Express 4.0 |
Storage Supported |
6 x SATA 6Gb/s |
Ethernet Cable Support |
‘- |
Ethernet Lan Chipset |
Intel I219-V |

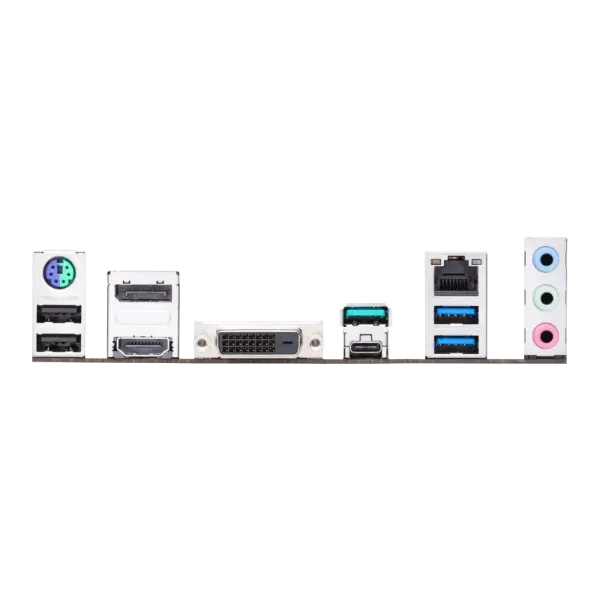

USB Ports |
Type A, Type C |
Audio |
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback Audio Features |
HDMI |
1 x HDMI |
OS Supported |
Windows 10 64-bit |
