ASUS PRIME X670-P CSM DDR5 Motherboard
PCIe 5.0 Slot
Prime X670 motherboards offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
PCIe 5.0 M.2 Support
PRIME X670-P WIFI offers a total of three M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers

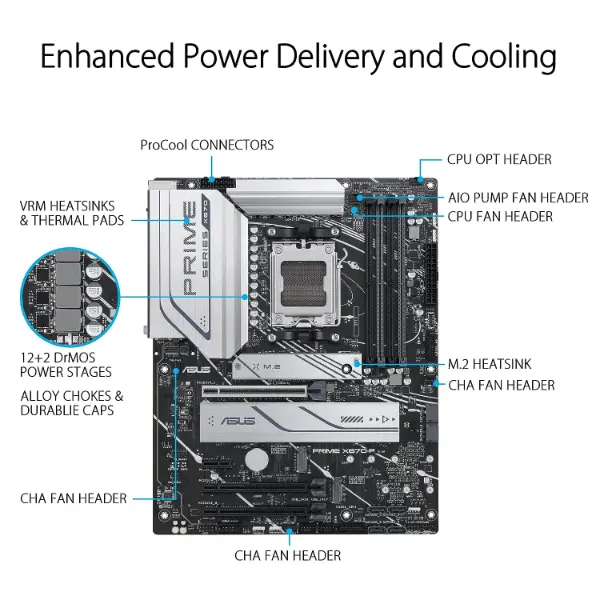

VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI is geared to cater to the demands of these high-core-count CPUs.
1. ProCool Connectors
Proprietary connectors augment the motherboard’s link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
2. 12+2 DrMOS Power Stages
12+2 DrMOS power stages combine high-side and low-side MOSFETS and drivers into packages rated for 60 amperes each, delivering power, efficiency, stability and performance to current and future AMD processors.
USB 3.2 Gen 2×2 Type-C
A batch of USB ports supports high-end rigs loaded with peripherals, including both front and rear USB Type-C connectors with ultrafast USB 3.2 Gen 2×2 for transmission speeds of up to 20Gbps.
BIOS FlashBack
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
USB4 Support
PRIME X670 motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to the fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
Brand |
ASUS |
Compaitability |
AMD |
CPU Socket Type |
AM5 |
CPU Type Support |
AMD Ryzen™ 8000 Series Desktop Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**, Ryzen 7000 Series |
Number of Memory Slots |

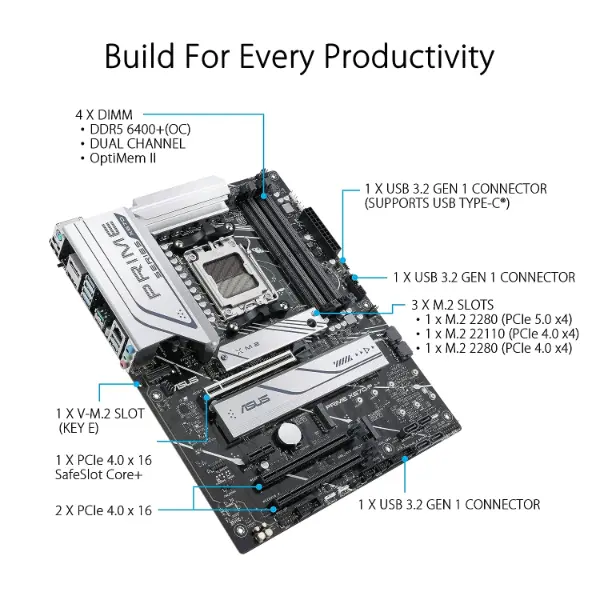

4 x DIMM, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCIe 4.0 x16 slot (supports x16 mode), 2 x PCIe 4.0 x16 slots (support x4 mode) |
Storage Supported |
2 x M.2 slots, 6 x SATA 6Gb/s ports, AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
Ethernet Cable Support |
yes |
Ethernet Lan Chipset |
1 x Realtek 2.5Gb Ethernet |
Audio |

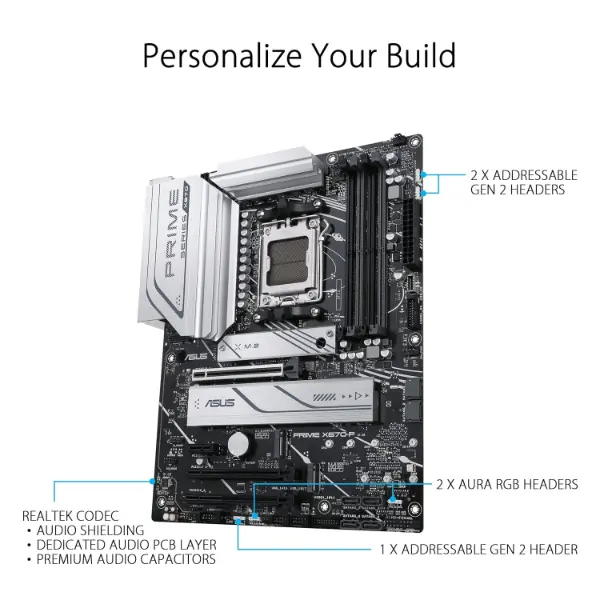

Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
OS Supported |
Windows 10 64-bit, Windows 11 |
Form Factor |
ATX |
Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
Back Panel I/O Ports |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
Warranty |
3 Years |
