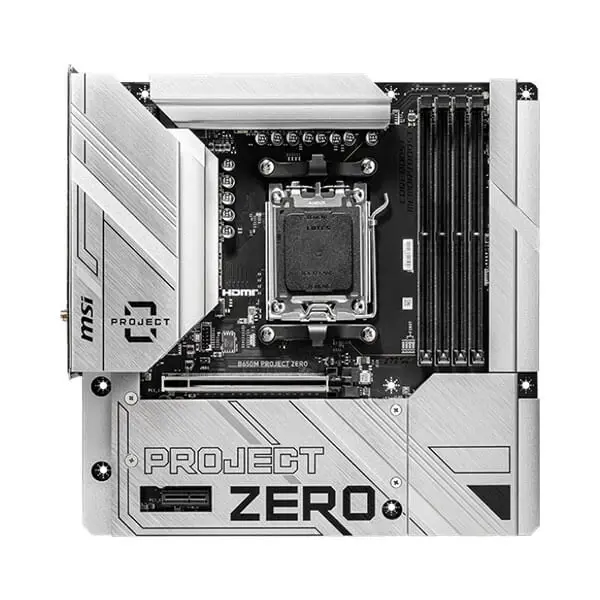

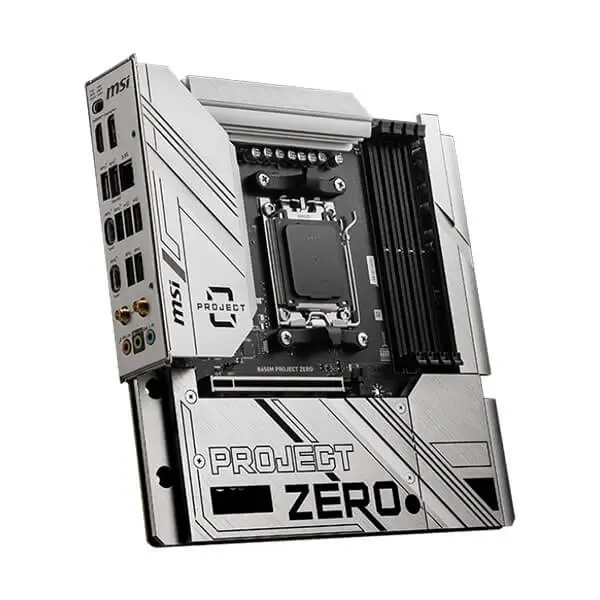

MSI B650M Project Zero Wifi Am5 Micro Atx DDR5 Motherboard (B650M-PROJECT-ZERO)

Socket AM5

Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7600+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

• • 1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

• • 1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

* SATA_A1_A2 do not support RAID function.

• • 2x USB 2.0 (Rear)

• • 4x USB 2.0 (Front)

• • 2x USB 3.2 Gen1 Type A (Rear)

• • 2x USB 3.2 Gen1 Type A (Front)

• • 3x USB 3.2 Gen2 Type A (Rear)

• • 1x USB 3.2 Gen2 Type C (Rear)

• • 1x USB 3.2 Gen2 Type C (Front)

• • 1x USB 3.2 Gen2x2 Type C (Rear)

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

7.1-Channel High Definition Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

• • 1x Power Connector(ATX_PWR)

• • 2x Power Connector(CPU_PWR)

• • 1x CPU Fan

• • 1x Pump Fan

• • 3x System Fan

• • 2x Front Panel (JFP)

• • 1x Chassis Intrusion (JCI)

• • 1x Front Audio (JAUD)

• • 3x Addressable V2 RGB LED connector (JARGB_V2)

• • 1x TPM pin header(Support TPM 2.0)

• • 4x USB 2.0 ports

• • 2x USB 3.2 Gen1 Type A ports

• • 1x USB 3.2 Gen2 Type C ports

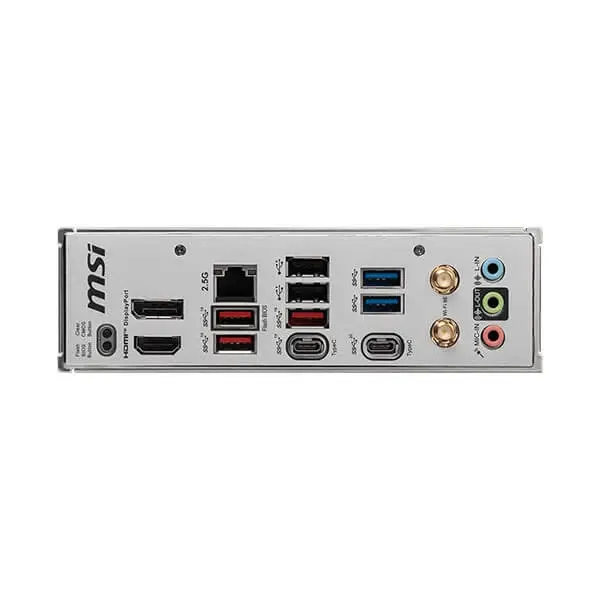

• • DisplayPort

• • 2.5G LAN

• • USB 2.0

• • USB 3.2 Gen 1 5Gbps (Type-A)

• • Wi-Fi / Bluetooth

• • Audio connectors

• • Flash BIOS Button

• • Clear CMOS Button

• • HDMI™

• • USB 3.2 Gen 2 10Gbps (Type-A)

• • USB 3.2 Gen 2 10Gbps (Type-C)

• • USB 3.2 Gen 2×2 20Gbps (Type-C)

243.84mmx243.84mm
