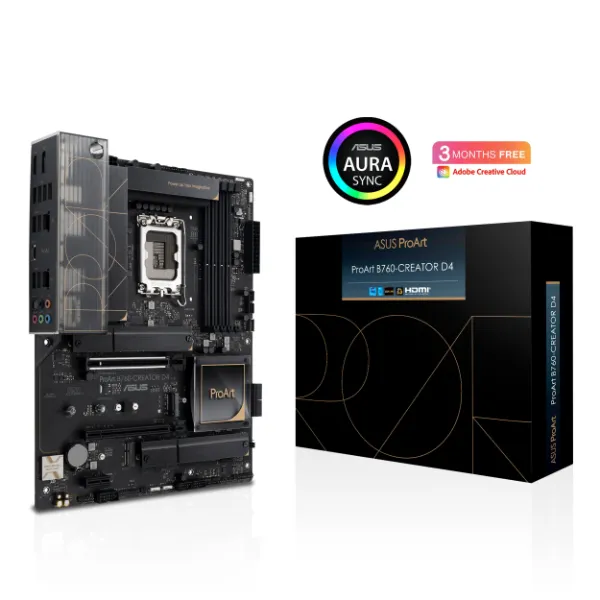

ASUS PROART B760-CREATOR D4 ATX MOTHERBOARD

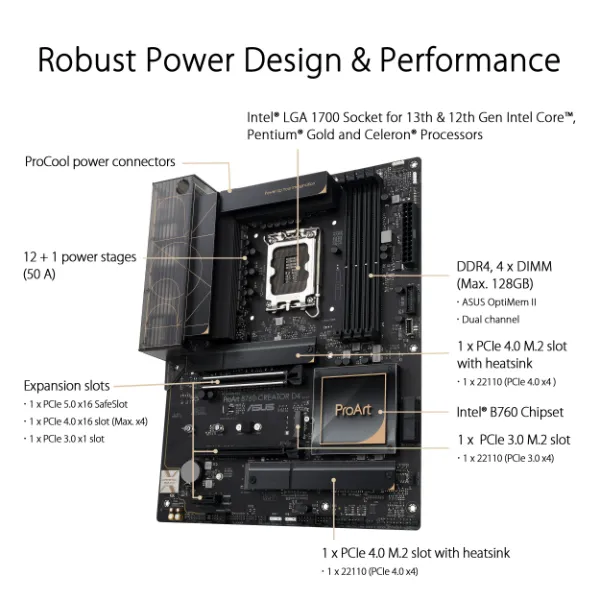

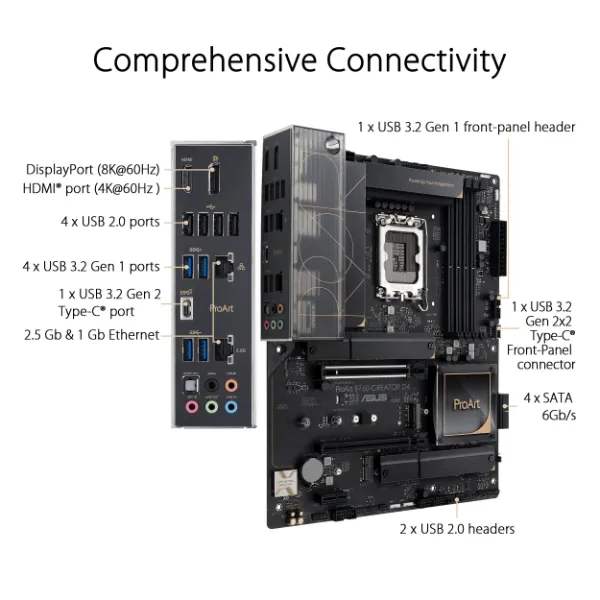

ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector and a ThunderboltTM 4 header.

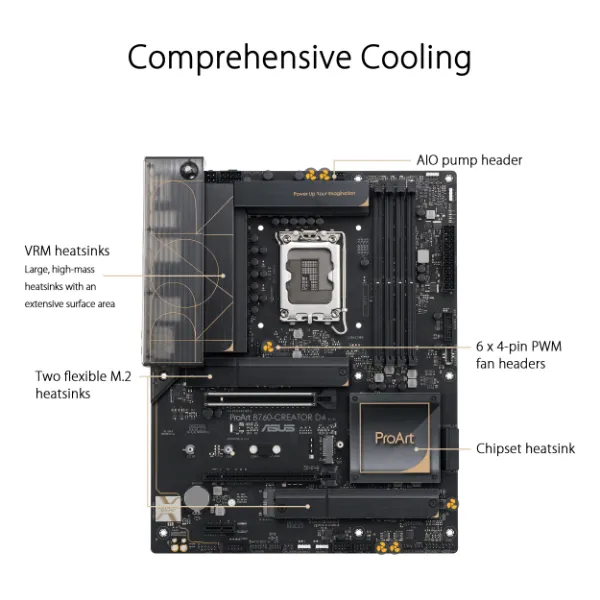

Multiple temperature sources
Each header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEF
4-pin PWM/DC fan headers
Every onboard header supports auto-detection of PWM or DC fans.

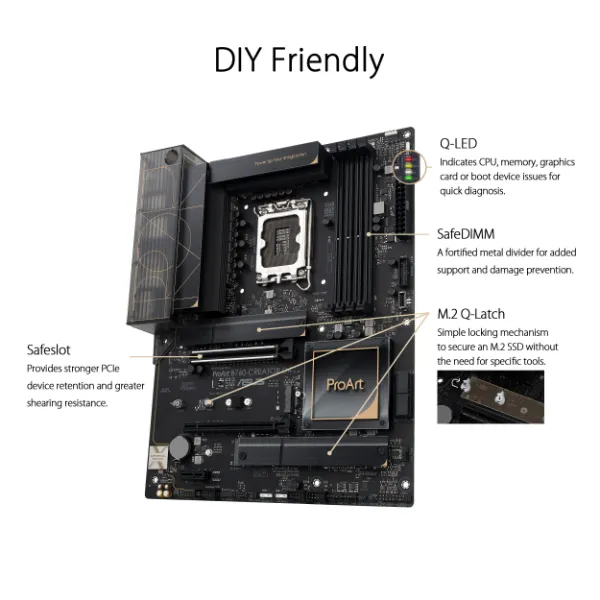

Q-DIMM
One‑sided clips for simple and secure handling of memory modules.
Q-LED
Indicates CPU, memory, graphics card or boot device issues for quick diagnosis.
SafeDIMM
A fortified metal divider for added support and damage prevention.
Brand |
ASUS |
Compaitability |
Intel |
CPU Socket Type |
LGA1700 |
CPU Type Support |
13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
Chipset |
Intel B760 Chipset |
Number of Memory Slots |
4 x DIMM |
Maximum Memory Supported |
128GB |
Memory Type Supported |
DDR4 |
Channel Supported |
Dual Channel |
Expansion Slots |
1 x PCIe 3.0 x1 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 5.0/4.0/3.0 x16 slot |
Storage Supported |
3 x M.2 slots and 4x SATA 6Gb/s ports |
I/O (Internal) |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playbackAudio Features – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
USB Ports |
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports, 1 x USB 3.2 Gen 2 Type-C® port, 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®), 2 x USB 2.0 headers support additional 4 USB 2.0 ports, 4 x USB 2.0 ports (4 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
OS Supported |
Windows 11 64-bit, Windows 10 64-bit |
HDMI |
1 x HDMI |
Form Factor |
ATX Form Factor |
LED Lighting |
RGB |
Warranty |
3 Years |
