ASUS ROG STRIX B650E-F GAMING WIFI DDR5 Motherboard
BIOS FLASHBACK
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band.WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
2.5G ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet
UNDENIABLY ROG STRIX
An overall dark aesthetic is accented with punchy brand-centric details and a logo that glows with fully-customizable RGB lighting. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. Pair the Strix B650E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix B650E-F Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
Brand |
ASUS |
Compaitability |
AMD |
CPU Type Support |
Ryzen 7000 Series |
Chipset |
AMD B650 |
Number of Memory Slots |
4 x DIMM |
Maximum Memory Supported |
128GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
Expansion Slots |

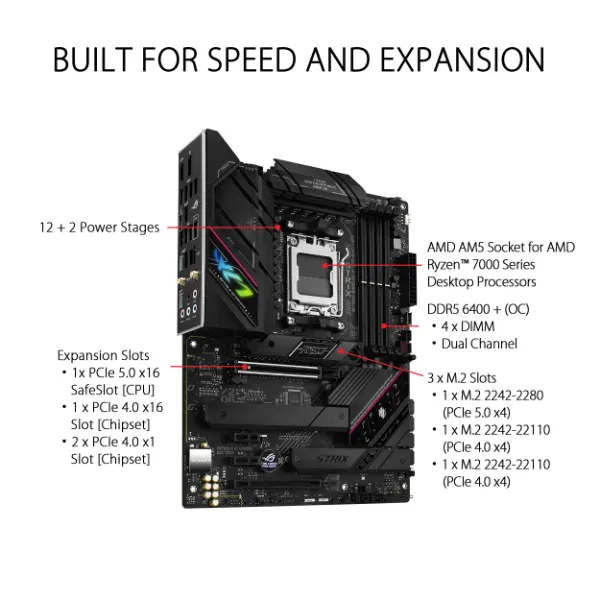

1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) |
Storage Supported |
4 x M.2 slots, 4 x SATA 6Gb/s ports |
Ethernet Cable Support |
yes |
Ethernet Lan Chipset |
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
Bluetooth Type |
Bluetooth v5.2 |
Audio |

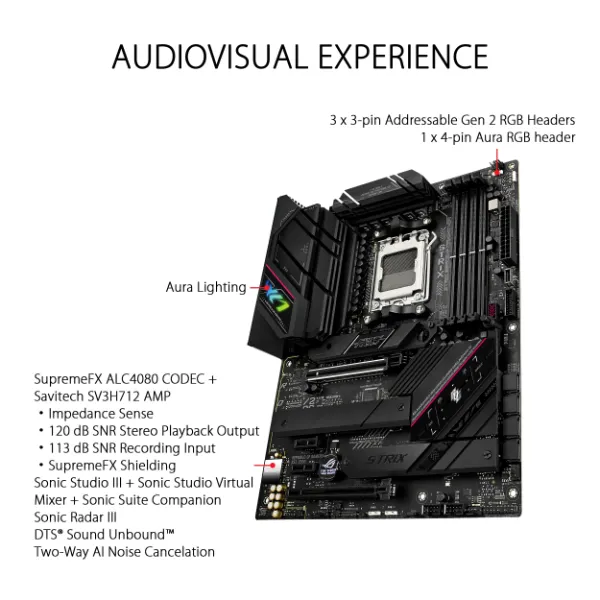

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
Internal I/O |

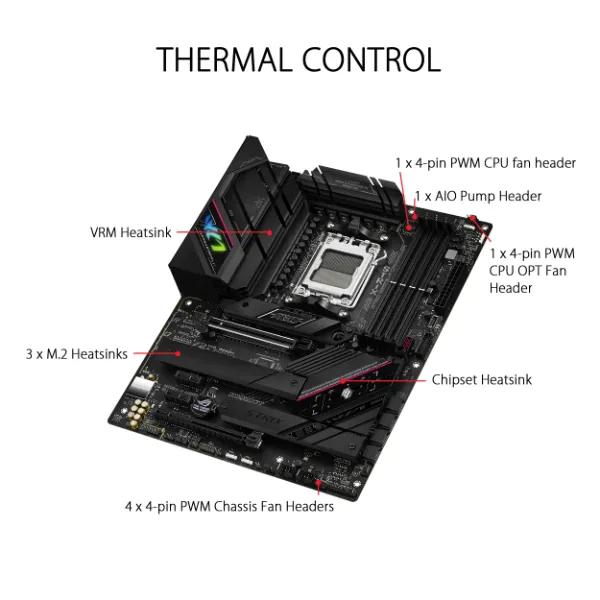

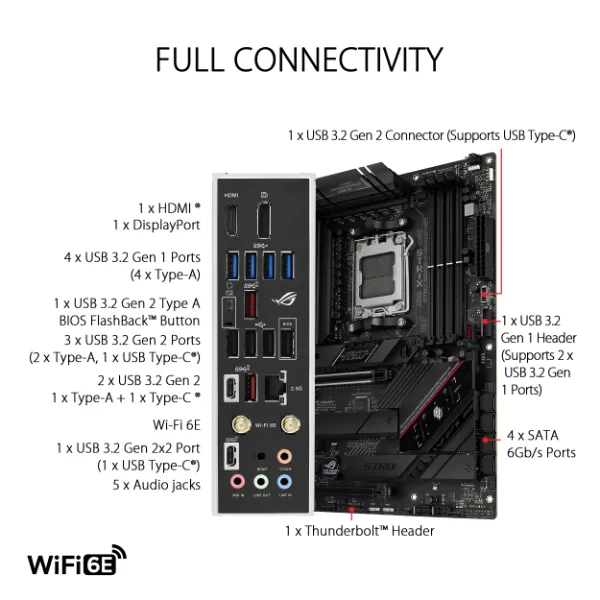

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™header 1 x COM_DEBUGheader |
OS Supported |
Windows 11 64-bit |
Form Factor |
ATX Form Factor |
Warranty |
3 Years |
