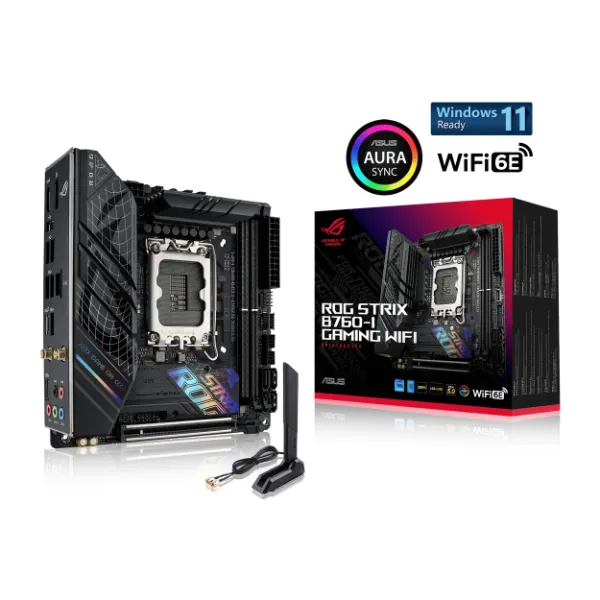

ASUS ROG STRIX B760-I GAMING WIFI DDR5 Motherboard

ASUS ROG STRIX B760-I GAMING WIFI DDR5 MOTHERBOARD

Let your rig run wild with the ROG Strix B760-I

, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13

^th

Gen support thanks to its powerful VRM and thermal solution.

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

PRE-MOUNTED I/O SHIELD

The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.

POWER DESIGN

•
  POWER ARCHITECTURE​


  8 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13

  ^th

  Gen processors through any workload with ease.

•
  ALLOY CHOKES AND DURABLE CAPACITORS


  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

•
  EIGHT-LAYER PCB


  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

•
  DDR5 DOMINATION


  ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

• AEMP II


  ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix B760-F to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.

• COOLING


  •

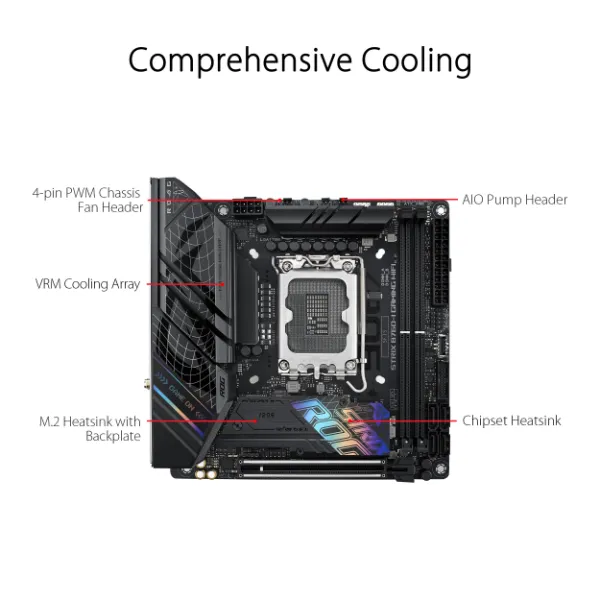

    VRM HEATSINK ARRAY

    Substantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through diagonal slits, so the VRM stays cool even in air-restricted systems.
  •
    M.2 HEATSINKS

    A large heatsink covers the front NVME SSD slot to help keep your drive at optimal temperatures for consistent performance and reliability.
  •
    M.2 BACKPLATE

    Additional mass is underneath the slot to deal with the thermal load of high-performance M.2 drives.
  •
    CPU FAN HEADER

    Positioned near the top of the motherboard, a PWM/DC fan header gives easy access for CPU coolers.
  •
    AIO PUMP FAN HEADER

    A dedicated PWM/DC header connects self-contained water-cooling setups.
  •
    4-PIN FAN HEADER

    The Strix B760-I features a chassis fan header that auto-detects any PWM or DC fan connected to it.

  •

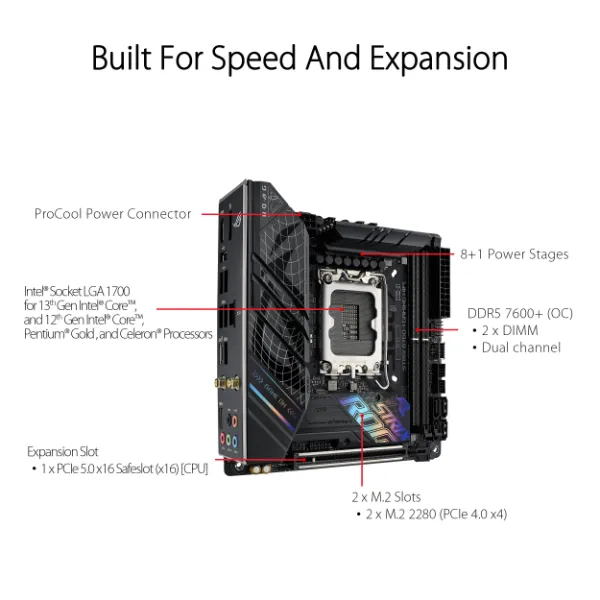

    PCIE PERFORMANCE


    The x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage comes courtesy of the pair of PCIe 4.0 M.2 slots, one under the front-side heatsink, and the other positioned on the back to save space.

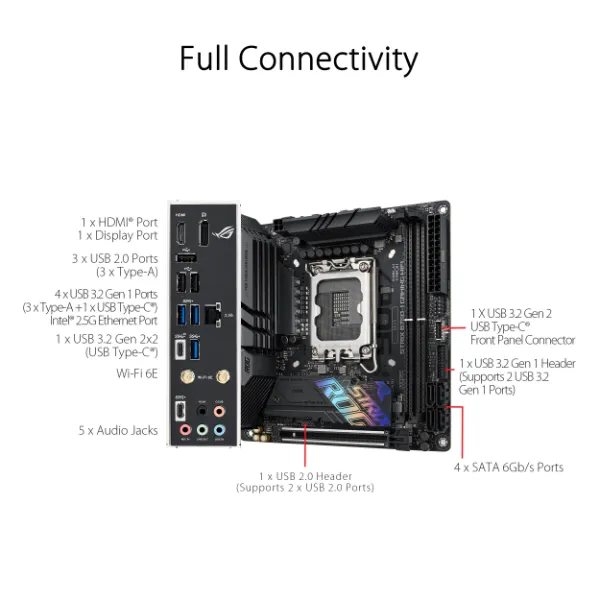

  • USB


    The Strix B760-I comes loaded with multiple high-speed USB options. Five of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2×2 Type-C

    ^®

    port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.
