ASUS ROG THOR 850G Modular 80 Plus PLATINUM Power Supply
HARNESS THUNDER
Inside and out, our first PSU is packed with innovative ideas. Externally, Aura Sync RGB illumination and an integrated OLED information panel enable unique customization and monitoring options for your ROG gaming rig. Under the hood, high-quality capacitors, a 135mm Wing-blade fan, and large heatsinks allow the ROG Thor 850W to achieve LAMBDA A+ and 80 PLUS
®
Platinum certifications, making it ideal for PC enthusiasts who demand performance perfection.
OLED POWER DISPLAY
The ROG Thor 850W Platinum is the first PC PSU in the world to feature an integrated OLED panel, offering a real-time display of power draw. Now you can see at a glance how much juice your rig is using.

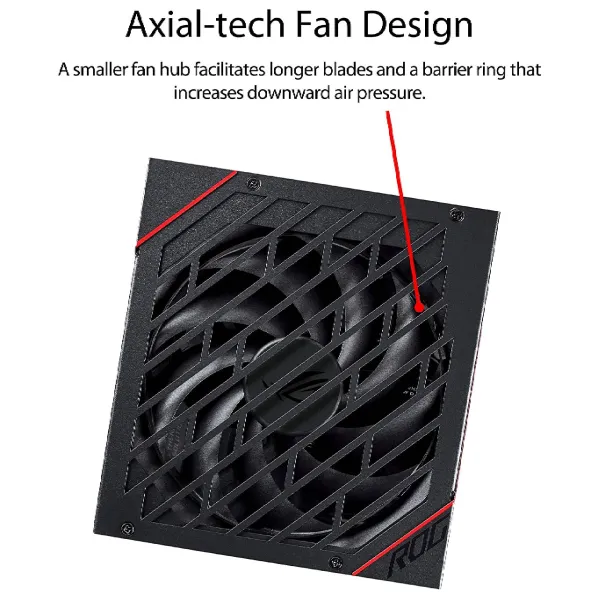

WING-BLADE FAN
We’ve equipped the ROG Thor 850W Platinum with a 135mm patented Wing-blade fan to maximize component lifespan. IP5X dust-resistance keeps it spinning freely and 0dB technology utilizes thermal sensors to allow the fan to switch off completely at lower wattages — enabling totally silent operation.

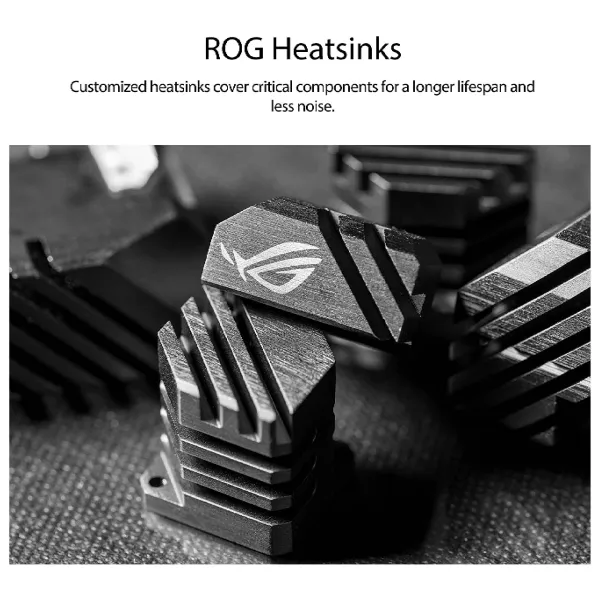

ROG HEATSINK
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the ROG Thor 850W Platinum. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise never exceeds 20dB, allowing ROG Thor to achieve LAMBDA A+ certification.
80 PLUS PLATINUM CERTIFICATION
The ROG Thor 850W Platinum utilizes top-end Japanese capacitors to ensure efficient operation. This has earned an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% at 50% load. The increased efficiency produces less heat, reducing fan noise and increasing reliability.

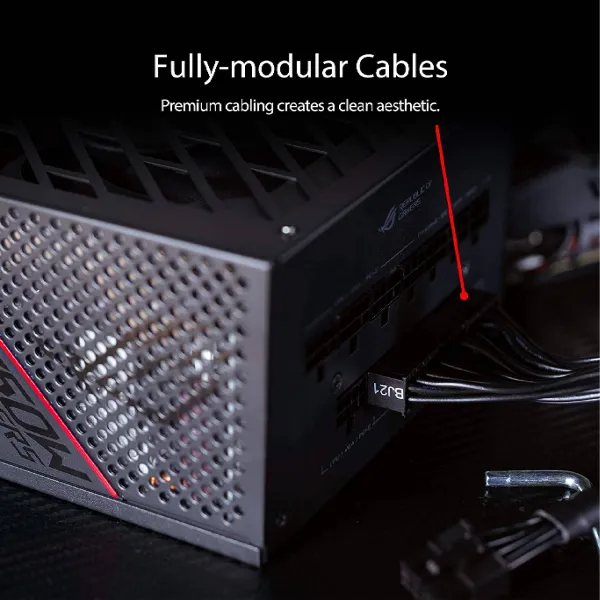

SLEEVED CABLES
We know you’ll want to get building right away, so we’ve included high-quality sleeved and standard cables. The sleeved cables include one 24-pin, two 6+2-pin PCI-e cables and two 8-pin CPU cables. We’ve also included an RGB connector that plugs into the addressable RGB header on your ASUS motherboard.
*For something punchier than pure black, we’ve teamed up with CableMod to offer a 20% discount. Customize cable colors, length, and materials to match your rig.
The ROG Thor comes with two types of PCI-E power cables in the box: an individually sleeved set for showcase systems, and, to fuel heavily overclocked graphics cards, cables with embedded capacitors that reduce voltage ripple.
Brand |
ASUS |
PSU FORM FACTOR |
ATX |
Maximum Power |
850W |
Energy Efficiency |
80 Plus Platinum |
Modular |
Yes |
PFC Type |
Active-PFC |
Input Voltage Range |
100-240Vac |
ATX (24 pin) |
1 |
PCI-E (6+2 pin) |
4 |
SATA (15 pin) |
12 |
MOLEX (4 pin) |
2 |
DC Output Voltage |
‘+3.3V +5V +12V -12V +5Vsb |
Maximum Load |
20A 20A 71A 0.3A 3A |
Combined Load |
100W 100W 852W 3.6W 15W |
Connectors |
MB 24/20-pin*1 CPU 8/4-pin*2 PCIE 8/6-pin*4 SATA *12 Peripheral 4-pin*5 Floppy*1 |
Package Contents |
Power Cable x1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCI-E 1-to-1 Cable x2 (675mm) PCI-E 1-to-2 Cable x1 (675+75mm) SATA 1-to-2 Cable x1 (400+120mm) SATA 1-to-4 Cable x2 (400+120+120+120mm) Peripheral 1-to-2 Cable x1 (350+120mm) Peripheral 1-to-3 Cable x1 (450+120+120mm) Floppy Cable x1 (101mm) Addressable RGB Cable x2 (800mm) ROG sticker x 1 ROG cable tie x 4 Sleeved Cable Combs (6-pin) x 2 Sleeved Cable Combs (8-pin) x 6 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 10 User Manual x 1 |
FDD (4 pin) |
1 |
Weight |
1.865kg (Single) |
Warranty |
10 Years |
