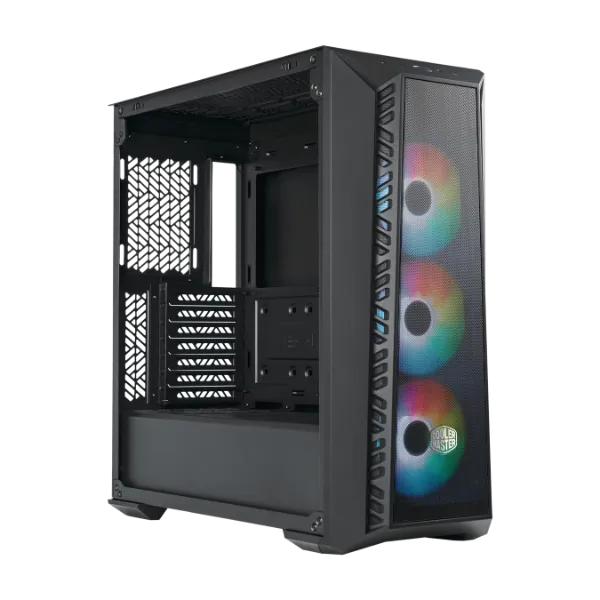

AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
MasterBox 520 Mesh is available in both black and white so you can choose the color that best matches your setup!
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.
SCREWLESS & TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.
(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.
UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.
HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
|
Brand |
Cooler Master |
|
Series |
MasterBox Series |
|
Case Type |
Mid Tower |
|
Materials |
Mesh, Plastic, Steel, Tempered Glass |
|
Motherboard Support |
ATX, E-ATX, Micro ATX, Mini ITX, SSI CEB |
|
Expansion Slots |
7 |
|
Drive Bays |
2.5″ Drive Bay, 3.5″ Drive Bay |
|
3.5″ Drive Bays |
2 |
|
2.5″ Drive Bays |
3 |
|
I/O Panel |
1x 3.5mm Headset Jack (Audio+Mic), 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C |
|
Pre-installed Fans – Front |
3x CF120 ARGB |
|
Fan Support – Top |
2 x 140mm, 3 x 120mm |
|
Fan Support – Front |
2x 140mm, 3 x 120mm |
|
Fan Support – Rear |
1 x 120mm |
|
Radiator Support – Top |
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support – Rear |
120mm |
|
Power Supply Support |
ATX |
