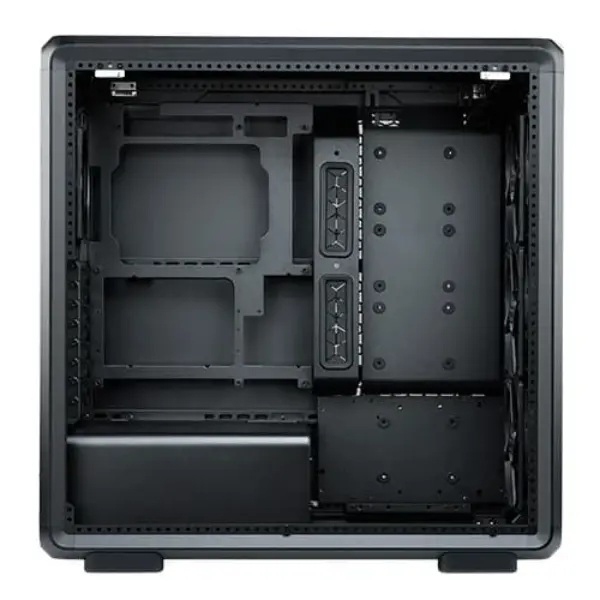

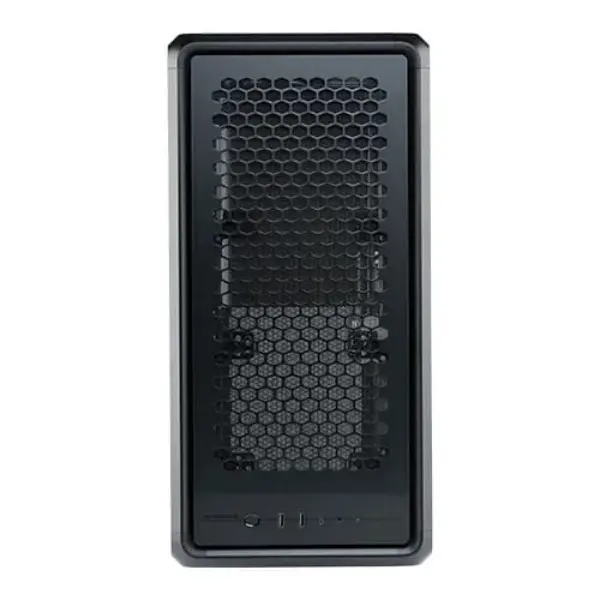

Cooler Master Masterframe 600 Mid Tower Cabinet
The Cooler Master MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with Freeform 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits
Features:
The MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization.
Designed with Freeform 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
FreeForm 2.0 Exo-structure:
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Flexible Motherboard Support:
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Versatile & Maker-Driven:
Its open-source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Extensive Cooling Support:
Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.
Ample GPU Clearance:
Accommodates graphics cards up to 485mm, offering plenty of space for high-end GPUs.
Included GPU support bracket:
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Specification
| Model Number | MF600-KGNN-S00 |
| Color | Black |
| Materials – Exterior | SGCC Steel, Aluminum |
| Materials – Side panel (Right / Left) | Tempered Glass / Aluminum |
| Dimensions (LxWxH) | 531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions) |
| Volume | 73.6 L (Liters Incl. Protrusions) |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, SSI-CEB |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 0 |
| 2.5″ / 3.5″ Drive Bays (Combo) | 2 |
| 2.5″ Drive Bays | 3 |
| I/O Panel – USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2×2 Type C |
| I/O Panel – Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| Pre-installed Fans – Front | Mobius 140 mm x 3 (non-ARGB) – Available for Black Model Only, SickleFlow ARGB 140 mm x 3 – Available for Silver Model Only |
| Pre-installed Fans – Top | N/A |
| Pre-installed Fans – Rear | Mobius 120 mm x 1 (non-ARGB) – Available for Black Model Only, SickleFlow ARGB 120 mm x 1 – Available for Silver Model Only |
| Fan Support – Front | 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm |
| Fan Support – Top | 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm |
| Fan Support – Rear | 1x 120mm |
| Fan Support – Side | 3x 120mm, 3x 140mm |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm) |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Side | 240 / 280 / 360 / 420 mm |
| Dust Filters | Top, Front, Bottom, Right side panel |
| Clearance – CPU Cooler | 190mm |
| Clearance – PSU | 235mm |
| Clearance Graphics Card | L: 485 mm (incl. power connector), H: 190 mm (incl. power connector) |
| Included Accessories | GPU Support Bracket (Available for Black Model Only), GPU Support Bracket / ARGB PWM Hub (Available for Silver Model Only) |
| Cable Routing – Behind Motherboard Tray | 43mm |
| Case Size | Mid Tower |
| Series | MasterFrame Series |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
