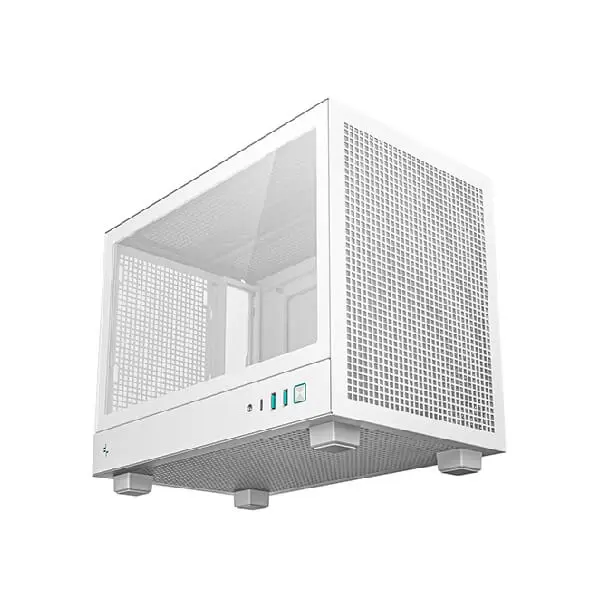

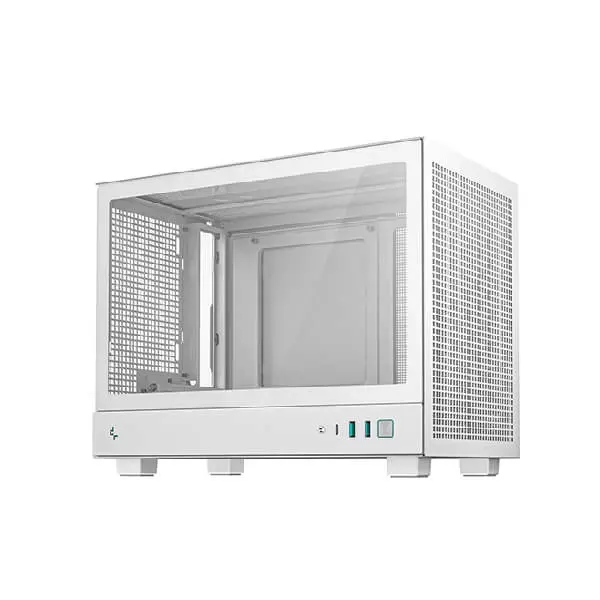

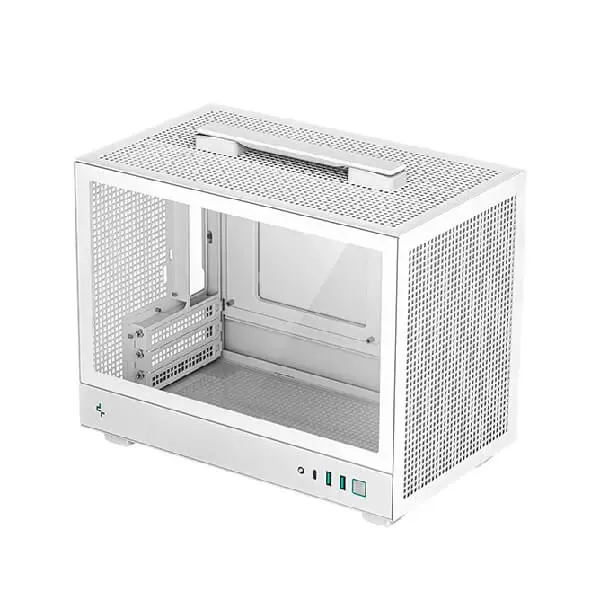

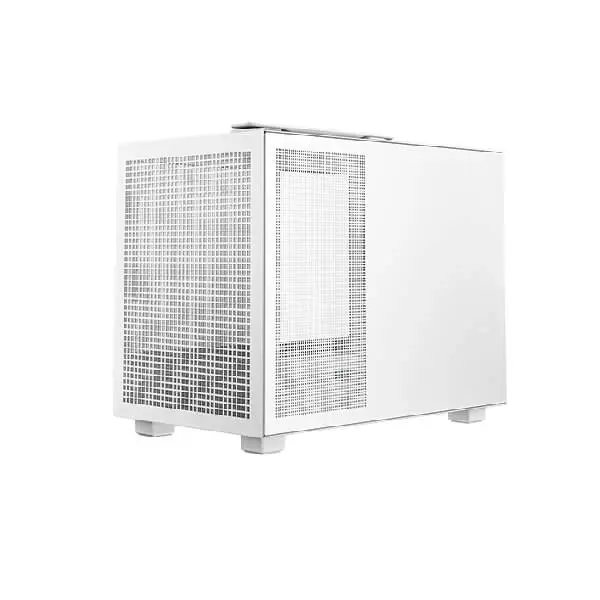

DeepCool CH160 Wh Mini-Itx Mini Tower Cabinet (White)
DeepCool
CH160 WH
Cabinet
is a Small Form Factor Ultra-Portable High Airflow M-Itx Case. It Can support up to 172mm Height CPU Air Cooler, up to 305mm GPU Length, The Internal Layout Provides a Lot of Flexibility for Drives and PSU Options
Features:
The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
Specifications:
| Model | CH160 |
| P/N | R-CH160-WHNGI0-G-1 |
| Color | White |
| Product Dimensions | 336×200×283.5mm(L×W×H) |
| Net Weight | 3.3Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 Type-C×1 |
| 3.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support |
|
| Radiator Support | None |
| CPU Cooler Height Limit | 172mm |

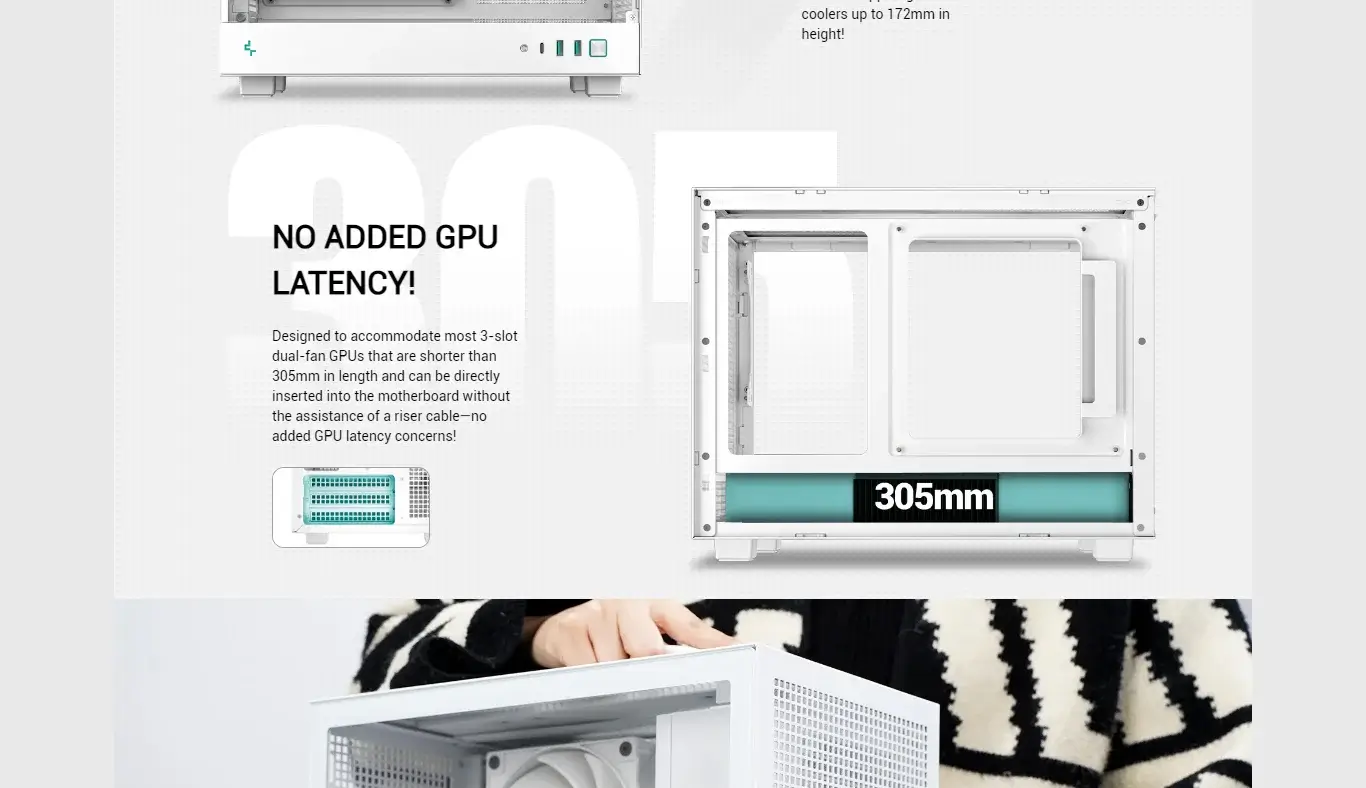

| GPU Size Limit |
Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| Warranty | 1 Year |
| Note |
*** Image use for reference only
*** Features, Price, Specifications are subject to change without notice. |
|
Brand |
Deepcool |
|
Radiator Support |
120mm |
|
Case Type |
Mini Tower |
|
Motherboard Support |
Mini ITX |
|
Color |
White |
|
Warranty |
1 Year |
