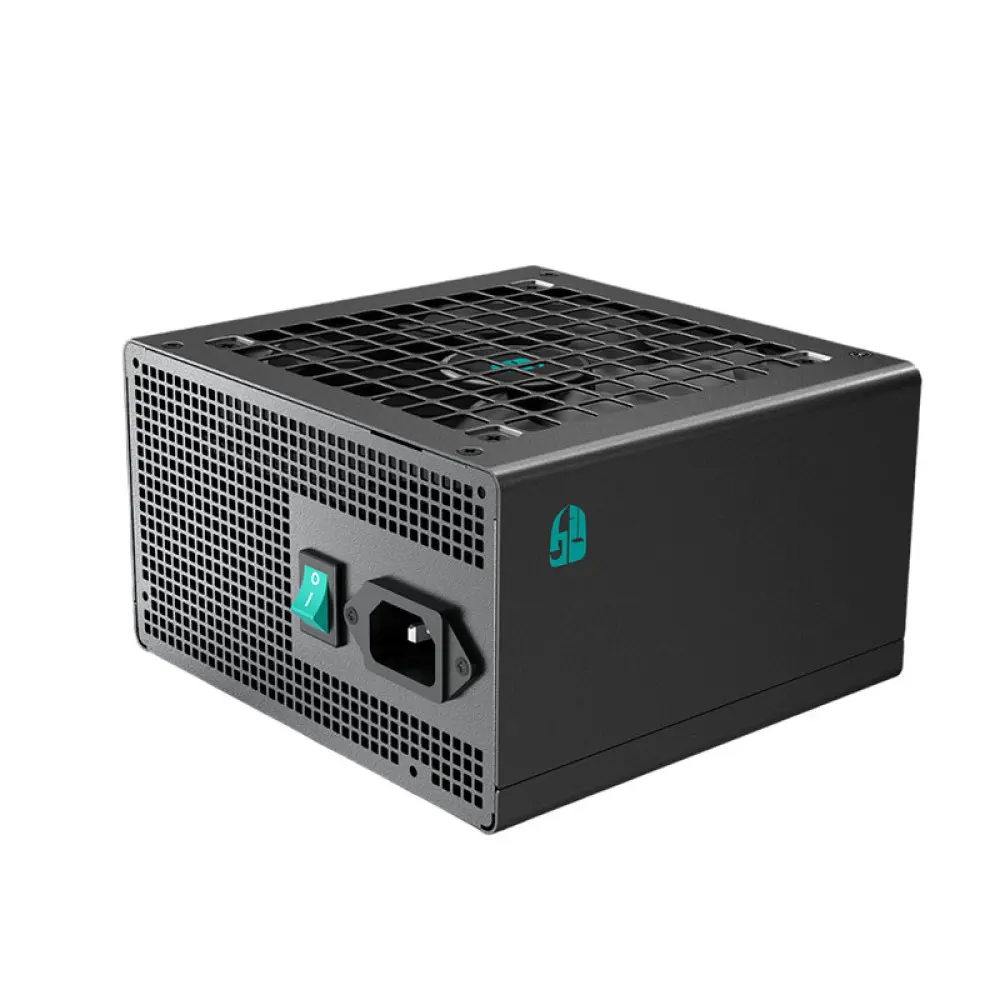

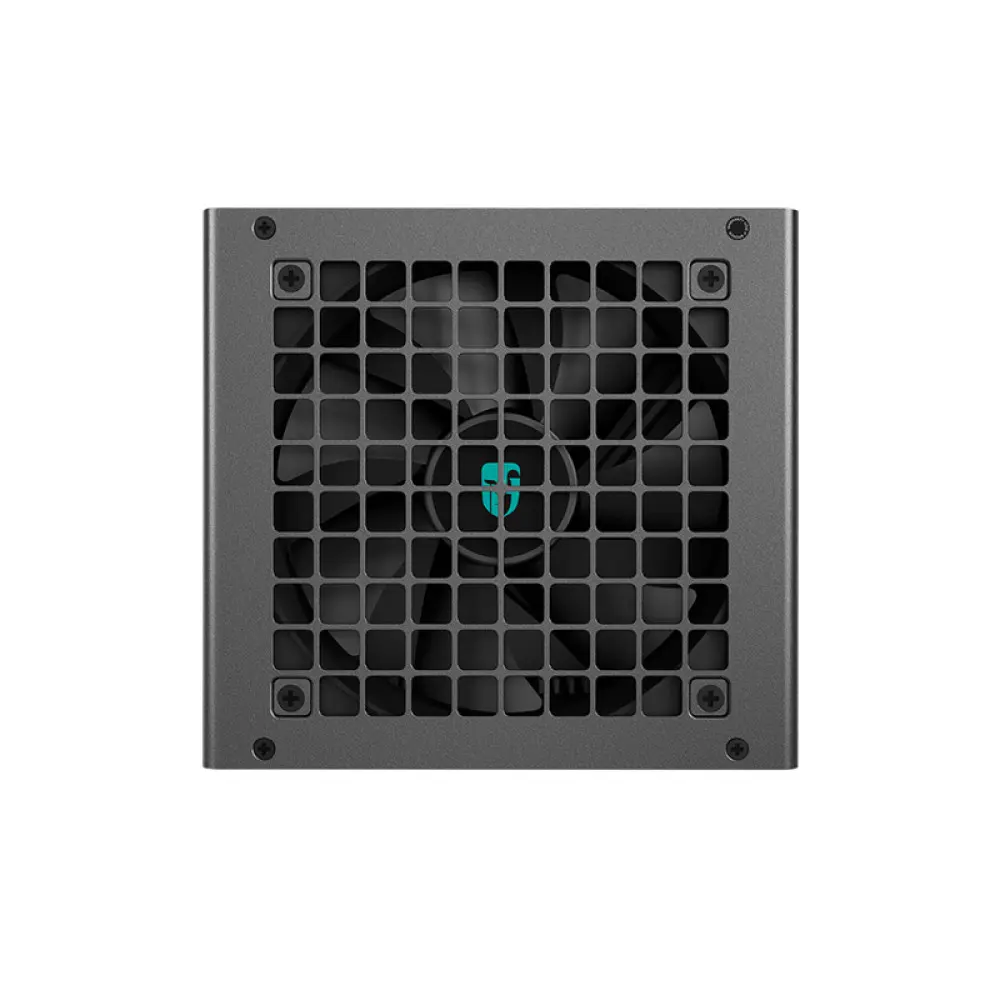

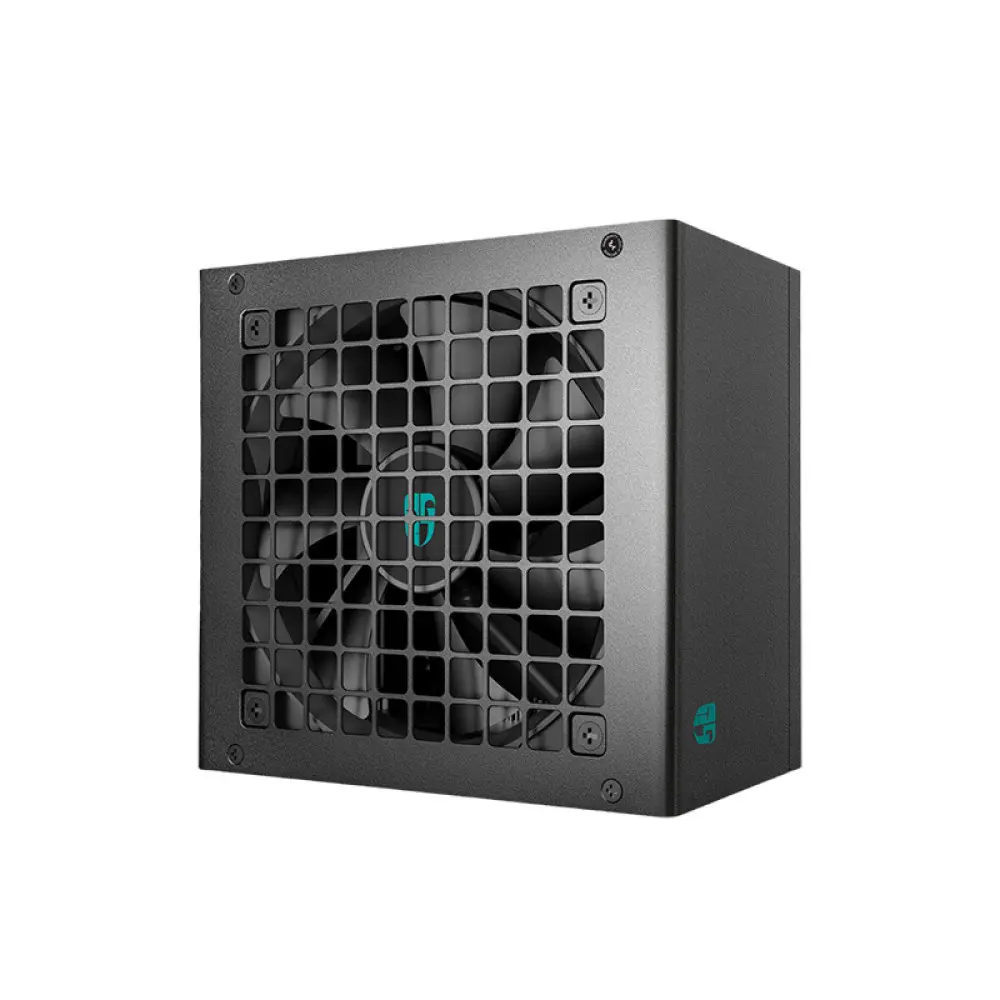

Deepcool Gamer Storm PN850D 850 Watt 80 Plus Gold ATX 3.1 Power Supply
| Specification | |
| Model No. | R-PN850D-FC0B-JGIN-V2 |
| Cables | Main Power Connector (20+4)Pin x 1 – 1PCS
CPU(4+4)Pin x 1 – 2PCS PCI-E(6+2)Pin x 1 – 3PCS 12V-2×6(16Pin) x 1 – 1PCS SATA x 4 + 4Pin Peripheral x 1 – 2PCS |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
