Name: Buy GIGABYTE B760M GAMING X AX DDR5 Motherboard
Brand: Gigabyte
SKU: B760M GAMING X AX
Price: 16850 INR
Availability: OutOfStock

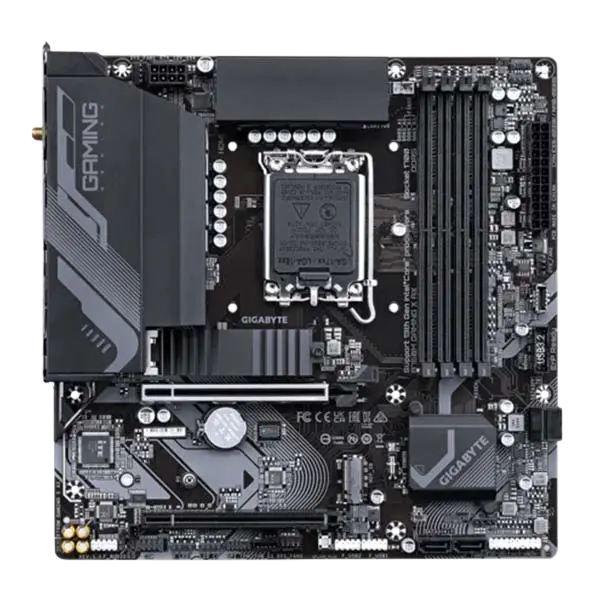

GIGABYTE B760M GAMING X AX DDR5 Motherboard

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：Front USB-C® 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN

GIGABYTE Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Benefit of Wi-Fi 6E

Dedicated spectrum in 6GHz band for less interference
5.5X throughput than 802.11ac 1×1*
4X better network capacity, no traffic jams especially in those dense area with lots of devices
Network efficiency increase for better user experience

Connecting the Future – Front USB3.2 Gen 2 Type-C®

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Brand	Gigabyte
Compaitability	Intel
CPU Socket Type	LGA1700
CPU Type Support	14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset	Intel B760 Express Chipset
Number of Memory Slots	4 x DDR5 DIMM sockets supporting up to 256 GB
Channel Supported	Dual Channel
Maximum Memory Supported	256 GB
Memory Type Supported	DDR5
Expansion Slots	1 x PCI Express x16 slot
Storage Supported	4 x SATA 6Gb/s connectors
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

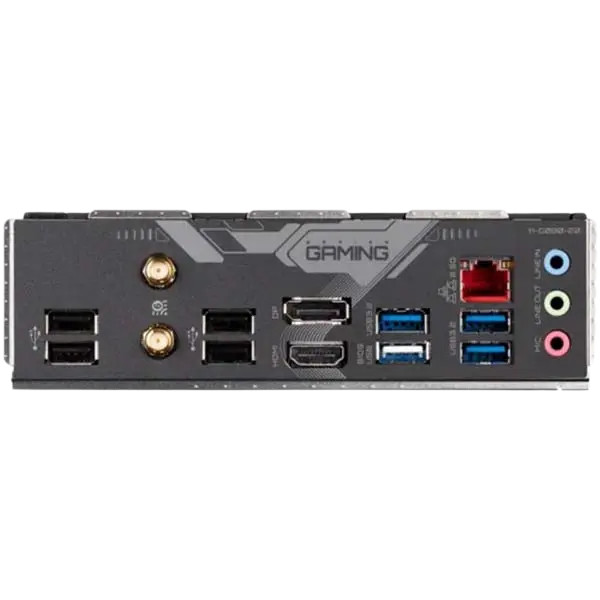

Back Panel Connectors	3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
HDMI	1 x HDMI
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Warranty	3 Years
