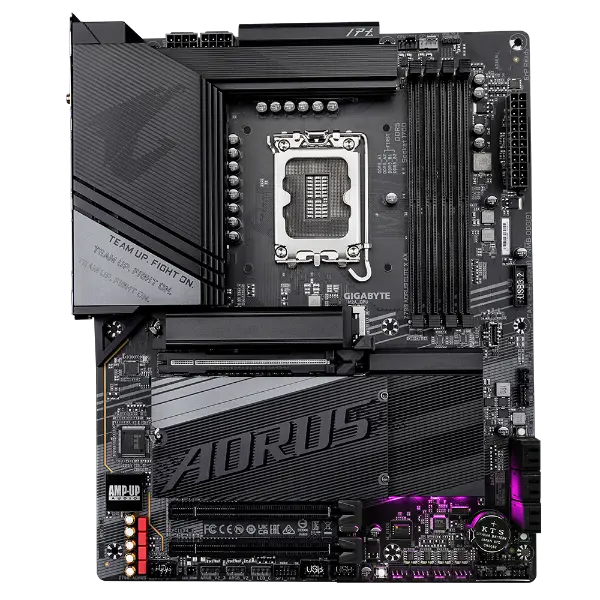

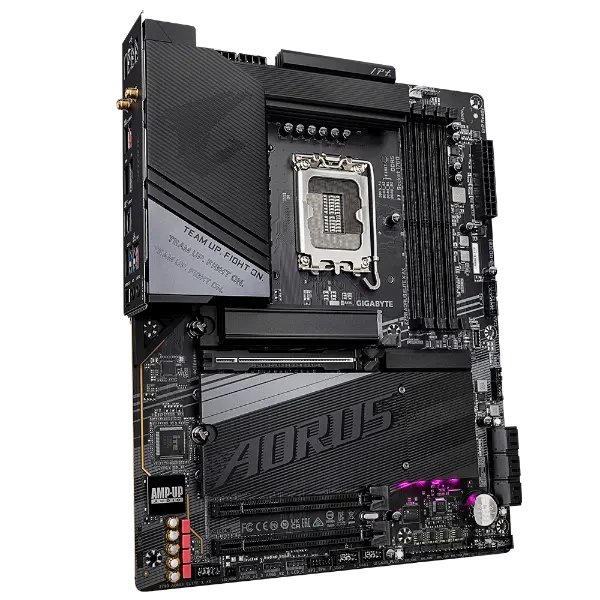

Gigabyte Z790 AORUS ELITE X AX DDR5 Motherboard
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
Xceed in DDR5 performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS ELITE X AX motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
Xtraordinary power delivery
The Z790 AORUS ELITE X AX motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.
Xpress your cool
Every Z790 AORUS ELITE X AX motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
Xplore infinite utilities
The Z790 AORUS ELITE X AX motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership from the community, we now make the next-gen performance more accessible in even more intuitive ways
|
Brand |
Gigabyte |
|
Compaitability |
Intel |
|
CPU Socket Type |
LGA1700 |
|
CPU Type Support |
14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
|
Chipset |
Intel® Z790 Express Chipset |
|
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 192 GB |
|
Channel Supported |
Dual Channel |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|

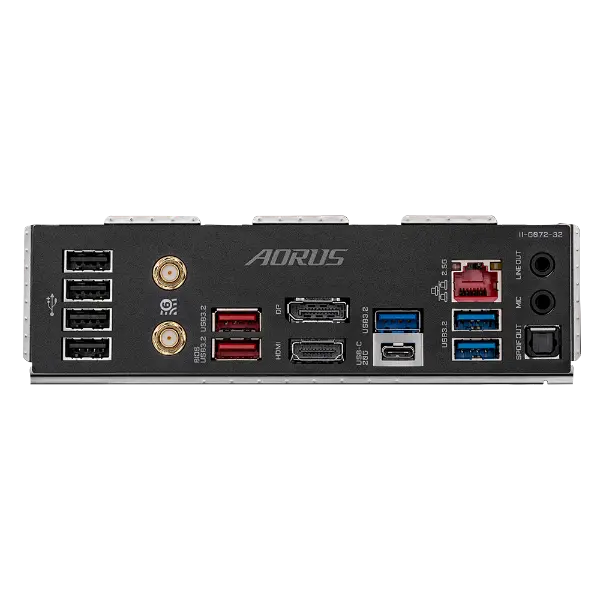

Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) jk 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
Maximum Memory Supported |
192 GB |
|
Memory Type Supported |
DDR5 |
|
Expansion Slots |
1 x PCI Express x16 slot |
|
Storage Supported |
6 x SATA 6Gb/s connectors |
|
HDMI |
1 x HDMI |
|
Operating system |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
Form Factor |
ATX |
|
Warranty |
3 Years |
