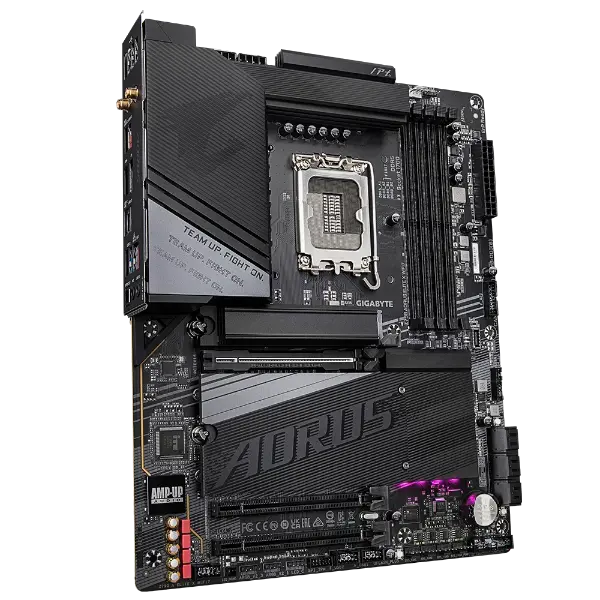

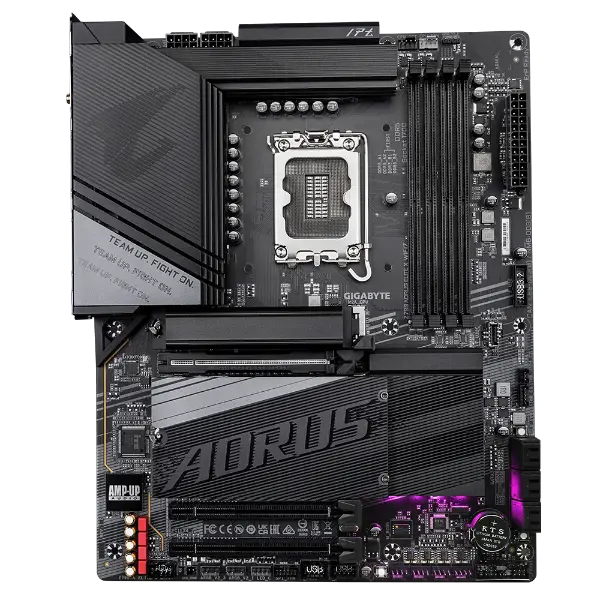

Gigabyte Z790 AORUS ELITE X WIFI7 DDR5 Motherboard
Gen Designed for 14th Gen
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
Xceed in DDR5
performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
The Z790 AORUS MASTER X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads
Xpress your cool
Every Z790 AORUS MASTER X motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast
Xceed in DDR5 performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS ELITE X WIFI7 motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
Brand |
Gigabyte |
Compaitability |
Intel |
CPU Socket Type |
LGA1700 |
CPU Type Support |
14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
Chipset |
Intel® Z790 Express Chipset |
Number of Memory Slots |
4 x DDR5 DIMM sockets supporting up to 192 GB |
Channel Supported |
Dual Channel |
I/O Controller |
iTE® I/O Controller Chip |
Maximum Memory Supported |
192 GB |
Memory Type Supported |
DDR5 |
Expansion Slots |
1 x PCI Express x16 slot |
Storage Supported |
4 x SATA 6Gb/s |
HDMI |
1 x HDMI |
Form Factor |
E-ATX |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |

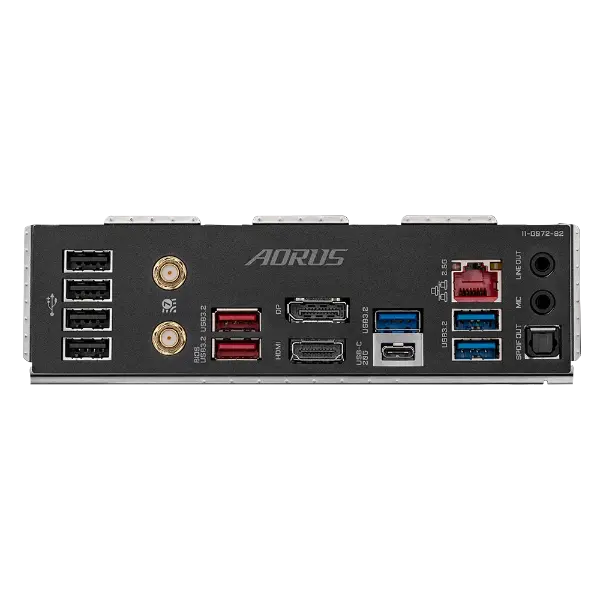

Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) jk 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
Operating system |
Support for Windows 11 64-bit |
Warranty |
3 Years |
