Intel NUC12DCMI9 – DRAGON CANYON NUC i9-12900 Processor

Intel NUC12DCMI9 – DRAGON CANYON NUC i9-12900 Processor

Small Size

Measuring just 14.1 x 7.4 x 4.7″, the Dragon Canyon NUC 12 system is small enough to carry to competitions, parties, and other events.

Big Performance

The 12th generation Intel Core i9-12900 16-core processor has a 5.1 GHz Max Turbo Boost 3.0 frequency and includes eight Performance cores that drive demanding applications and games while the eight Efficiency cores handle background tasks and multitasking. You can customize the system’s performance by installing up to 64GB of 3200 MHz DDR4 memory and up to three M.2 NVMe PCIe 4.0 SSDs. A 650W 80 Plus Gold power supply is included.

Full-Size Graphics Card Support

The NUC 12 Extreme supports up to a 12″ double-width dedicated graphics card with its PCIe 5.0 x16 slot.

Efficient Cooling

Three 92mm fans help to provide efficient airflow to the system for optimal performance.

High-Speed Network

The built-in Wi-Fi 6E connectivity allows you to transfer up to 2.4 Gb/s over the 2.4 GHz, 5 GHz, and less congested 6 GHz bands, helping to deliver smooth online gaming and 4K video streaming experience. One 10G Ethernet port is also available alongside a 2.5G Ethernet port for high-speed wired connections to compatible devices.

Exceptional Connectivity

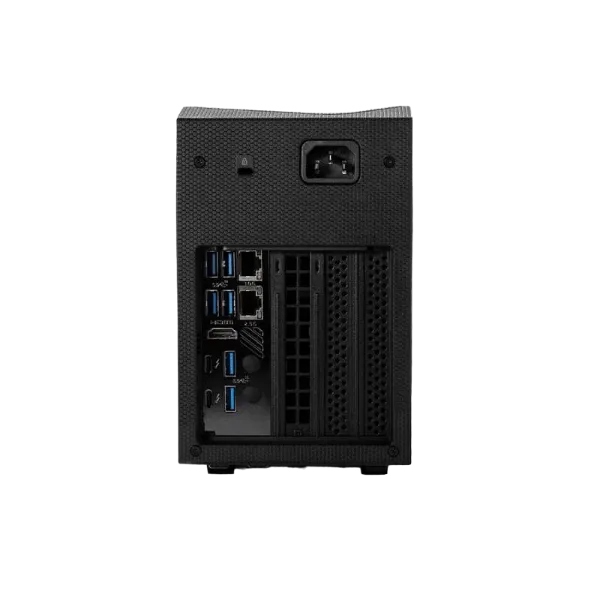

Connect compatible peripherals to the two Thunderbolt 4 ports. There are also seven 10 Gb/s USB 3.2 Gen 2 Type-A ports in addition to a front-facing USB 3.2 Gen 2 Type-C port.

Thunderbolt 4

Thunderbolt 4 is a hardware interface that utilizes the reversible USB Type-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect either one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.

Turn It Up

Immerse yourself in music, movies, and games with support for a 7.1 sound system. You can connect a headset to the 3.5mm audio jack or pair the system with a wireless Bluetooth device for listening privacy.

Personal Style

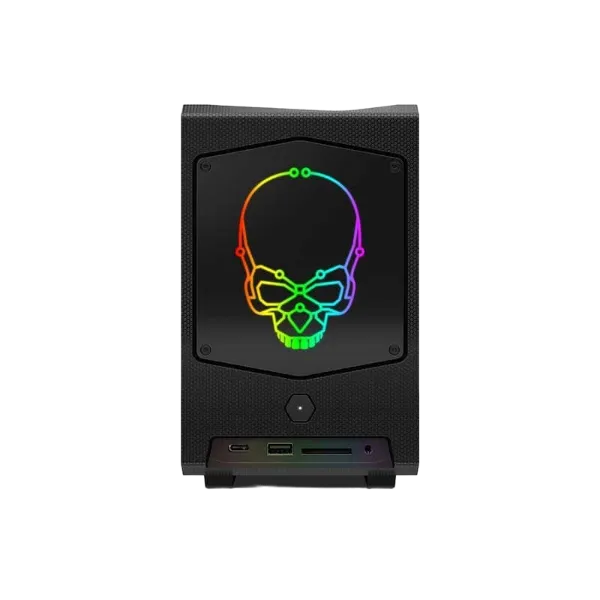

Customize the RGB underglow lighting and the replaceable front panel logo to match your mood, game, and style. Intel DRAGON CANYON
