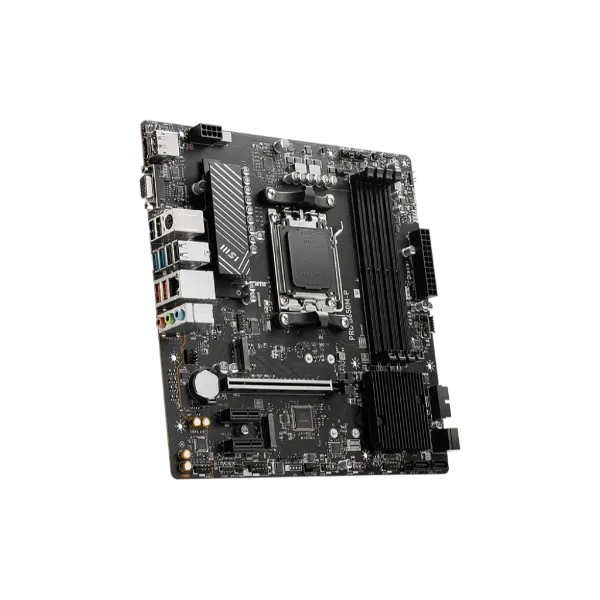

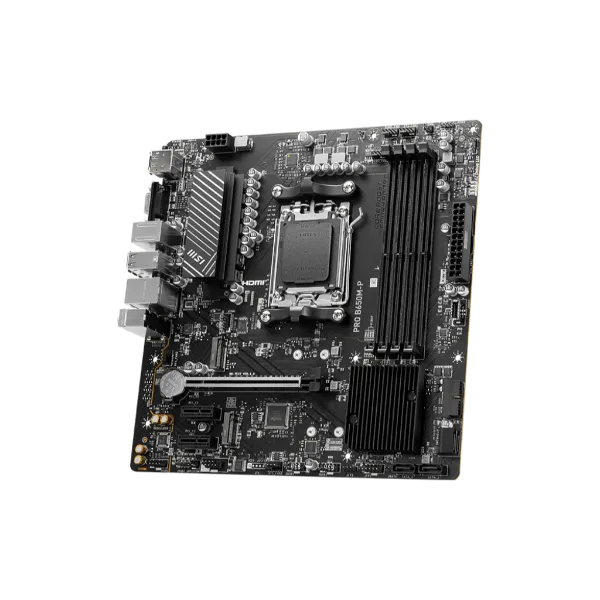

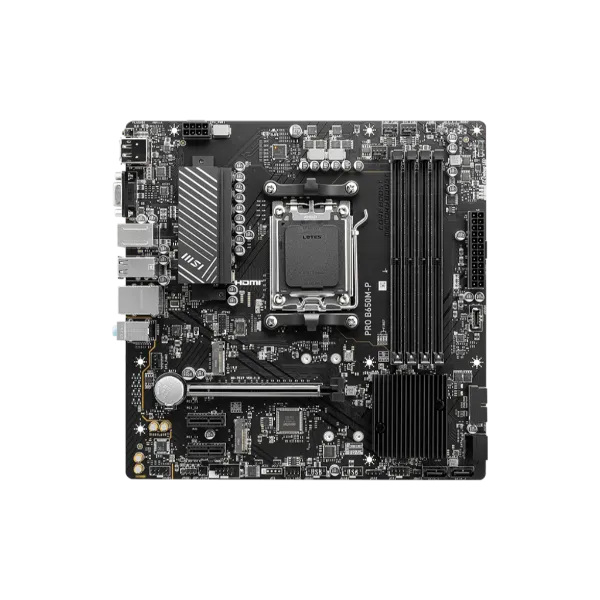

MSI PRO B650M-A WIFI DDR5 Motherboard
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Brand |
MSI |
Form Factor |
mATX |
Compaitability |
AMD |
CPU Type Support |
Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
Chipset |
AMD B650 |
Number of Memory Slots |
4x DDR5, 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
Maximum Memory Supported |
256 GB |
Memory Type Supported |
DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
Channel Supported |
Dual Channel |
Expansion Slots |
1x PCI-E x1 slot |
Storage Supported |
2x M.2 slot, 4x SATA 6G |
USB Ports |
1x USB 3.2 Gen1 Type C (Front), 4x USB 2.0 |
HDMI |
1 x HDMI |
LED Lighting |
RGB |
Audio Type Supported |
7.1-Channel High Definition Audio |
INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
BACK PANEL PORTS |
1 USB 3.2 Gen 2 10Gbps (Type-A) 2 USB 3.2 Gen 1 5Gbps (Type-A) 3 2.5G LAN 4 WIFI / BLUETOOTH 5 AUDIO CONNECTOR 6 FLASH BIOS BUTTON 7 DISPLAY PORT 8 HDMI 9 USB 3.2 GEN 2 10Gbps (types-A) |
Warranty |
3 Years |
