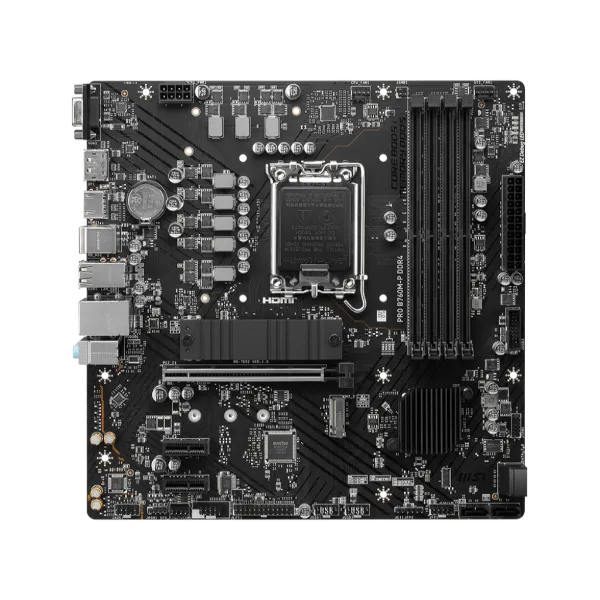

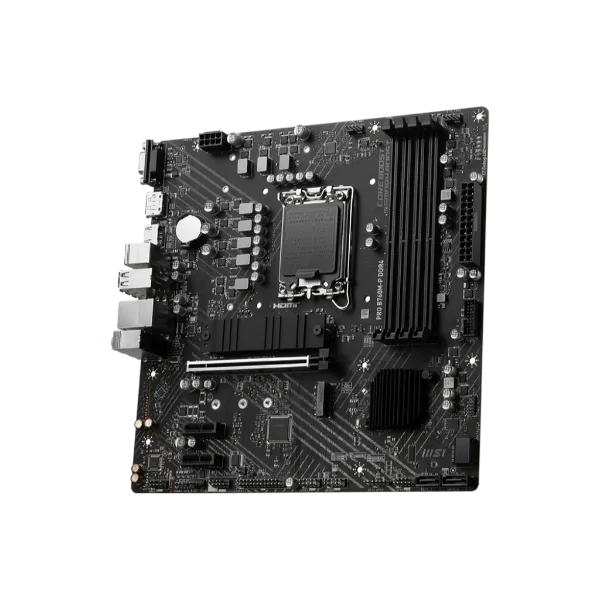

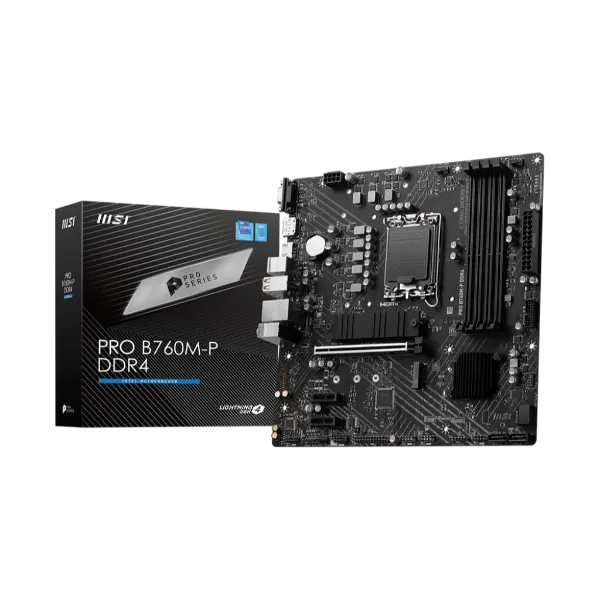

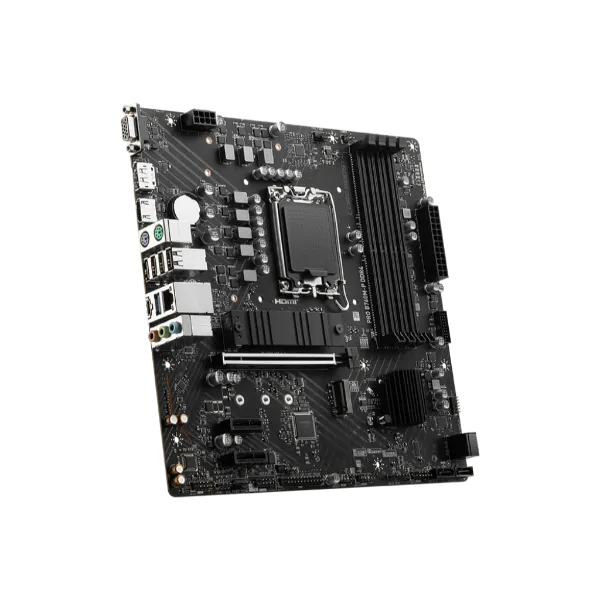

MSI PRO B760M-P DDR4 Motherboard
M.2 Shield Frozr:
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink:
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 4 PCI-E:
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s. Secure to the MSI PRO B760M-P DDR4 Motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DDR4 MEMORY SOLUTION
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
Brand |
MSI |
CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
Form Factor |
mATX |
Compaitability |
Intel |
CPU Type Support |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
Chipset |
Intel B760 |
Number of Memory Slots |
4x DDR4, Maximum Memory Capacity 128GB |
Maximum Memory Supported |
128GB |
Memory Type Supported |
Memory Support 4800 |
Channel Supported |
Dual Channel |
Expansion Slots |
1x PCI-E x1 slot, 2x PCI-E x16 slot |
Storage Supported |
2x M.2 slot, 4x SATA 6G |
USB Ports |
1x USB 3.2 Gen1 Type C (Front), 4x USB 2.0 |
HDMI |
1 x HDMI |
LED Lighting |
RGB |
Audio Type Supported |
7.1-Channel High Definition Audio |
INTERNAL I/O |
x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
BACK PANEL PORTS |
VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
Warranty |
3 Years |
