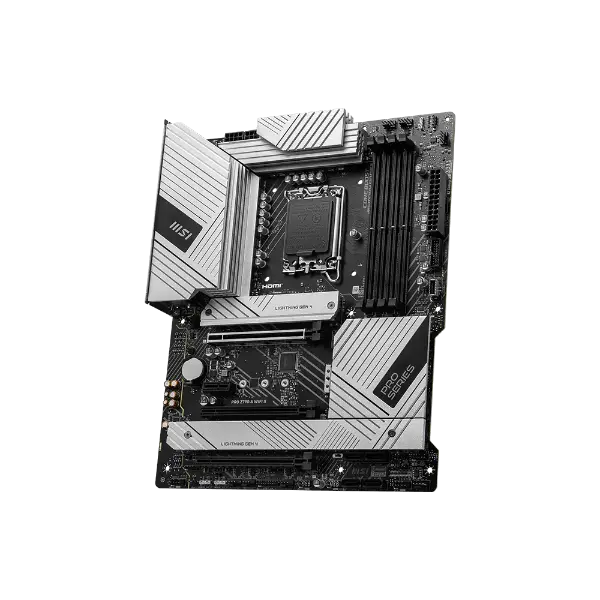

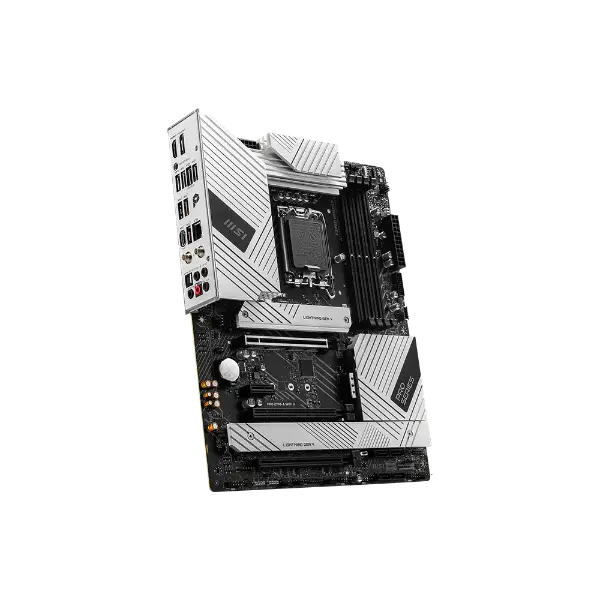

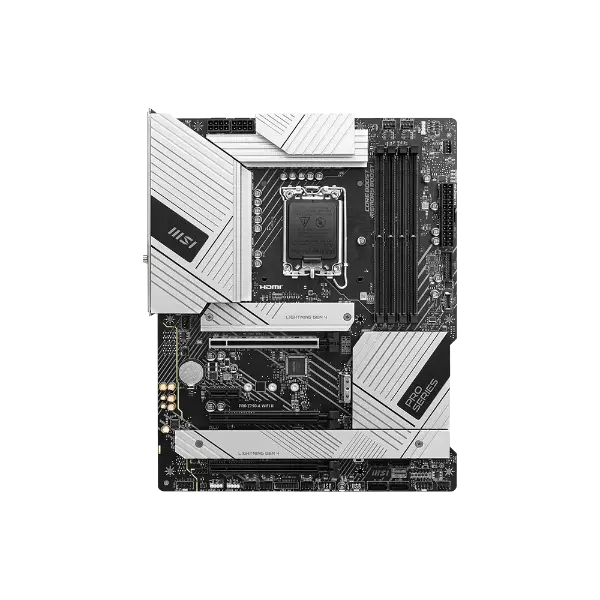

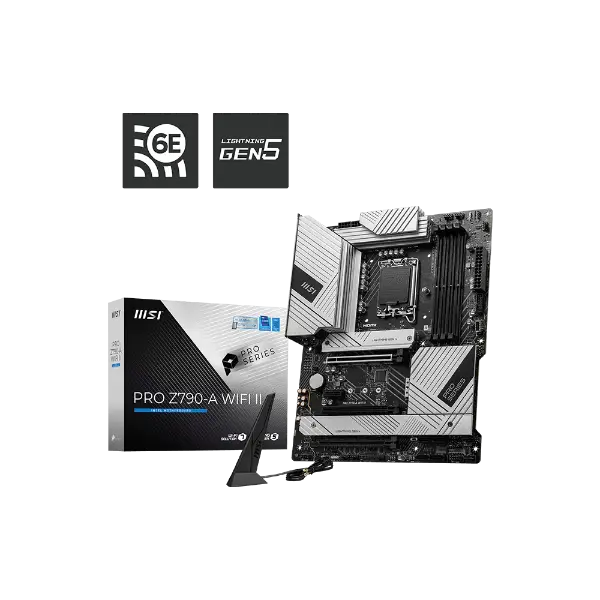

MSI PRO Z790-A WIFI II DDR5 MOTHERBOARD
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
EZ Antenna
EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Brand | MSI |
Opreating system | Support for Windows® 11 64-bit |
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 |
CPU Socket Type | LGA 1700 |
CPU Type Support | Windows 10 build 21H1 and Windows 11 |
Compaitability | Intel |
Chipset | Intel Z790 |
Number of Memory Slots | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
Maximum Memory Supported | 256GB |
Memory Type Supported | 1R 5333MHz |
Channel Supported | Dual Channel |
Expansion Slots | 3x PCIe x16 slots |
Storage Supported | 4x M.2 slot |
USB Ports | Type A |
Audio Type Supported | 7.1-Channel High Definition Audio |
HDMI | 1 x HDMI |
Form Factor | Micro ATX |
LED Lighting | RGB |
INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
