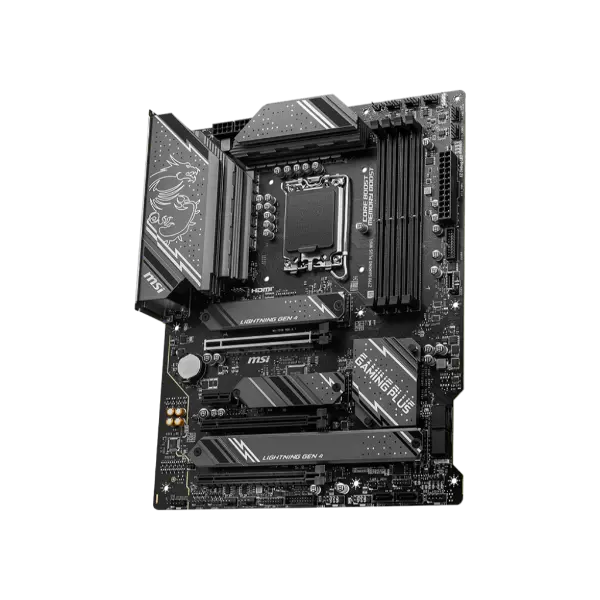

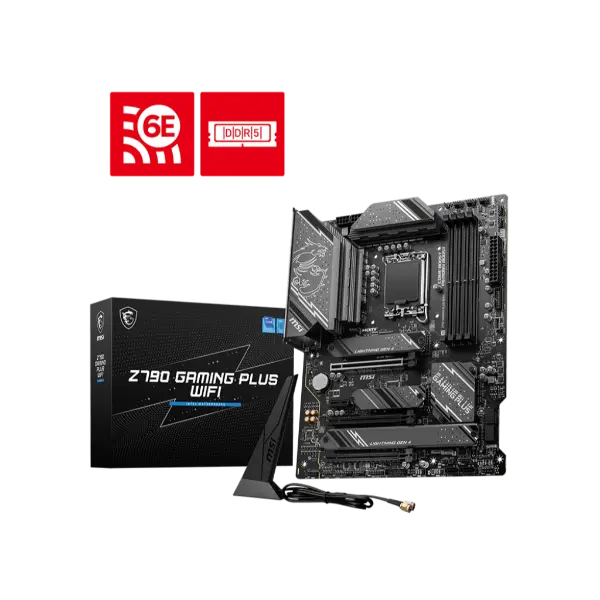

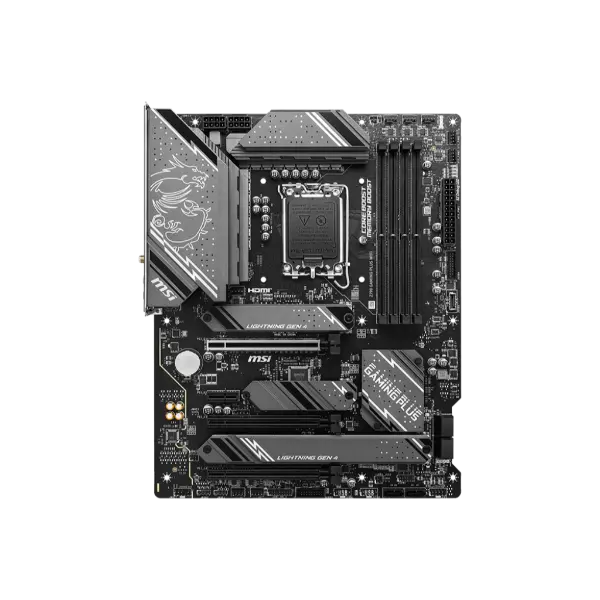

MSI Z790 GAMING PLUS WIFI DDR5 Motherboard
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
14+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 14+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, Z790 GAMING PRO WIFI is ready for the challenge of high-end processors
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
FAST AND FUTURE-READY STORAGE
Z790 GAMING WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, Z790 GAMING PRO WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
The MSI Z790 GAMING PLUS WIFI DDR5 Motherboard is an excellent choice for gamers and PC enthusiasts seeking high performance and advanced features. It supports the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors with its LGA1700 socket. This motherboard is designed to handle demanding tasks with ease, thanks to its support for DDR5 memory, allowing speeds up to 7200+ MHz (OC) and a maximum capacity of 256 GB12.
Connectivity is a strong point for this motherboard, featuring Wi-Fi 6E and a 2.5G LAN for fast and reliable internet connections. It also supports PCIe 5.0, providing the latest in high-speed data transfer capabilities. For storage, it offers four M.2 slots and six SATA ports, ensuring ample space for all your storage needs.
Brand |
MSI |
CPU Socket Type |
14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
Chipset |
Intel Z790 |
Number of Memory Slots |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
Maximum Memory Supported |
256GB |
Channel Supported |
Dual Channel |
Expansion Slots |
3x PCI-E x16 slot |
Storage Supported |
6x SATA 6G port |
HDMI |
1 x HDMI |
INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |

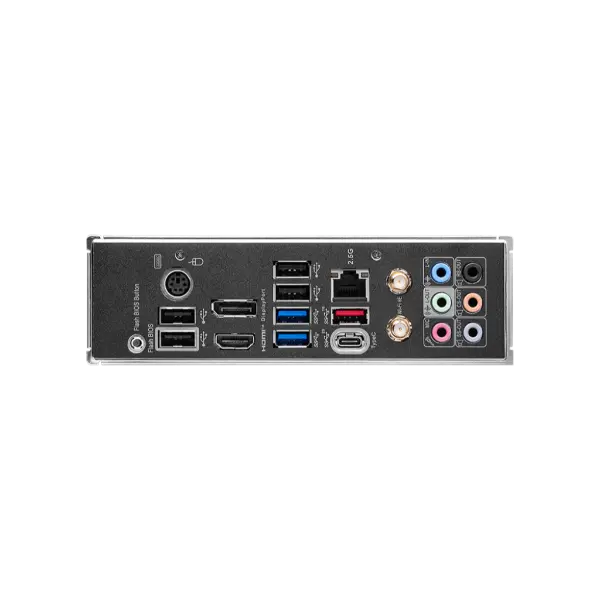

BACK PANEL PORTS |
Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI™ 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
OS Supported |
Windows® 10 64-bit, Windows® 11 64-bit |
Warranty |
3 Years |
